Orange 2017 Clockwork 100 29er

Our Price From £1,095.00*

*exact price is dependent on options selected below

Add this product to your basket or calculate finance costs...

Total: £1,095.00

0% Finance Calculator

This item qualifies for FREE DELIVERY!

*Please be aware that some product options can incur an additional cost. Where applicable, these costs are stated alongside the product option.

For detailed information about frame sizes – please view the frame size guide at the bottom of this page.

Description: Orange Clockwork 100 29er 2017 Hardtail Mountain Bike

The 29er version of the Orange Clockwork just keeps us coming back for more. Even more so for 2017 as we've lengthend the top tube and shortend the stem for improved rider weight distribution. It will roll at speed all day long, and take on gnarly descents with a confidence most would baulk at.

The Orange Clockwork 100 is a sharp-looking, smooth-rolling hardtail that begs to be ridden hard but is more than happy cruising if that takes your fancy. The frame is ready for any future upgrades you might have in store for it. With geometry designed around a 100mm travel fork and a mission to extract the most smiles out of your trail-time the Clockwork is the product of what we do best, making bikes that make you want to ride.

Sunset offers the 2017 Orange Clockwork 100 29er hardtail mountain bike with up to 24 months 0% finance and free delivery.

The 2017 Orange CLOCKWORK range: Clockwork 120 Frame | Clockwork Evo Frame | Clockwork 100 29er | Clockwork 120 27.5 | Clockwork 100 S 29er | Clockwork 120 S 27.5 | Clockwork Evo Pro 27.5 | Clockwork Evo RS 27.5

Full Specification: Orange Clockwork 100 29er 2017 Hardtail Mountain Bike

Frame & Fork
Tubeset 6061-T6 Custom Butted OS Aluminium Tube
Rear Axle 135 QR
Fork RockShox Recon Silver RL 100 Tapered Steerer Maxle
Rear Shock N/A
Headset FPD 44mm
Drivetrain
Crankset Shimano Deore Double 38-26t
Front Mech Shimano Deore Double
Rear Mech Shimano Deore Shadow +
Cassette Shimano HG-50 10spd 11-36T
Shifters Shimano Deore
Bottom Bracket Shimano Hollow Tech II
Chain KMC X10
Wheels & Tyres
Wheelset Formula 15mm/Shimano 475 + Alex MD19
Tyres Continental Mountain King 2.2
Braking
Brakes Shimano M506 160mm/160mm
Finishing Kit
Stem Strange Stalk
Handlebar Strange 0.5" Riser 750mm Wide
Grips Strange Lock-On
Seatpost Strange Post 400mm
Saddle Kore Durox IE
Seat Clamp Strange QR
Pedals Kore Rivera Thermo

Size Guide: Orange Clockwork 100 29er 2017 Hardtail Mountain Bike

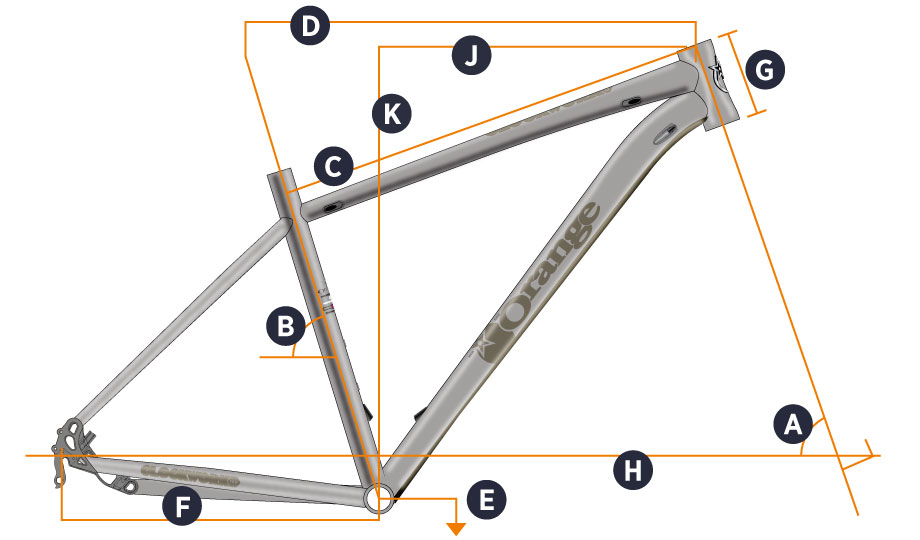

Orange 2017 Clockwork 100 Frame Geometry
Frame Size Medium Large X Large
Rider Height Guidance* 5'6" to 5'10" 5'9" to 6'1" 6'0" to 6'5"
Seat Tube 17" 19" 21"
A. Head Angle 70° 70° 70°
B. Seat Angle 73° 73° 73°
C. Top Tube 599 614 633
D. Effective TT 620 640 660
E. BB Height (axle diff) -60 -60 -60
F. Chainstay 450 450 450
G. Head Tube 110 120 130
H. Wheelbase 1118 1139 1159
J. Reach 427 444 461
K. Stack 630 639 650
Stem Length 50 50 50
Standover 770 790 802
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from axle.
*This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you.
