Orange 2017 Clockwork 120 S 27.5

Orange 2017 Clockwork 120 S 27.5

Add this product to your basket or calculate finance costs...

Frame Size: Small MPN: B17CL120S-S
Sale Price £1,160.00 (Save 15%) Regular Price £1,370.00
Frame Size: Medium MPN: B17CL120S-M
Sale Price £1,160.00 (Save 15%) Regular Price £1,370.00
Frame Size: Large MPN: B17CL120S-L
Sale Price £1,160.00 (Save 15%) Regular Price £1,370.00
Frame Size: X Large MPN: B17CL120S-XL
Sale Price £1,160.00 (Save 15%) Regular Price £1,370.00

Description: Orange Clockwork 120 S 27.5 2017 Hardtail Mountain Bike

With its 27.5inch wheels, 120mm of travel and singletrack honed geometry, the Orange Clockwork 120 is the choice for those looking for a potent blend of quick handling and rapid acceleration. For 2017 the front triangle gains a little reach and a shorter stem brings the bar to the sweet spot of perfect trail control. With the riders weight nudged a degree forward the Orange Clockwork 120 brings even more confident handling than ever before into the mix. It's a bike that alive when fired down twisty trails but is just as happy when you want to take it easy and enjoy the view. A light but stiff frame coupled with 27.5inch wheels makes for a responsive and engaging ride, whether that’s a quick blast round the local woods or epic voyages into the wilds.

Sunset offers the 2017 Orange Clockwork 120 S 27.5 hardtail mountain bike with up to 24 months 0% finance and free delivery.

Full Specification: Orange Clockwork 120 S 27.5 2017 Hardtail Mountain Bike

Frame & Fork
Tubeset 6061-T6 Custom Butted OS Aluminium Tube
Rear Axle 135 QR
Fork RockShox Reba RL 120 Tapered Steerer Maxle
Rear Shock N/A
Headset FPD 44mm
Drivetrain
Crankset Race Face Ride Single 32t
Front Mech Top Guide Chain Device
Rear Mech Shimano SLX Shadow + 11spd
Cassette SRAM PG1130 11-42 11spd
Shifters Shimano SLX 11spd
Bottom Bracket Race Face
Chain SRAM PC1110 11spd
Wheels & Tyres
Wheelset Formula + Alex MD19
Tyres WTB Trail Boss/Riddler
Braking
Brakes Shimano M506 180mm/160mm
Finishing Kit
Stem Race Face Ride M35
Handlebar Race Face Ride Riser 760mm M35
Grips Strange Lock-On
Seatpost Race Face Ride
Saddle Kore Durox IE
Seat Clamp Strange QR
Pedals Kore Rivera Thermo

Size Guide: Orange Clockwork 120 S 27.5 2017 Hardtail Mountain Bike

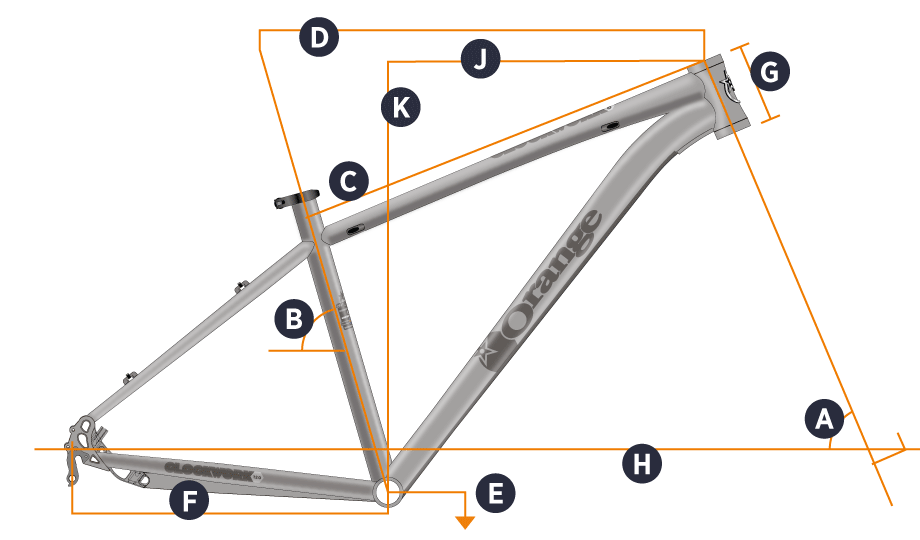

Orange 2017 Clockwork 120 Frame Geometry
Frame Size Small Medium Large X Large
Rider Height Guidance* 5'4" to 5'7" 5'6" to 5'10" 5'9" to 6'1" 6'0" to 6'5"
Seat Tube 15" 17" 19" 21"
A. Head Angle 67° 67° 67° 67°
B. Seat Angle 74° 74° 74° 74°
C. Top Tube 590 603 619 639
D. Effective TT 600 620 640 660
E. BB Height (axle diff) -48 -48 -48 -48
E. BB Height (from ground) 301 301 301 301
F. Chainstay 440 440 440 440
G. Head Tube 110 110 120 130
H. Wheelbase 1108 1128 1149 1170
J. Reach 425 445 462 483
K. Stack 608 608 618 632
Stem Length 50 50 50 50
Standover 725 770 790 802
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from axle.
*This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you.
