Orange 2017 Clockwork Evo Frame 27.5

Orange 2017 Clockwork Evo Frame 27.5

Description: Orange Clockwork Evo 2017 Frame 27.5

The new Orange Clockwork Evo bridges the gap between the Clockwork 120 and the Crush, firmly hitting a sweet spot for serious minded riders. While we would never say a Clockwork 120 was sedate, the Crush is an aggressive head-banger. The Clockwork Evo is the hardtail to bridge that gap – fast and furious. Trail centre hardtail, or out and out explorer, it’s up to you. But however you choose the ride the Orange Clockwork Evo it will be a more than worthy trail buddy.

Sunset offers the 2017 Orange Clockwork Evo 27.5 hardtail mountain bike frame with up to 24 months 0% finance and free delivery.

Size Guide: Orange Clockwork Evo 2017 Frame 27.5

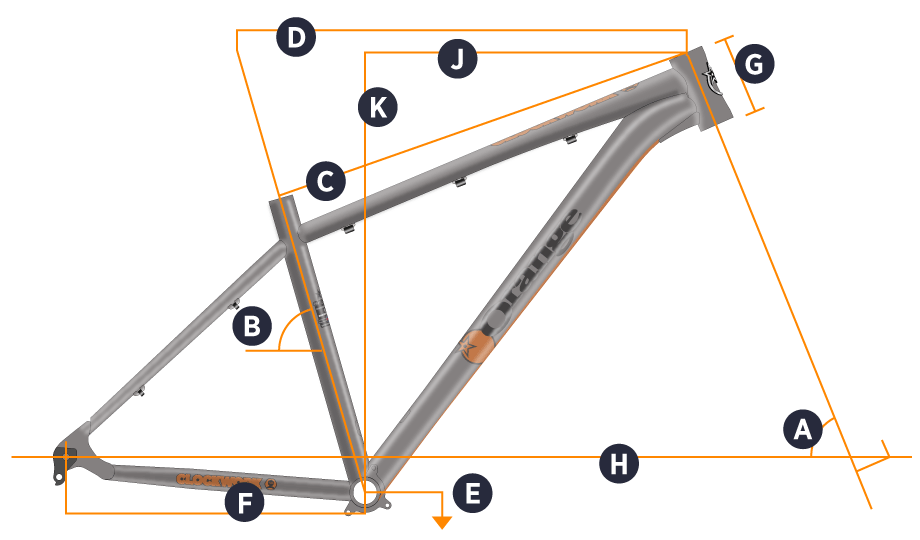

Orange 2017 Clockwork EVO Frame Geometry
Frame Size Small Medium Large X Large
Rider Height Guidance* 5'4" to 5'7" 5'6" to 5'10" 5'9" to 6'1" 6'0" to 6'5"
Seat Tube 16" 17" 18" 20"
A. Head Angle 66° 66° 66° 66°
B. Seat Angle 74° 74° 74° 74°
C. Top Tube 597 614 630 650
D. Effective TT 610 630 650 670
E. BB Height (axle diff) -50 -50 -50 -50
E. BB Height (from ground) 306 306 306 306
F. Chainstay 425 425 425 425
G. Head Tube 100 110 130 120
H. Wheelbase 1156 1178 1198 1224
J. Reach 445 453 473 491
K. Stack 608 618 618 629
Stem Length 50 50 50 50
Standover 730 746 763 805
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from axle.
*This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you.
