Mondraker 2017 Dune 27.5

Mondraker 2017 Dune 27.5
Mondraker 2017 Dune 27.5
Mondraker 2017 Dune 27.5

Add this product to your basket or calculate finance costs...

Frame Size: Small MPN: MB.010.17250
Sale Price £2,699.00 (Save 15%) Regular Price £3,195.00
Frame Size: Medium MPN: MB.010.17251
Sale Price £2,699.00 (Save 15%) Regular Price £3,195.00
Frame Size: Large MPN: MB.010.17252
Sale Price £2,699.00 (Save 15%) Regular Price £3,195.00
Frame Size: X Large MPN: MB.010.17253
Sale Price £2,699.00 (Save 15%) Regular Price £3,195.00

Description: Mondraker Dune 27.5 2017 Enduro MTB

Dune is the ultimate Enduro racing bike with the latest Mondraker key technologies. It is the new best selling platform, definitely the most desired bike into our current portfolio and for sure the personal bike of half the Mondraker staff.

Sunset offers the 2017 Mondraker Dune 27.5 full suspension enduro bike with up to 36 months 0% finance and free delivery.

The 2017 Mondraker DUNE range: Dune | Dune XR | Dune Carbon R | Dune Carbon RR | Dune Carbon XR

Full Specification: Mondraker Dune 27.5 2017 Enduro MTB

Frame Dune 27.5 Stealth Zero Suspension System FG 160mm
Colour Black / White / Turquoise
Sizes S / M / L / XL
Rear Shock RockShox Monarch Plus R 215x63.5mm
Fork Rockshox Yari 27.5 RC Boost tapered 160mm
Headset Fsa No.57 tapered 1-1/8″->1/5″
Stem Onoff Stoic FG 30mm
Handlebar Mondraker custom design 1.0 780mm
Grips Onoff Diamond 1lock-on
Seatpost Onoff Notion 0-R 31.6
Saddle SDG Fly MTN
Front Brake Sram Level T 180mm
Rear Brake Sram Level T 180mm
Levers Sram Level T
Rims MDK-EP1 27.5 TLR Boost wheelset
Spokes CN stainless
Front Hub MDK Disc Pro 15x110mm
Rear Hub MDK Disc Pro 12x148mm
Tires Maxxis Ardent 27.5x2.40 wire
Crankset Sram NX1 DM32t Boost
Bottom Bracket Sram GXP XR 73mm
Pedals /
Chain Sram PC-1110 11s
Front Derailleur /
Rear Derailleur Sram NX X-Horizon Type3 11s
Shifters SRAM NX1 Trigger right 11s
Cassette Sram PG-1130 11-42t 11s
Weight w/o Pedals 13.8 kg

Size Guide: Mondraker Dune 27.5 2017 Enduro MTB

Mondraker 2017 Dune 27.5 Size Chart

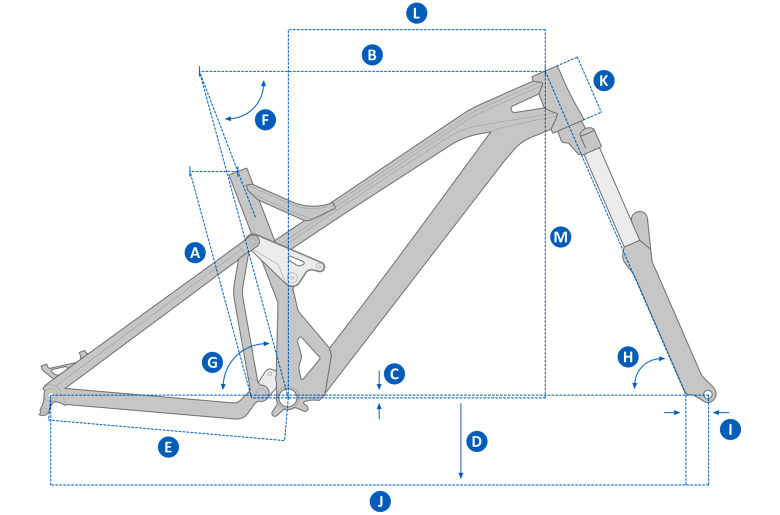

Mondraker 2017 Dune 27.5 Frame Geometry
  FRAME SIZE S M L XL
A Seat Tube Length 380mm 420mm 470mm 510mm
B Top Tube Length 608mm 633mm 656mm 678mm
C Bottom Bracket Drop -5mm -5mm -5mm -5mm
D Bottom Bracket Height 340mm 340mm 340mm 340mm
E Chainstay Length 432mm 432mm 432mm 432mm
F Seat Tube Angle, Actual 69º 69º 69º 69º
G Seat Tube Angle, Effective 75º 75º 75º 75º
H Head Tube Angle 66º 66º 66º 66º
I Fork Offset 44mm 44mm 44mm 44mm
J Wheelbase 1190mm 1215mm 1240mm 1264mm
K Head Tube Length 110mm 110mm 120mm 130mm
L Reach 450mm 475mm 495mm 515mm
M Stack 590mm 590mm 599mm 608mm
