Mondraker 2017 Crafty R+ 27.5+

Mondraker 2017 Crafty R+ 27.5+
Mondraker 2017 Crafty R+ 27.5+
Mondraker 2017 Crafty R+ 27.5+

Add this product to your basket or calculate finance costs...

Frame Size: Small MPN: MB.010.17085
Our Price £3,195.00
Frame Size: Medium MPN: MB.010.17086
Our Price £3,195.00
Frame Size: Large MPN: MB.010.17087
Our Price £3,195.00
Frame Size: X Large MPN: MB.010.17088
Our Price £3,195.00

Description: Mondraker Crafty R+ 27.5+ 2017 Full Suspension MTB

The Mondraker Crafty offers the whole Foxy spirit on 27.5"+ concept wheels. It is new, more enjoyable, more capable, more grip everywhere, reliable and above all: really fun.

Sunset Cycles offers the 2017 Mondraker Crafty R+ 27.5+ full suspension mountain bike with up to 36 months 0% finance and free delivery.

The 2017 Mondraker CRAFTY range: Crafty R+ | Crafty XR+

Full Specification: Mondraker Crafty R+ 27.5+ 2017 Full Suspension MTB

Frame Crafty 27.5+ Stealth Zero Suspension System FG 140mm
Colour Vibrant Blue
Sizes S / M / L / XL
Rear Shock RockShox Monarch Plus RC3 Solo Air 200x57mm
Fork Rockshox Yari 27.5+ RC Boost tapered 140mm
Headset FSA No.57 ACB Bearings integrated tapered 1-1/8″->1/5″
Stem Onoff Stoic FG 30mm
Handlebar Mondraker custom design 0.5 760mm
Grips Onoff Diamond 1lock-on
Seatpost Onoff Notion 0-R 31.6mm 400mm
Saddle Mondraker Crafty+ custom design
Front Brake Sram Level T 180mm
Rear Brake Sram Level T 180mm
Levers Sram Level T
Rims MDK-EP1 40 27.5+ TLR wheelset
Spokes CN stainless
Front Hub MDK Disc Pro 15X110mm
Rear Hub MDK Disc Pro 12x157mm
Tires Maxxis Chronicle TR Exo 27.5x3.0
Crankset Sram NX1 DM30t Boost
Bottom Bracket Sram GXP XR 73mm
Pedals /
Chain Sram PC-1110 11s
Front Derailleur /
Rear Derailleur Sram NX X-Horizon Type3 11s
Shifters SRAM NX1 Trigger right 11s
Cassette Sram PG-1130 11-42t 11s
Weight w/o Pedals 14.9 kg

Size Guide: Mondraker Crafty R+ 27.5+ 2017 Full Suspension MTB

Mondraker 2017 Crafty R+ 27.5+ Size Chart

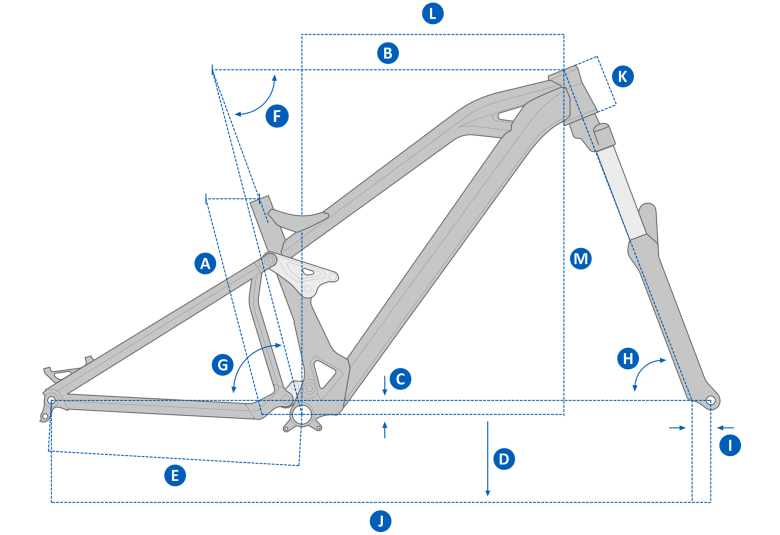

Mondraker 2017 Crafty R+ 27.5+ Frame Geometry
  FRAME SIZE S M L XL
A Seat Tube Length 380mm 420mm 470mm 510mm
B Top Tube Length 610mm 640mm 670mm 700mm
C Bottom Bracket Drop -25mm -25mm -25mm -25mm
D Bottom Bracket Height 340mm 340mm 340mm 340mm
E Chainstay Length 438mm 438mm 438mm 438mm
F Seat Tube Angle, Actual 75º 75º 75º 75º
G Seat Tube Angle, Effective 75º 75º 75º 75º
H Head Tube Angle 67.5º 67.5º 67.5º 67.5º
I Fork Offset 51mm 51mm 51mm 51mm
J Wheelbase 1215mm 1244mm 1269mm 1295mm
K Head Tube Length 90mm 100mm 115mm 130mm
L Reach 450mm 475mm 495mm 515mm
M Stack 593mm 602mm 616mm 630mm
