Mondraker 2017 Prime R+ 27.5+
Mondraker 2017 Prime R+ 27.5+
Mondraker 2017 Prime R+ 27.5+

Add this product to your basket or calculate finance costs...

Mondraker 2017 Prime R+ - Small MPN: MB.010.17041 Our Price £1,895.00 Add To Basket 0% Finance Calculator
Mondraker 2017 Prime R+ - Medium MPN: MB.010.17042 Our Price £1,895.00 Add To Basket 0% Finance Calculator
Mondraker 2017 Prime R+ - Large MPN: MB.010.17043 Our Price £1,895.00 Add To Basket 0% Finance Calculator
Mondraker 2017 Prime R+ - X Large MPN: MB.010.17044 Our Price £1,895.00 Add To Basket 0% Finance Calculator

For detailed information about frame sizes – please view the frame size guide at the bottom of this page.

Description: Mondraker Prime R+ 27.5+ 2017 Hardtail Trail Bike

Trail bikes are the most logical intro to modern mountain biking and they promise the maximum enjoyment for novices when combined with the 27.5+ concept. The right bikes at the right price for the largest number of users.

Sunset Cycles offers the 2017 Mondraker Prime R+ 27.5+ hardtail trail bike with up to 24 months 0% finance and free delivery.

The 2017 Mondraker PRIME range: Prime + | Prime R+

Full Specification: Mondraker Prime R+ 27.5+ 2017 Hardtail Trail Bike

Frame Prime 27.5+ Xtralite Full Butted Alloy FG
Colour Graphite / Orange
Sizes S / M / L / XL
Rear Shock /
Fork RockShox Reba 27.5+ RL Solo Air Boost tapered 120mm
Headset FSA No.57 ACB Bearings integrated tapered 1-1/8″->1/5″
Stem Onoff Stoic FG 30mm
Handlebar Mondraker custom design 0.5 760mm
Grips Onoff Diamond 1lock-on
Seatpost Onoff Notion 0-R 31.6x400mm
Saddle Mondraker Prime+ custom design
Front Brake SRAM Level T 180mm
Rear Brake SRAM Level T 180mm
Levers SRAM Level T
Rims MDK TP1 35 27.5+ TLR wheelset
Spokes CN stainless
Front Hub MDK Disc Pro 15X110mm
Rear Hub MDK Disc Pro 12x148mm
Tires Maxxis Rekon TR Dual Exo 27.5x2.8 / Maxxis Ikon TR Dual Exo 27.5x2.8
Crankset Race Face Aeffect SL DM32t
Bottom Bracket Race Face X-Type 73mm
Pedals /
Chain Shimano HG60011 11s
Front Derailleur /
Rear Derailleur Shimano XT SGS RDM8000 11s
Shifters Shimano SLX SL-M7000 right
Cassette Sram PG-1130 11-42t
Weight w/o Pedals 12.4 kg

Size Guide: Mondraker Prime R+ 27.5+ 2017 Hardtail Trail Bike

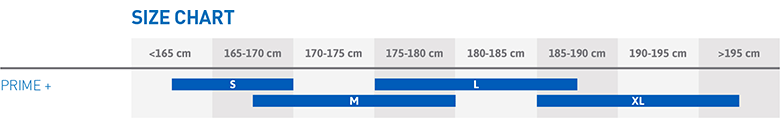

Mondraker 2017 Prime R+ 27.5+ Size Chart

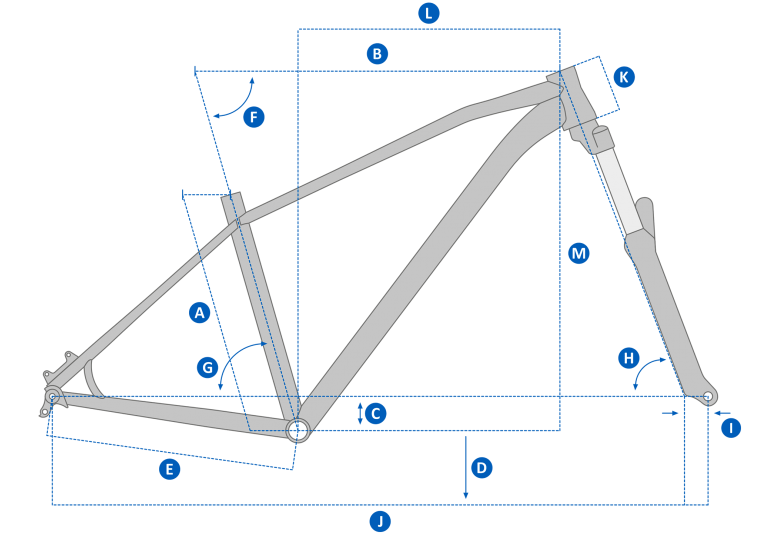

Mondraker 2017 Prime R+ 27.5+ Frame Geometry
  FRAME SIZE S M L XL
A Seat Tube Length 390mm 430mm 470mm 510mm
B Top Tube Length 610mm 640mm 670mm 700mm
C Bottom Bracket Drop -60mm -60mm -60mm -60mm
D Bottom Bracket Height 305mm 305mm 305mm 305mm
E Chainstay Length 435mm 435mm 435mm 435mm
F Seat Tube Angle, Actual 74º 74º 74º 74º
G Seat Tube Angle, Effective 74º 74º 74º 74º
H Head Tube Angle 69º 69º 69º 69º
I Fork Offset 51mm 51mm 51mm 51mm
J Wheelbase 1133mm 1163mm 1194mm 1225mm
K Head Tube Length 90mm 100mm 110mm 120mm
L Reach 432mm 459mm 487mm 514mm
M Stack 620mm 630mm 639mm 648mm
