Mondraker 2017 Phase S 27.5
Mondraker 2017 Phase S 27.5
Mondraker 2017 Phase S 27.5

Add this product to your basket or calculate finance costs...

Mondraker 2017 Phase S 27.5 - Small MPN: MB.010.17305 Our Price £685.00 Add To Basket 0% Finance Calculator
Mondraker 2017 Phase S 27.5 - Medium MPN: MB.010.17306 Our Price £685.00 Add To Basket 0% Finance Calculator
Mondraker 2017 Phase S 27.5 - Large MPN: MB.010.17307 Our Price £685.00 Add To Basket 0% Finance Calculator
Mondraker 2017 Phase S 27.5 - X Large MPN: MB.010.17308 Our Price £685.00 Add To Basket 0% Finance Calculator

For detailed information about frame sizes – please view the frame size guide at the bottom of this page.

Description: Mondraker Phase S 27.5 2017 Hardtail Sports Bike

Phase is a sports bike to satisfy the mass-market demand, while maintaining Mondraker's unique design features. Offering a better user experience than much of the competition.

Sunset Cycles offers the 2017 Mondraker Phase S 27.5 hardtail sports bike with up to 24 months 0% finance and free delivery.

The 2017 Mondraker PHASE range: Phase 27.5 | Phase 29er | Phase S 27.5 | Phase S 29er

Full Specification: Mondraker Phase S 27.5 2017 Hardtail Sports Bike

Frame Phase 27.5 Custolite Alloy 6061 Customized tubing
Colour Vibrant Blue / Yellow
Sizes S / M / L / XL
Rear Shock /
Fork Suntour XCM 27.5 RL Remote Qr 100mm
Headset Fsa No.10 1-1/8″
Stem MDK XC +/-7° 75/90/105mm
Handlebar MDK XC 1.0 680mm
Grips Onoff Diamond
Seatpost MDK XC 27.2x350mm
Saddle Mondraker Phase custom design
Front Brake Tektro HDM-285 Hydraulic disc brakes 160mm
Rear Brake Tektro HDM-285 Hydraulic disc brakes 160mm
Levers Tektro HDM-285
Rims MDK-XS1 27.5 wheelset
Spokes CN stainless
Front Hub MDK Disc 9x100mm
Rear Hub MDK Disc 9x135mm
Tires Vee Rubber 325 27.5x2.10 Wire
Crankset Suntour XCM 40/30/22t
Bottom Bracket CH-52_EN
Pedals Wellgo LU-895N flat
Chain KMC Z99 9s
Front Derailleur Shimano Acera FD-M3000 Low clamp
Rear Derailleur Shimano Alivio RD-M4000 SGS 9s
Shifters Shimano Altus SL-M370 3x9s
Cassette Shimano HG200 11-34t 9s
Weight w/o Pedals 13.9 kg

Size Guide: Mondraker Phase S 27.5 2017 Hardtail Sports Bike

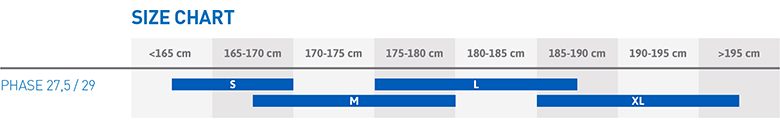

Mondraker 2017 Phase S 27.5 Size Chart

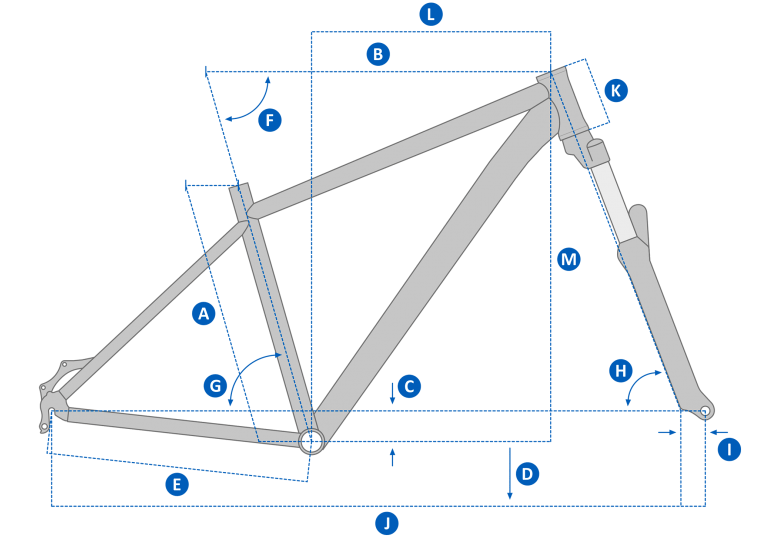

Mondraker 2017 Phase S 27.5 Frame Geometry
  FRAME SIZE S M L XL
A Seat Tube Length 380mm 430mm 480mm 530mm
B Top Tube Length 550mm 560mm 585mm 610mm
C Bottom Bracket Drop -50mm -50mm -50mm -50mm
D Bottom Bracket Height 295mm 295mm 295mm 295mm
E Chainstay Length 425mm 425mm 425mm 425mm
F Seat Tube Angle, Actual 74º 74º 74º 74º
G Seat Tube Angle, Effective 74º 74º 74º 74º
H Head Tube Angle 69º 69º 69º 69º
I Fork Offset 42mm 42mm 42mm 42mm
J Wheelbase 1058mm 1066mm 1092mm 1118mm
K Head Tube Length 100mm 100mm 110mm 130mm
L Reach 380mm 390mm 400mm 417mm
M Stack 590mm 591mm 594mm 596mm
