Mondraker 2017 Neva S 27.5

Mondraker 2017 Neva S 27.5
Mondraker 2017 Neva S 27.5
Mondraker 2017 Neva S 27.5

Add this product to your basket or calculate finance costs...

Frame Size: Small MPN: MB.010.17340
Our Price £685.00
Frame Size: Medium MPN: MB.010.17341
Our Price £685.00
Frame Size: Large MPN: MB.010.17342
Our Price £685.00

Description: Mondraker Neva S 27.5 2017 Women's Hardtail Trail Bike

Neva is a women's specific sports bike to satisfy the mass-market demand, while maintaining Mondraker's unique design features. Offering a better user experience than much of the competition.

Sunset Cycles offers the 2017 Mondraker Neva S 27.5 women's hardtail trail bike with up to 24 months 0% finance and free delivery.

The 2017 Mondraker NEVA range: Neva | Neva S

Full Specification: Mondraker Neva S 27.5 2017 Women's Hardtail Trail Bike

Frame Neva 27.5 Custolite Alloy 6061 Customized tubing
Colour White / Fuchsia
Sizes S / M / L
Rear Shock /
Fork Suntour XCM 27.5 RL Remote Qr 100mm, Soft spring
Headset Fsa No.10 1-1/8″
Stem MDK XC +/-7° 75/90mm
Handlebar MDK XC 1.0 660mm
Grips Onoff Ergogrip
Seatpost MDK XC 27.2x350mm
Saddle Mondraker Phase custom design
Front Brake Tektro HDM-286 Hydraulic disc brakes 160mm
Rear Brake Tektro HDM-286 Hydraulic disc brakes 160mm
Levers Tektro HDM-286 Shorter lever
Rims MDK-XS1 27.5 wheelset
Spokes CN stainless
Front Hub MDK Disc 9x100mm
Rear Hub MDK Disc 9x135mm
Tires Vee Rubber 325 27.5x2.10 Wire
Crankset Suntour XCM 40/30/22t
Bottom Bracket CH-52_EN
Pedals Wellgo LU-895N flat
Chain KMC Z99 9s
Front Derailleur Shimano Acera FD-M3000 Low clamp
Rear Derailleur Shimano Alivio RD-M4000 SGS 9s
Shifters Shimano Altus SL-M370 3x9s
Cassette Shimano HG200 11-34t 9s
Weight w/o Pedals 14.2 kg

Size Guide: Mondraker Neva S 27.5 2017 Women's Hardtail Trail Bike

Mondraker 2017 Neva S 27.5 Size Chart

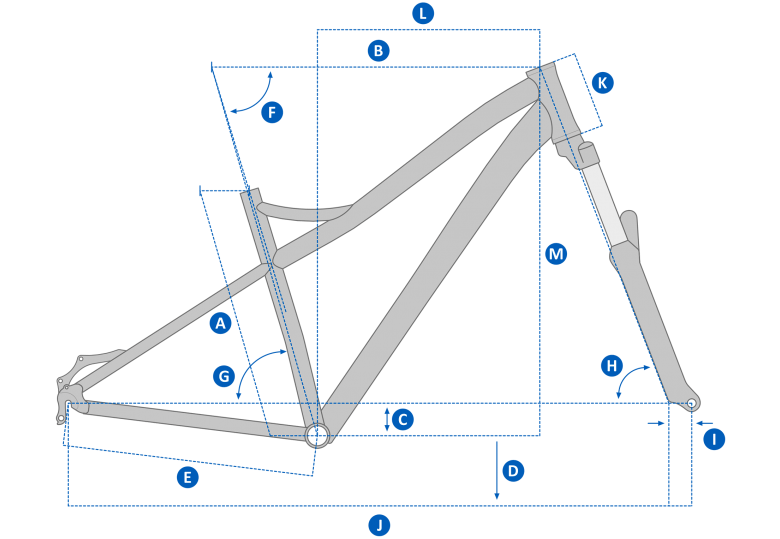

Mondraker 2017 Neva S 27.5 Frame Geometry
  FRAME SIZE S M L
A Seat Tube Length 395mm 440mm 480mm
B Top Tube Length 540mm 555mm 570mm
C Bottom Bracket Drop -55mm -55mm -55mm
D Bottom Bracket Height 294mm 294mm 294mm
E Chainstay Length 425mm 425mm 425mm
F Seat Tube Angle, Actual 74º 74º 74º
G Seat Tube Angle, Effective 74º 74º 74º
H Head Tube Angle 69º 69º 69º
I Fork Offset 42mm 42mm 42mm
J Wheelbase 1045mm 1061mm 1077mm
K Head Tube Length 120mm 130mm 140mm
L Reach 380mm 390mm 400mm
M Stack 650mm 651mm 656mm
