Mondraker 2017 e-Prime Carbon R+ 27.5+

Mondraker 2017 e-Prime Carbon R+ 27.5+
Mondraker 2017 e-Prime Carbon R+ 27.5+
Mondraker 2017 e-Prime Carbon R+ 27.5+

Add this product to your basket or calculate finance costs...

Frame Size: Small MPN: MB.010.17209
Our Price £4,195.00
Frame Size: Medium MPN: MB.010.17210
Our Price £4,195.00
Frame Size: Large MPN: MB.010.17211
Our Price £4,195.00
Frame Size: X Large MPN: MB.010.17212
Our Price £4,195.00

Description: Mondraker e-Prime Carbon R+ 27.5+ 2017 Electric Hardtail MTB

The future is today. Mondraker is fully committed to the electric bike movement and we are convinced e-MTB will be the new best selling category in the next few seasons.

Sunset Cycles offers the 2017 Mondraker e-Prime Carbon R+ 27.5+ electric hardtail mountain bike (e-MTB) with up to 36 months 0% finance and free delivery.

The 2017 Mondraker e-MTB range: e-Prime + | e-Prime R+ | e-Vantage R+ | e-Panzer R | e-Prime Carbon R+ | e-Vantage RR+ | e-Crafty R+ | e-Crafty XR+ | e-Prime Carbon RR+

Full Specification: Mondraker e-Prime Carbon R+ 27.5+ 2017 Electric Hardtail MTB

Frame e-Prime 27.5+ Stealth Full Carbon Forward Geometry
Colour Carbon / Orange
Sizes S / M / L / XL
Rear Shock /
Fork RockShox Reba 27.5+ RL Solo Air Boost tapered 120mm
Headset FSA No.57 ACB Bearings integrated tapered 1-1/8″->1/5″
Stem Onoff Stoic FG 30mm
Handlebar Mondraker custom design 0.5 760mm
Grips Onoff Diamond 1lock-on
Seatpost Onoff Notion 0-R 31.6x400mm
Saddle Mondraker custom design
Front Brake SRAM Level T 180mm
Rear Brake SRAM Level T 180mm
Levers SRAM Level T
Rims MDK-EP1 35 27.5+ TLR wheelset
Spokes CN stainless
Front Hub MDK Disc Pro 15X110mm
Rear Hub MDK Disc Pro 12x148mm
Tires Maxxis Rekon TR Dual Exo 27.5x2.8 / Maxxis Ikon TR Dual Exo 27.5x2.8
Motor Bosch Performance Line CX system w/ PowerPack 500Wh Bosch battery, Purion On Board computer.
Crankset Miranda Delta cranksets 15T
Pedals /
Chain Sram PC-1031 10s
Front Derailleur /
Rear Derailleur Sram GX Type 2.1 Long cage 10s
Shifters Sram GX Trigger 10s
Cassette Sram PG-1020 11-36t 10s
Weight w/o Pedals 19.2 kg

Size Guide: Mondraker e-Prime Carbon R+ 27.5+ 2017 Electric Hardtail MTB

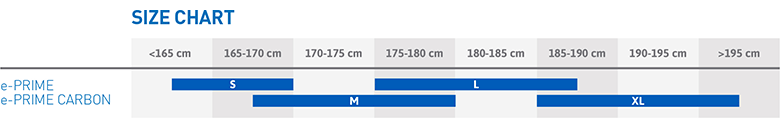

Mondraker 2017 e-Prime Carbon R+ 27.5+ Size Chart

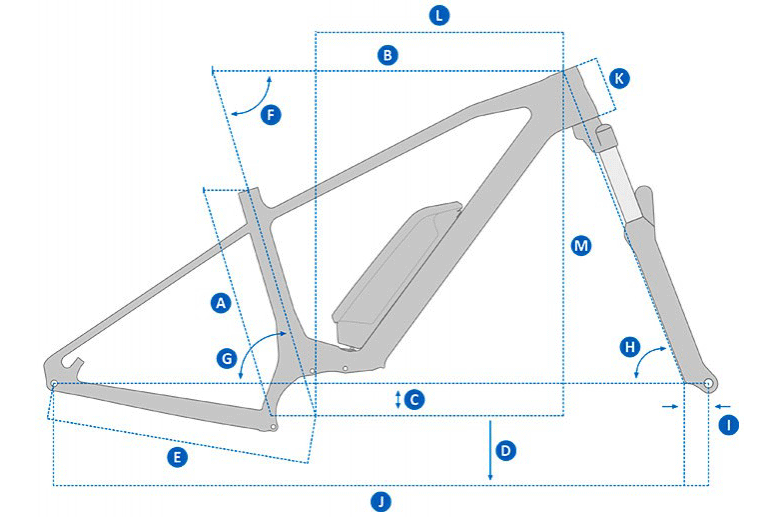

Mondraker 2017 e-Prime Carbon R+ 27.5+ Frame Geometry
  FRAME SIZE S M L XL
A Seat Tube Length 390mm 430mm 470mm 510mm
B Top Tube Length 610mm 640mm 670mm 700mm
C Bottom Bracket Drop -60mm -60mm -60mm -60mm
D Bottom Bracket Height 305mm 305mm 305mm 305mm
E Chainstay Length 480mm 480mm 480mm 480mm
F Seat Tube Angle, Actual 73.5º 73.5º 73.5º 73.5º
G Seat Tube Angle, Effective 73.5º 73.5º 73.5º 73.5º
H Head Tube Angle 69º 69º 69º 69º
I Fork Offset 51mm 51mm 51mm 51mm
J Wheelbase 1172mm 1203mm 1234mm 1265mm
K Head Tube Length 90mm 100mm 110mm 120mm
L Reach 425mm 455mm 480mm 510mm
M Stack 620mm 630mm 640mm 650mm
