Mondraker 2017 e-Prime + 27.5+

Mondraker 2017 e-Prime + 27.5+
Mondraker 2017 e-Prime + 27.5+
Mondraker 2017 e-Prime + 27.5+

Add this product to your basket or calculate finance costs...

Frame Size: Small MPN: MB.010.17201
Our Price £2,895.00
Frame Size: Medium MPN: MB.010.17202
Our Price £2,895.00
Frame Size: Large MPN: MB.010.17203
Our Price £2,895.00
Frame Size: X Large MPN: MB.010.17204
Our Price £2,895.00

Description: Mondraker e-Prime + 27.5+ 2017 Electric Hardtail MTB

The future is today. Mondraker is fully committed to the electric bike movement and we are convinced e-MTB will be the new best selling category in the next few seasons.

Sunset Cycles offers the 2017 Mondraker e-Prime + 27.5+ electric hardtail mountain bike (e-MTB) with up to 36 months 0% finance and free delivery.

Full Specification: Mondraker e-Prime + 27.5+ 2017 Electric Hardtail MTB

Frame e-Prime 27.5+ Xtralite Full Butted Alloy Forward Geometry
Colour Black / White
Sizes S / M / L / XL
Rear Shock /
Fork RockShox Recon Silver 27.5+ RL Solo Air Boost tapered 120mm
Headset FSA No.57 ACB Bearings integrated tapered 1-1/8″->1/5″
Stem Onoff Stoic FG 30mm
Handlebar Mondraker custom design 0.5 760mm
Grips Onoff Diamond 1lock-on
Seatpost Onoff Notion 0-R 31.6x400mm
Saddle Mondraker custom design
Front Brake Shimano M396 180mm
Rear Brake Shimano M396 180mm
Levers Shimano M396
Rims MDK-EP1 35 27.5+ TLR wheelset
Spokes CN stainless
Front Hub MDK Disc Pro 15X110mm
Rear Hub MDK Disc Pro 12x148mm
Tires Maxxis Ikon TR Dual Exo 27.5x2.8
Motor Bosch Performance Line system w/ PowerPack 500Wh Bosch battery, Intuvia On Board computer.
Crankset Miranda Delta cranksets 15T
Pedals /
Chain Sram PC-1031 10s
Front Derailleur /
Rear Derailleur Sram GX Long cage 10s
Shifters Sram X5 Trigger 10s
Cassette Sram PG-1020 11-36t 10s
Weight w/o Pedals 20 kg

Size Guide: Mondraker e-Prime + 27.5+ 2017 Electric Hardtail MTB

Mondraker 2017 e-Prime + 27.5+ Size Chart

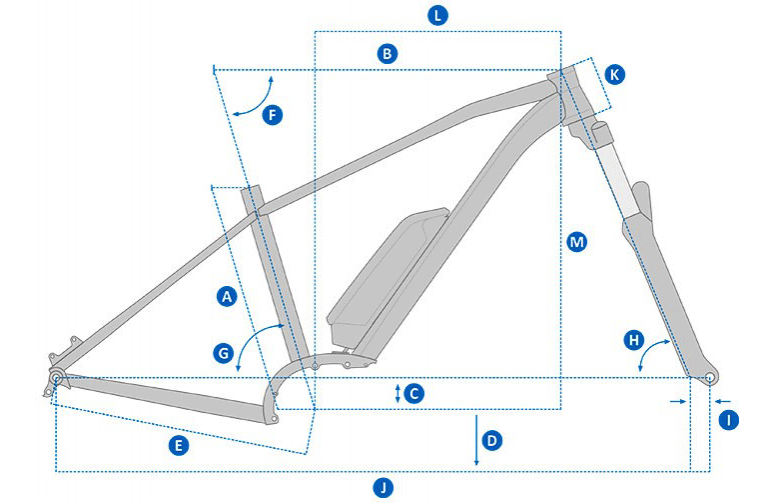

Mondraker 2017 e-Prime + 27.5+ Frame Geometry
  FRAME SIZE S M L XL
A Seat Tube Length 390mm 430mm 470mm 510mm
B Top Tube Length 610mm 640mm 670mm 700mm
C Bottom Bracket Drop -60mm -60mm -60mm -60mm
D Bottom Bracket Height 305mm 305mm 305mm 305mm
E Chainstay Length 485mm 485mm 485mm 485mm
F Seat Tube Angle, Actual 73.5º 73.5º 73.5º 73.5º
G Seat Tube Angle, Effective 73.5º 73.5º 73.5º 73.5º
H Head Tube Angle 69º 69º 69º 69º
I Fork Offset 51mm 51mm 51mm 51mm
J Wheelbase 1177mm 1208mm 1239mm 1270mm
K Head Tube Length 90mm 100mm 110mm 120mm
L Reach 425mm 455mm 480mm 510mm
M Stack 620mm 630mm 640mm 650mm
