Orange 2018 RX9 S

Orange 2018 RX9 S

Add this product to your basket or calculate finance costs...

Frame Size: Small MPN: B17RX9S-S
Our Price £1,250.00
Frame Size: Medium MPN: B17RX9S-M
Our Price £1,250.00
Frame Size: Large MPN: B17RX9S-L
Our Price £1,250.00
Frame Size: X Large MPN: B17RX9S-XL
Our Price £1,250.00
Frame Size: XX Large MPN: B17RX9S-XXL
Our Price £1,250.00

Description: Orange RX9 S 2018 Road Cross Bike

The Orange RX9 is back, and it’s more fun, more versatile and basically better than ever. We’re not too keen on pigeonholes, so let’s just say this is the Orange for really taking flight, whether that’s on road, off road or even over your shoulder when you want to go wild.

Still built around a responsive but comfy double-butted alloy frame, for 2017 we listened to riders and improved the sizing by shortening the 30.9 seat tube. Meanwhile, a 142 x 12mm bolt-through rear and 15mm bolt-through fork stiffens things up for a sturdier feel and snappier handling. On top of that, the new chainstay disc mount keeps things tidy and accessible for running panniers and mudguards – great for going the distance whatever the weather.

Whether you’re razzing around or round-the-world bikepacking, the Orange RX9 is right at home on the tarmac, towpath or tropical dirt roads. Thing is, it’s also built for the rough stuff and loves to prove it: a plucky little hero whose off-road talents are bigger than you think. A bike for adventures. An Orange through and through.

The Orange RX9 S is more of an allrounder that the Pro version due to the double chainrings. Still rugged enough not to worry where roads or otherwise may lead.

Sunset Cycles offers the 2018 Orange RX9 S road cross bike in Fresh Orange with up to 24 months 0% finance and free delivery.

The 2018 Orange RX9 range: RX9 S | RX9 Pro

Full Specification: Orange RX9 S 2018 Road Cross Bike

Frame & Fork
Frame 6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 700c
Fork RX9 Rigid Carbon
Headset FPD 44mm
Rear Axle 12 x 142mm OLD Bolt Thru Axle
Wheels & Tyres
Wheels Formula + Alex Draw 1.9P
Tyres Vittoria Revolution 700 x 38c
Drivetrain
Crankset Shimano RS-400 50 x 34t
Chain Device Shimano Tiagra Front Mech
Rear Mech Shimano Tiagra
Cassette
Shifters Shimano Tiagra
Bottom Bracket Shimano Hollow Tech II
Chain KMC X10
Braking
Brakes TRP Spyre
Finishing Kit
Stem Strange Stalk
Handlebar Strange 440 Drop Bar
Grips Blue Foam Grip Tape
Seatpost Strange Post 400mm
Saddle Kore Durox IE
Seat Clamp Strange Bolted
Pedals Kore Rivera Thermo

Size Guide: Orange RX9 S 2018 Road Cross Bike

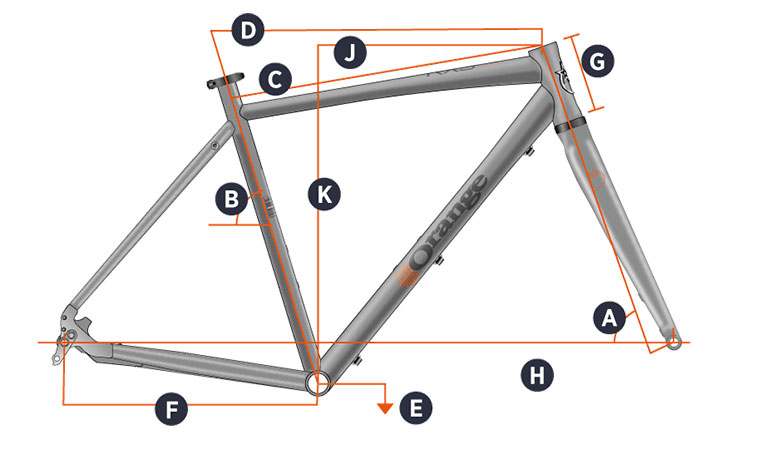

Orange 2018 RX9 Frame Geometry
Frame Size Small Medium Large X Large XX Large
Rider Height Guidance* 5'5" to 5'7" 5'6" to 5'10" 5'9" to 6'1" 6'0" to 6'3" 6'2" to 6'5"
Frame Size (cm) 52 54 56 58 60
A. Head Angle 70° 70° 70° 70° 70°
B. Seat Angle 73° 73° 73° 73° 73°
C. Top Tube 519 536 551 556 582
D. Effective TT 540 555 570 585 600
E. Bottom Bracket Height -70 -70 -70 -70 -70
F. Chainstay 435 435 435 435 435
G. Head Tube 125 140 160 180 195
H. Wheelbase 1024 1040 1056 1072 1088
I. Front & Centre 599 615 621 647 647
J. Reach 368 380 390 400 410
K. Stack 558 574 593 612 625
Standover 745 760 780 802 812
Seat Tube Ø 30.9 30.9 30.9 30.9 30.9
Unless otherwise indicated all measurements are in mm. Bottom bracket height measured from axle.
*This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you.
