Orange 2017 Four RS 27.5

Orange 2017 Four RS 27.5

Sale Price From £3,495.00* (Save 21%)

Regular Price £4,450.00

*exact price is dependent on options selected

0% finance from £87.38 per month

To apply for finance, add the product to your basket and then select the finance option

Add this product to your basket or calculate finance costs...

Frame Size & Colour: Large - Cyan Blue (Black Decals) with Factory Wheel upgrade MPN: B17FOURRS/L/CYBL
Sale Price £3,495.00 (Save 21%) Regular Price £4,450.00

Description: Orange Four RS 27.5 2017 Full Suspension Mountain Bike

The Orange Four sits below the bigger hitting trail burners of the Five and Alpine 160, but is vastly more capable than the XC lightweights. The Four is Orange to the core: simple, reliable and built to perform at the highest level. If you love the RockShox suspension platform, the Orange Four RS is the one for you. The RS model runs the award winning 130mm Pike fork and a proven SRAM 1x11spd drivetrain.

Sunset offers the 2017 Orange Four RS 27.5 full suspension mountain bike with up to 36 months 0% finance and free delivery.

The 2017 Orange FOUR range: Four S | Four RS

Full Specification: Orange Four RS 27.5 2017 Full Suspension Mountain Bike

Frame & Fork
Tubeset 6061-T6 Monocoque UK Formed Custom Aluminium Tubing
Rear Axle 12 x 148mm OLD Bolt Thru Axle
Fork RockShox Pike 130 RCT3 Solo Air Boost
Rear Shock RockShox Monarch DB RT3 184 x 44mm
Headset Cane Creek 49mm
Drivetrain
Crankset SRAM X1 Carbon 30t
Front Mech Top Guide Chain Device
Rear Mech Sram X0-1 Carbon 11spd
Cassette SRAM PG1150 10-42 11spd
Shifters Sram GX1 11spd
Bottom Bracket SRAM GXP
Chain SRAM PCX1 11spd
Wheels & Tyres
Wheelset Hope Pro 4 (Black) + Mavic XM624 27.5"
Tyres Maxxis High Roller II 2.4 3c TR Exo / High Roller
Braking
Brakes SRAM Guide R 180mm/180mm
Finishing Kit
Stem Renthal Apex M35 50mm extension
Handlebar Renthal Fatbar M35 20mm Rise 800mm
Grips Renthal Ultra Tacky Lock On
Seatpost KS Lev Integra 125mm drop
Saddle SDG Strange Bel Air 2.0
Seat Clamp Strange QR
Pedals

Size Guide: Orange Four RS 27.5 2017 Full Suspension Mountain Bike

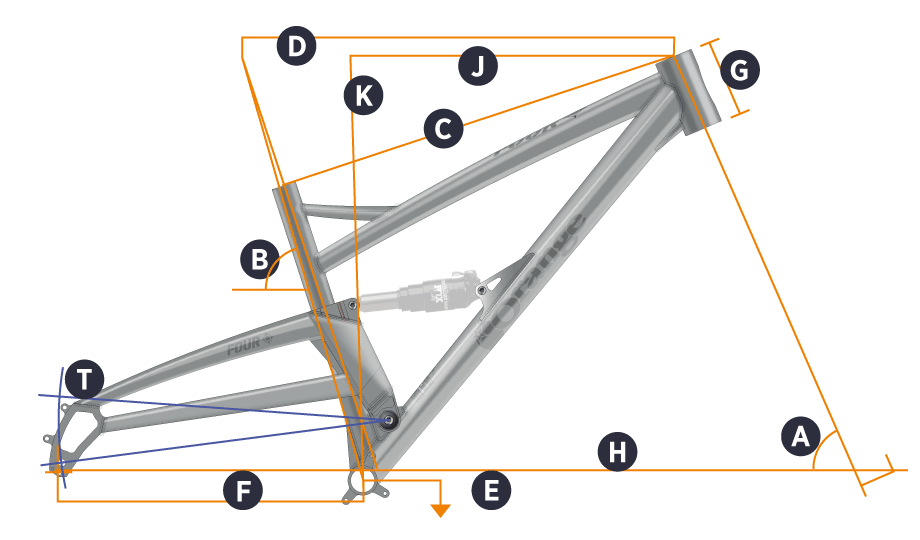

Orange 2017 Four Frame Geometry
Frame Size Small Medium Large X Large
Rider Height Guidance* 5'4" to 5'7" 5'6" to 5'10" 5'9" to 6'1" 6'0" to 6'5"
Seat Tube Length 15" 17" 18" 20"
A. Head Angle 67° 67° 67° 67°
B. Seat Angle Actual 72º 72º 72º 72º
B. Seat Angle Effective 74º 74º 74º 74º
C. Top Tube 572 579 598 618
D. Top Tube (effective) 590 610 630 650
E. BB Height (from ground) 330 330 330 330
BB height (from axles -25 -25 -25 -25
F. Chainstay 424 424 424 424
G. Head Tube 100 110 110 130
H. Wheel base 1132 1153 1173 1196
T. Rear Travel 120 120 120 120
J. Reach 421 438 458 473
K. Stack 588 598 598 616
Standover 690 730 744 783
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 710 mm Ø tyre.
*This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you.
