Orange 2017 P7 Frame 27.5

Orange 2017 P7 Frame 27.5

Add this product to your basket or calculate finance costs...

Total: £420.00

*Please be aware that some product options can incur an additional cost. Where applicable, these costs are stated alongside the product option.

Description: Orange P7 2017 Frame 27.5

The legendary Orange P7 hardcore steel hardtail has gone through a few changes over the years and after a brief hiatus it's back with new geometry, a new Reynolds 525 tubeset and a new wheel size, but with the same attitude that'll see it stood outside the headmaster's office on the first day of trail school. The Orange P7 urges you to go faster, pedal harder and fly higher.

Sunset offers the 2017 Orange P7 27.5 hardtail mountain bike frame with up to 24 months 0% finance and free delivery.

The 2017 Orange P7 range: P7 Frame | P7 S 27.5 | P7 Pro 27.5 | P7 RS 27.5

Size Guide: Orange P7 2017 Frame 27.5

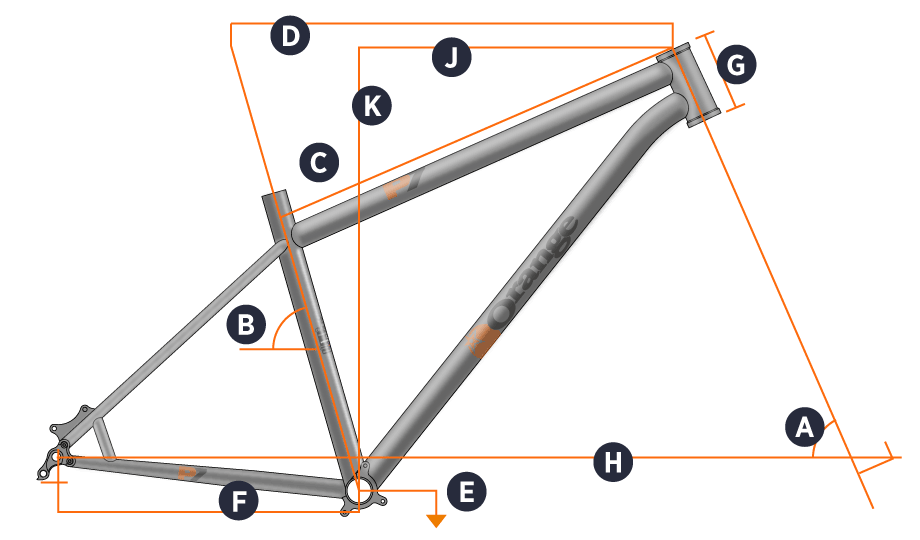

Orange 2017 P7 Frame Geometry
Frame Size Small Medium Large X Large
Rider Height Guidance* 5'4" to 5'7" 5'6" to 5'10" 5'9" to 6'1" 6'0" to 6'5"
Frame Size 15" 17" 19" 21"
A. Head Angle 65° 65° 65° 65°
B. Seat Angle 74° 74° 74° 74°
C. Top Tube 590 603 619 639
D. Effective TT 600 620 640 660
E. BB Height (axle diff) -48 -48 -48 -48
E. BB Height (from ground) 301 301 301 301
F. Chainstay 430 430 430 430
G. Head Tube 100 110 120 130
H. Wheelbase 1167 1187 1207 1227
J. Reach 425 441 457 472
K. Stack 613 622 631 640
Standover 678 724 772 815
Stem Length 50 50 50 50
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 705 mm Ø tyre.
*This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you.
