Mondraker 2017 Summum Carbon Pro Team 27.5

Mondraker 2017 Summum Carbon Pro Team 27.5
Mondraker 2017 Summum Carbon Pro Team 27.5
Mondraker 2017 Summum Carbon Pro Team 27.5

Add this product to your basket or calculate finance costs...

Frame Size: Small MPN: MB.010.17142
Our Price £7,595.00
Frame Size: Medium MPN: MB.010.17143
Our Price £7,595.00
Frame Size: Large MPN: MB.010.17144
Our Price £7,595.00
Frame Size: X Large MPN: MB.010.17145
Our Price £7,595.00

Description: Mondraker Summum Carbon Pro Team 27.5 2017 Downhill MTB

Summum is Mondraker's global flagship, the most recognised Mondraker Bike ever, the reason why their brand started the international expansion showing a unique DH bike that continues leading the category today. It is the benchmark in the Formula 1 category of mountain biking.

Sunset Cycles offers the 2017 Mondraker Summum Carbon Pro Team 27.5 full suspension downhill mountain bike with up to 36 months 0% finance and free delivery.

The 2017 Mondraker SUMMUM range: Summum Carbon Pro | Summum Carbon Pro Team

Full Specification: Mondraker Summum Carbon Pro Team 27.5 2017 Downhill MTB

Frame Summum 27.5 Stealth Full Carbon Zero Suspension System FG 205mm
Colour Carbon / Vibrant Blue / White
Sizes S / M / L / XL
Rear Shock Fox DHX2 Factory Kashima SLS Spring 222x70mm
Fork Fox 40 27.5 Float FIT HSC LSC Factory Kashima 20mm 1-1/8″ 203mm
Headset FSA No.9 1-1/8″ w/Adjustable Geometry kit
Stem Onoff Stoic DH Integrated FG 20-30mm
Handlebar Renthal Fatbar 30mm rise 780mm
Grips Onoff Diamond 1lock-on
Seatpost SDG I-Beam SP-951 Carbon 31.6 300mm
Saddle SDG I-Beam I-Fly Eva
Front Brake Sram Guide RSC 203mm
Rear Brake Sram Guide RSC 203mm
Levers Sram Guide RSC
Rims Dt Swiss FR1950 27.5 wheelset
Spokes DT Competition
Front Hub DT Classic 240 20mm
Rear Hub DT Classic 240 12X150mm XXD freehub
Tires Maxxis Minion DHR II SuperTacky compound 27.5x2.4
Crankset Sram X01 DH 1.1 165mm 34t
Bottom Bracket Sram GXP TM 83mm
Pedals /
Chain Sram PCX1 11s
Front Derailleur Chainguide E.13 LG1R Carbon
Rear Derailleur Sram X01 DH X-Horizon Type2.1 Short Cage 7s
Shifters Sram X0 DH Trigger right 7s
Cassette Sram XG-795 10-24t 7s
Weight w/o Pedals 15.1 kg

Size Guide: Mondraker Summum Carbon Pro Team 27.5 2017 Downhill MTB

Mondraker 2017 Summum Carbon Pro Team 27.5 Size Chart

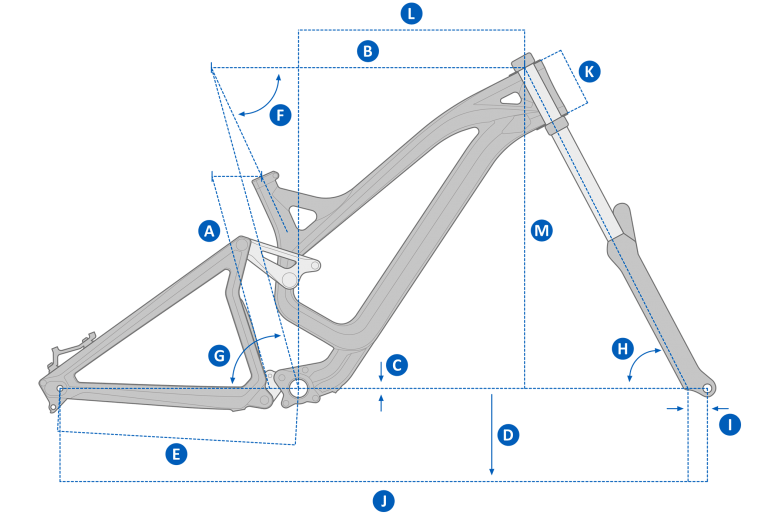

Mondraker 2017 Summum Carbon Pro Team 27.5 Frame Geometry
  FRAME SIZE S M L XL
A Seat Tube Length 400mm 400mm 400mm 400mm
B Top Tube Length 575mm 600mm 622mm 647mm
C Bottom Bracket Drop 0mm 0mm 0mm 0mm
D Bottom Bracket Height 350mm 350mm 350mm 350mm
E Chainstay Length 445 - 460mm 445 - 460mm 445 - 460mm 445 - 460mm
F Seat Tube Angle, Actual 65º 65º 65º 65º
G Seat Tube Angle, Effective 73.5º 73.5º 73.5º 73.5º
H Head Tube Angle 63º (+/-2º) 63º (+/-2º) 63º (+/-2º) 63º (+/-2º)
I Fork Offset 52mm 52mm 52mm 52mm
J Wheelbase 1200mm 1225mm 1250mm 1280mm
K Head Tube Length 112mm 112mm 122mm 122mm
L Reach 397mm 422mm 442mm 468mm
M Stack 597mm 597mm 606mm 606mm
