Mondraker 2017 Dune Carbon XR 27.5

Mondraker 2017 Dune Carbon XR 27.5
Mondraker 2017 Dune Carbon XR 27.5
Mondraker 2017 Dune Carbon XR 27.5

Add this product to your basket or calculate finance costs...

Frame Size: Small MPN: MB.010.17125
Our Price £7,395.00
Frame Size: Medium MPN: MB.010.17126
Our Price £7,395.00
Frame Size: Large MPN: MB.010.17127
Our Price £7,395.00
Frame Size: X Large MPN: MB.010.17128
Our Price £7,395.00

Description: Mondraker Dune Carbon XR 27.5 2017 Enduro MTB

Dune is the ultimate Enduro racing bike with the latest Mondraker key technologies. It is the new best selling platform, definitely the most desired bike into our current portfolio and for sure the personal bike of half the Mondraker staff.

Sunset offers the 2017 Mondraker Dune Carbon XR 27.5 full suspension enduro bike with up to 36 months 0% finance and free delivery.

The 2017 Mondraker DUNE range: Dune | Dune Carbon R | Dune Carbon RR | Dune Carbon XR

Full Specification: Mondraker Dune Carbon XR 27.5 2017 Enduro MTB

Frame Dune 27.5 Stealth Full Carbon Zero Suspension System FG 160mm
Colour Carbon / Vibrant Blue / Orange
Sizes S / M / L / XL
Rear Shock Fox DHX2 2Pos Lever Factory Kashima SLS Spring 215x63.5mm
Fork Fox 36 27.5 Float FIT HSC LSC Factory Kashima 15mm tapered 170mm
Headset FSA No.42 ACB Bearings integrated tapered w/Adjustable Geometry kit
Stem Onoff Stoic FG30, 35mm Barbore
Handlebar Onoff Stoic Carbon 0.5 780mm 35mm barbore
Grips Onoff Diamond 1lock-on
Seatpost Fox Transfer Performance Elite internal
Saddle SDG Fly MTN TI
Front Brake Sram Guide RSC 200mm
Rear Brake Sram Guide RSC 180mm
Levers Sram Guide RSC
Rims Dt Swiss EX1501 Spline One 27.5 wheelset
Spokes DT Competition Straight pull
Front Hub DT Classic 240 15mm
Rear Hub DT Classic 240 12X142mm XXD freehub
Tires Maxxis High Roller II TR Dual Exo 27.5x2.3
Crankset Race Face SIXC Carbon DM32t
Bottom Bracket Race Face X-Type 73mm
Pedals /
Chain Sram PCX1 11s
Front Derailleur /
Rear Derailleur Sram X01 Carbon X-Horizon Type2.1 1x11s
Shifters Sram X01 Trigger right 11s
Cassette Sram XG1175 10-42t 11s
Weight w/o Pedals 12.9 kg

Size Guide: Mondraker Dune Carbon XR 27.5 2017 Enduro MTB

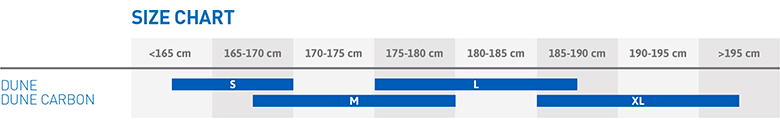

Mondraker 2017 Dune Carbon XR 27.5 Size Chart

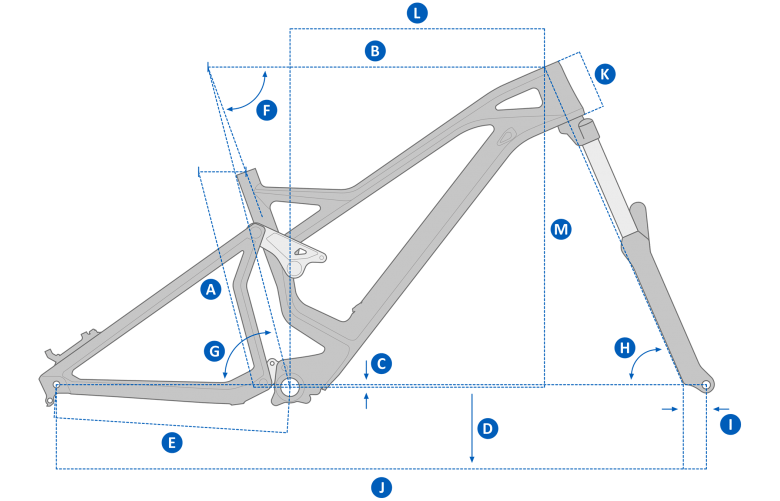

Mondraker 2017 Dune Carbon XR 27.5 Frame Geometry
  FRAME SIZE S M L XL
A Seat Tube Length 380mm 420mm 470mm 510mm
B Top Tube Length 610mm 630mm 655mm 673mm
C Bottom Bracket Drop -5mm -5mm -5mm -5mm
D Bottom Bracket Height 350mm 350mm 350mm 350mm
E Chainstay Length 430 - 440mm 430 - 440mm 430 - 440mm 430 - 440mm
F Seat Tube Angle, Actual 69.9º 69.9º 69.9º 69.9º
G Seat Tube Angle, Effective 74.7º 74.7º 74.7º 74.7º
H Head Tube Angle 66º (+/-1º) 66º (+/-1º) 66º (+/-1º) 66º (+/-1º)
I Fork Offset 44mm 44mm 44mm 44mm
J Wheelbase 1198mm 1218mm 1243mm 1265mm
K Head Tube Length 110mm 110mm 120mm 130mm
L Reach 452mm 472mm 493mm 508mm
M Stack 596mm 596mm 606mm 613mm
