Mondraker 2017 Dune R 27.5

Mondraker 2017 Dune R 27.5
Mondraker 2017 Dune R 27.5
Mondraker 2017 Dune R 27.5

Description: Mondraker Dune R 27.5 2017 Enduro MTB

Dune is the ultimate Enduro racing bike with the latest Mondraker key technologies. It is the new best selling platform, definitely the most desired bike into our current portfolio and for sure the personal bike of half the Mondraker staff.

Sunset offers the 2017 Mondraker Dune R 27.5 full suspension enduro bike with up to 36 months 0% finance and free delivery.

The 2017 Mondraker DUNE range: Dune | Dune Carbon R | Dune Carbon RR | Dune Carbon XR

Full Specification: Mondraker Dune R 27.5 2017 Enduro MTB

Frame Dune 27.5 Stealth Zero Suspension System FG 160mm
Colour Black / Lime / Orange
Sizes S / M / L / XL
Rear Shock Fox Float X LV EVOL 3Pos Lever Performance 215x63.5mm
Fork Fox 36 27.5 Float Grip 3Pos Lever Performance Boost tapered 160mm
Headset FSA No.57 ACB Bearings integrated tapered 1-1/8″->1/5″
Stem Onoff Stoic FG 30mm
Handlebar Mondraker custom design 1.0 780mm
Grips Onoff Diamond 1lock-on
Seatpost Fox Transfer Performance Elite internal
Saddle SDG Fly MTN
Front Brake Sram Guide R 180mm
Rear Brake Sram Guide R 180mm
Levers Sram Guide R
Rims DT E1900 Spline 27.5″ Tubeless Ready wheelset
Spokes DT Champion Straight pull
Front Hub DT E1900 Spline 15x110mm
Rear Hub DT E1900 Spline 12x148mm
Tires Maxxis High Roller II TR Dual Exo 27.5x2.3
Crankset Sram NX1 DM32t Boost
Bottom Bracket Sram GXP XR 73mm
Pedals /
Chain Sram PC-1110 11s
Front Derailleur /
Rear Derailleur Sram NX X-Horizon Type3 11s
Shifters SRAM NX1 Trigger right 11s
Cassette Sram PG-1130 11-42t 11s
Weight w/o Pedals 14 kg

Size Guide: Mondraker Dune R 27.5 2017 Enduro MTB

Mondraker 2017 Dune R 27.5 Size Chart

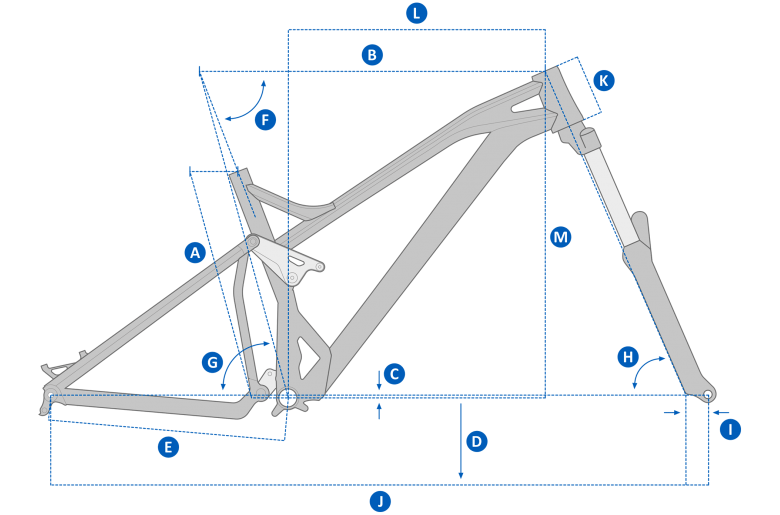

Mondraker 2017 Dune R 27.5 Frame Geometry
  FRAME SIZE S M L XL
A Seat Tube Length 380mm 420mm 470mm 510mm
B Top Tube Length 608mm 633mm 656mm 678mm
C Bottom Bracket Drop -5mm -5mm -5mm -5mm
D Bottom Bracket Height 340mm 340mm 340mm 340mm
E Chainstay Length 432mm 432mm 432mm 432mm
F Seat Tube Angle, Actual 69º 69º 69º 69º
G Seat Tube Angle, Effective 75º 75º 75º 75º
H Head Tube Angle 66º 66º 66º 66º
I Fork Offset 44mm 44mm 44mm 44mm
J Wheelbase 1190mm 1215mm 1240mm 1264mm
K Head Tube Length 110mm 110mm 120mm 130mm
L Reach 450mm 475mm 495mm 515mm
M Stack 590mm 590mm 599mm 608mm
