Mondraker 2017 Leader 29er

Mondraker 2017 Leader 29er
Mondraker 2017 Leader 29er
Mondraker 2017 Leader 29er

Description: Mondraker Leader 29er 2017 Hardtail XC Bike

With a high-end alloy XC platform, Mondraker Leader models provide the best value bikes for all types of riding.

Sunset Cycles offers the 2017 Mondraker Leader 29er hardtail XC bike with up to 24 months 0% finance and free delivery.

Full Specification: Mondraker Leader 29er 2017 Hardtail XC Bike

Frame Leader 29er Xtralite Full Butted Alloy
Colour Orange / White
Sizes S / M / L / XL
Rear Shock /
Fork Suntour XCR 29 Coil RL Remote Qr 100mm
Headset Fsa No.57SC-1 tapered reduced 1-1/8″
Stem MDK XC +/-7° 75/90/105mm
Handlebar MDK XC Flatbar 700mm
Grips Onoff Diamond
Seatpost MDK XC 27.2x350mm
Saddle Mondraker Leader custom design by SelleRoyal
Front Brake Tektro HDM-285 160mm
Rear Brake Tektro HDM-285 160mm
Levers Tektro HDM-285
Rims MDK-XP1 29 TLR wheelset
Spokes CN stainless
Front Hub MDK Disc 9x100mm
Rear Hub MDK Disc 9x135mm
Tires Kenda Small Block Eight 29x2.10 Wire
Crankset Suntour XCM 36/22t
Bottom Bracket Shimano Octalink BBES300
Pedals /
Chain KMC X10 10s
Front Derailleur Shimano Deore FD-M618
Rear Derailleur Shimano Deore SGS RDM610 10s
Shifters Shimano Deore SL-M610 2x10
Cassette SunRace CSMS 11-36t 10s
Weight w/o Pedals 13.5 kg

Size Guide: Mondraker Leader 29er 2017 Hardtail XC Bike

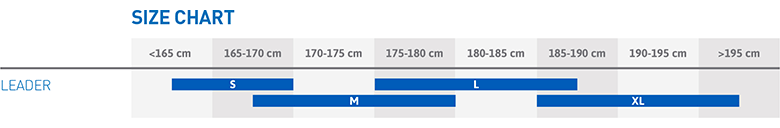

Mondraker 2017 Leader 29er Size Chart

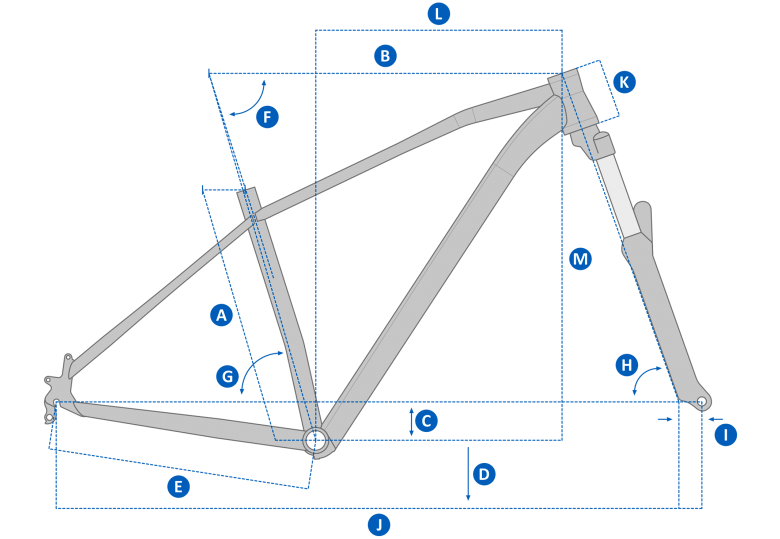

Mondraker 2017 Leader 29er Frame Geometry
  FRAME SIZE S M L XL
A Seat Tube Length 395mm 440mm 480mm 520mm
B Top Tube Length 575mm 600mm 620mm 640mm
C Bottom Bracket Drop -65mm -65mm -65mm -65mm
D Bottom Bracket Height 300mm 300mm 300mm 300mm
E Chainstay Length 443mm 443mm 443mm 443mm
F Seat Tube Angle, Actual 72.5º 72.5º 72.5º 72.5º
G Seat Tube Angle, Effective 73.5º 73.5º 73.5º 73.5º
H Head Tube Angle 70.5º 70.5º 70.5º 70.5º
I Fork Offset 46mm 46mm 46mm 46mm
J Wheelbase 1075mm 1100mm 1120mm 1141mm
K Head Tube Length 100mm 100mm 110mm 125mm
L Reach 391mm 416mm 433mm 449mm
M Stack 621mm 621mm 630mm 644mm
