Mondraker 2017 Panzer

Mondraker 2017 Panzer
Mondraker 2017 Panzer
Mondraker 2017 Panzer

Description: Mondraker Panzer 2017 FAT Bike

Mondraker have made no compromises in their take on fat; tapered headset, internal cable routing and post mount rear disc brakes make the Panzer one of the hardest wearing and playtime ready 'Fat' bikes on the market.

Sunset Cycles offers the 2017 Mondraker Panzer fat bike with up to 24 months 0% finance and free delivery.

Full Specification: Mondraker Panzer 2017 FAT Bike

Frame Panzer Stealth 2.0 Forward Geometry
Colour Vibrant Blue
Sizes S / M / L / XL
Rear Shock /
Fork MDK Fat Alloy 15x135mm tapered
Headset Onoff Integrated tapered 1-1/8″->1/5″
Stem Onoff Stoic FG 30mm
Handlebar Onoff Notion 0.2 740mm
Grips Onoff Diamond 1lock-on
Seatpost Onoff Notion 0-R 31.6x400mm
Saddle Mondraker Panzer custom design
Front Brake Sram Level 180mm
Rear Brake Sram Level 180mm
Levers Sram Level
Rims MDK FAT SB-80 28 80mm rim w/reduced weight cutouts
Spokes CN stainless
Front Hub MDK-FAT Pro 15x150mm
Rear Hub MDK-FAT Pro 12x190mm
Tires Maxxis Colossus TR Dual Exo 120tpi 26X4.80
Crankset Race Face Aeffect Fabike DM30t
Bottom Bracket Race Face X-Type 100mm
Pedals /
Chain SRAM PC1110 11s
Front Derailleur /
Rear Derailleur SRAM NX1 X-Horizon Type3 11s
Shifters SRAM NX1 Trigger right 11s
Cassette Sram PG-1130 11-42t 11s
Weight w/o Pedals 14.8 kg

Size Guide: Mondraker Panzer 2017 FAT Bike

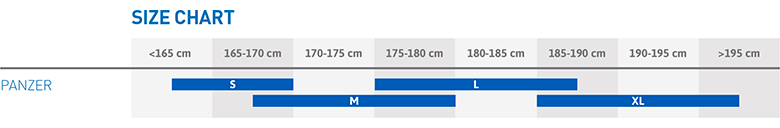

Mondraker 2017 Panzer Size Chart

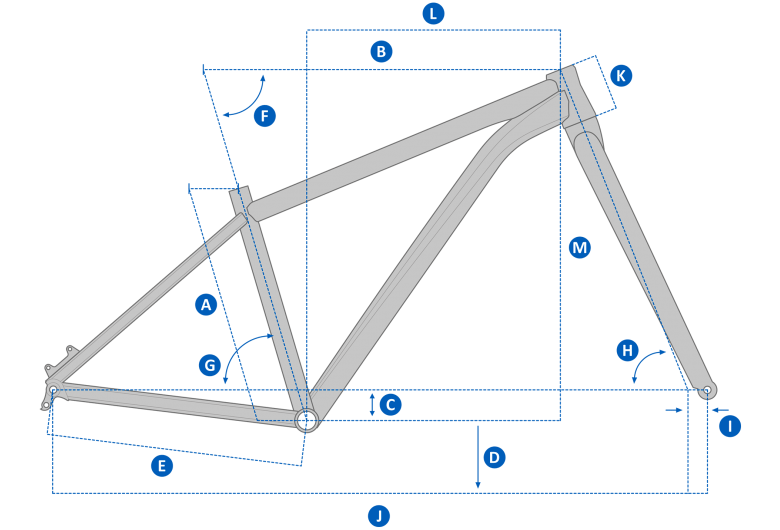

Mondraker 2017 Panzer Frame Geometry
A Seat Tube Length 380mm 430mm 480mm 520mm
B Top Tube Length 615mm 635mm 660mm 685mm
C Bottom Bracket Drop -65mm -65mm -65mm -65mm
D Bottom Bracket Height 300mm 300mm 300mm 300mm
E Chainstay Length 455mm 455mm 455mm 455mm
F Seat Tube Angle, Actual 73.5º 73.5º 73.5º 73.5º
G Seat Tube Angle, Effective 73.5º 73.5º 73.5º 73.5º
H Head Tube Angle 69.5º 69.5º 69.5º 69.5º
I Fork Offset 45mm 45mm 45mm 45mm
J Wheelbase 1133mm 1154mm 1180mm 1206mm
K Head Tube Length 90mm 100mm 110mm 125mm
L Reach 438mm 462mm 485mm 505mm
M Stack 573mm 583mm 592mm 606mm
