Mondraker 2017 e-Panzer R

Mondraker 2017 e-Panzer R
Mondraker 2017 e-Panzer R
Mondraker 2017 e-Panzer R

Add this product to your basket or calculate finance costs...

Frame Size: Small MPN: MB.010.17225
Our Price £4,195.00
Frame Size: Medium MPN: MB.010.17226
Our Price £4,195.00
Frame Size: Large MPN: MB.010.17227
Our Price £4,195.00
Frame Size: X Large MPN: MB.010.17228
Our Price £4,195.00

Description: Mondraker e-Panzer R 2017 Electric FAT Bike

The future is today. Mondraker is fully committed to the electric bike movement and we are convinced e-MTB will be the new best selling category in the next few seasons.

Sunset Cycles offers the 2017 Mondraker e-Panzer R electric FAT bike (e-MTB) with up to 36 months 0% finance and free delivery.

The 2017 Mondraker e-MTB range: e-Prime + | e-Prime R+ | e-Vantage R+ | e-Panzer R | e-Prime Carbon R+ | e-Vantage RR+ | e-Crafty R+ | e-Crafty XR+ | e-Prime Carbon RR+

Full Specification: Mondraker e-Panzer R 2017 Electric FAT Bike

Frame e-Panzer Stealth 2.0 Forward Geometry
Colour Pearl White / Black
Sizes S / M / L / XL
Rear Shock /
Fork RockShox Bluto RL Solo Air tapered 120mm
Headset Fsa No.57 tapered 1-1/8″->1/5″
Stem Onoff Stoic FG 30mm
Handlebar Onoff Notion 0.2 740mm
Grips Onoff Diamond 1lock-on
Seatpost Onoff Notion 0-R 31.6x400mm
Saddle Mondraker E-mtb custom design
Front Brake Sram Guide R 200mm
Rear Brake Sram Guide R 200mm
Levers Sram Guide R
Rims MDK FP1 80mm rim w/reduced weight cutouts
Spokes CN stainless
Front Hub MDK FP1 sealed bearings 15x150mm
Rear Hub MDK FP1 sealed bearings 12x190mm
Tires Maxxis Minion FBF TR Dual Exo 26x4.8 / Maxxis Minion FBR TR Dual Exo 26x4.8
Motor Bosch Performance Line CX system w/ PowerPack 500Wh Bosch battery, Purion On Board computer.
Crankset Miranda Delta cranksets 14T
Pedals /
Chain Shimano HG60011 11s
Front Derailleur /
Rear Derailleur Shimano XT SGS RDM8000 11s
Shifters Shimano SLX SL-M8000 11s
Cassette Shimano SLX M7000 11-42t 11s
Weight w/o Pedals 21.5 kg

Size Guide: Mondraker e-Panzer R 2017 Electric FAT Bike

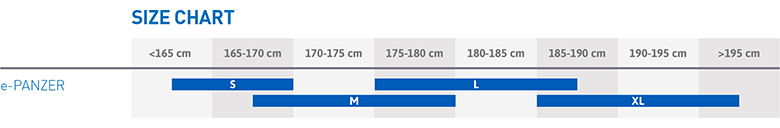

Mondraker 2017 e-Panzer R Fat Size Chart

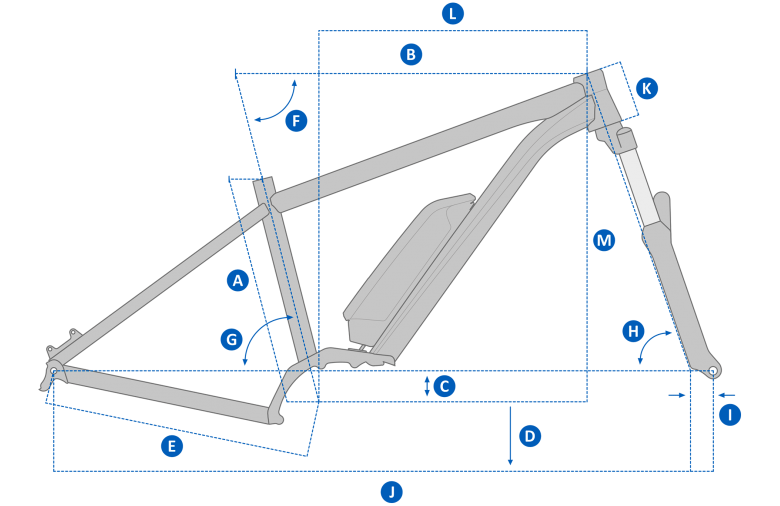

Mondraker 2017 e-Panzer R Fat Frame Geometry
A Seat Tube Length 380mm 430mm 480mm 520mm
B Top Tube Length 615mm 635mm 660mm 685mm
C Bottom Bracket Drop -55mm -55mm -55mm -55mm
D Bottom Bracket Height 315mm 315mm 315mm 315mm
E Chainstay Length 485mm 485mm 485mm 485mm
F Seat Tube Angle, Actual 73.5º 73.5º 73.5º 73.5º
G Seat Tube Angle, Effective 73.5º 73.5º 73.5º 73.5º
H Head Tube Angle 68.5º 68.5º 68.5º 68.5º
I Fork Offset 51mm 51mm 51mm 51mm
J Wheelbase 1190mm 1211mm 1237mm 1263mm
K Head Tube Length 90mm 100mm 110mm 125mm
L Reach 433mm 451mm 473mm 494mm
M Stack 614mm 623mm 632mm 646mm
