Orange 2017 Stage 5 Frame 29er (Including rear shock)

Orange 2017 Stage 5 Frame 29er (Including rear shock)

Description: Orange Stage 5 2017 Frame 29er (Including rear shock)

Forget everything you thought you knew about bigger-wheeled bikes: the Orange Stage 5 is here. Designed to go further and faster whatever the terrain, this bike signals a new generation of trail-loving 29ers where nothing’s off limits and everything goes.

Big wheels and a super-efficient pivot position help transfer more of your energy straight into the trail – great for carrying speed and tackling epics. Meanwhile, the Orange Stage 5’s frameset geometry is slack enough for the steeps and long enough for superb stability, not to mention the chance to reap the handling rewards of running a short stem. A sweet spot of 140/135 travel helps flatten even the roughest rock gardens too – perfect for pace, comfort and efficiency.

With 148mm Boost rear spacing, internal dropper routing and a 5-year warranty on its handmade frame, the Orange Stage 5 is bang up to date and reassuringly future-proof. Make no mistake: in any of its guises this is one seriously versatile bike with an audaciously bold intention.

Sunset Cycles offers the 2017 Orange Stage 5 29er mountain bike frame with up to 24 months 0% finance and free delivery.

The 2017 Orange STAGE range: Stage 5 RS | Stage 6 RS | Stage 6 Factory

Size Guide: Orange Stage 5 2017 Frame 29er (Including rear shock)

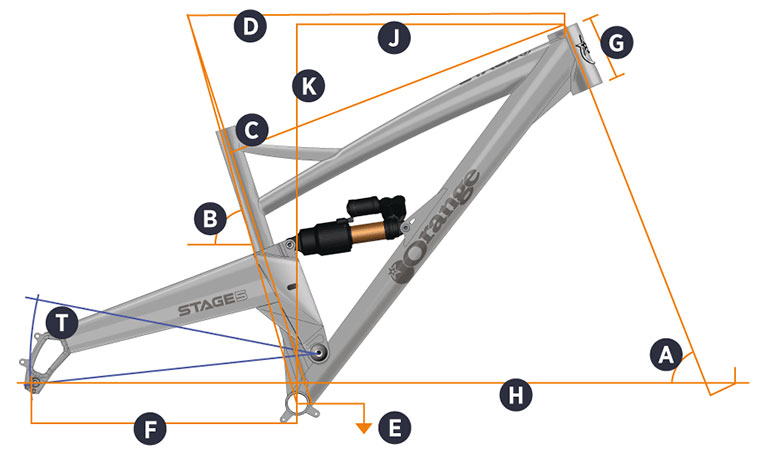

Orange 2017 Stage 5 Frame Geometry
Frame Size Medium Large X Large
Rider Height Guidance* 5'6" to 5'10" 5'9" to 6'1" 6'0" to 6'5"
Seat Tube Length 17" 18" 20"
A. Head Angle 66.5° 66.5° 66.5°
B. Seat Angle (Actual) 71.5° 71.5° 71.5°
B. Seat Angle (Effective) 74° 74° 74°
C. Top Tube 585 604 623
D. Top Tube (effective) 615 635 655
E. BB Height (from ground) 335 335 335
BB height (from axles -35 -35 -35
F. Chainstay 445 445 445
G. Head Tube 100 110 120
H. Wheel base 1183 1204 1225
J. Reach 436 453 470
K. Stack 624 633 642
T. Rear Travel 135 135 135
Standover 720 742 795
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from ground with 740 mm Ø tyre.
*This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you.
