The hardworking Orange Five has been a stalwart of our range for a long time. It's tough, reliable and capable. The harder you push it the happier it seems to be. So we better make sure we don't mess with it right?
It was last updated a year and a half ago, it was time to see what we could do for the new Orange Five. We liked the way the Four rode, and how it's suspension action had a really active feel to it, we set about seeing how we could bring this same element to the Five's set-up. To add the new compact rear suspension layout to the Orange Five would be ideal, but where would we fit the shock? In theory lower in the frame, in practice, not so easy. But if it was easy, it wouldn't be worth doing, and the guys in the frame department came up with the goods. Like the solving of a complex engineering puzzle we worked out a way to lower the shock by adding a new pressing in the fabrication of the downtube, leading the way to the compact rear on the Orange Five and improving the shock's ramp-up at the same time.
That isn't all, we've added extra strength-forming features to all the major frame assemblies, improving resistance to lateral flex and twisting forces. Boost sizing at the rear hub and an extra 6mm in the pivot spacing helps here too, enabling us to add more tyre clearance. And if that's not enough, the CNC department found weight savings in the billet machined parts to build up the lightest Orange Five we've ever produced. Geometry is optimised for a 150mm travel fork, while the rear sits at the 140mm trail bike sweet spot.
We love the ride of the new Orange Five, its lively 'pop' has to be experienced, and when pushed hard the bike gives back to the rider. Grip, feel and a lively ride all there in abundance.
The optimum blend of price, specification and performance make the Orange Five Pro the perfect choice for the trail-hardened rider.
Sunset offers the 2017 Orange Five Pro 27.5 full suspension mountain bike with up to 36 months 0% finance and free delivery.
|Frame & Fork|
|Tubeset||6061-T6 Monocoque UK Formed Custom Aluminium Tubing|
|Rear Axle||12 x 148mm OLD Bolt Thru Axle|
|Fork||Fox 34 Performance 150mm Boost|
|Rear Shock||Fox Float DPS EVol Performance 190 x 51mm|
|Headset||Cane Creek 49mm|
|Crankset||Race Face Aeffect Single DM 30t|
|Front Mech||Top Guide Chain Device|
|Rear Mech||Shimano XT Shadow + 11spd|
|Cassette||Shimano SLX 11spd 11-42|
|Shifters||Shimano SLX 11spd|
|Bottom Bracket||Race Face|
|Chain||SRAM PC1110 11spd|
|Wheels & Tyres|
|Wheelset||Formula + Kore Realm 2.7 27.5"|
|Tyres||Maxxis High Roller II Exo TR 2.3|
|Brakes||Shimano M615 180mm/160mm|
|Stem||Race Face Ride M35 50mm|
|Handlebar||Race Face Chester Riser 780mm M35|
|Seatpost||KS Cruxi Integra 100mm drop|
|Saddle||SDG Strange Bel Air 2.0|
|Seat Clamp||Strange QR|

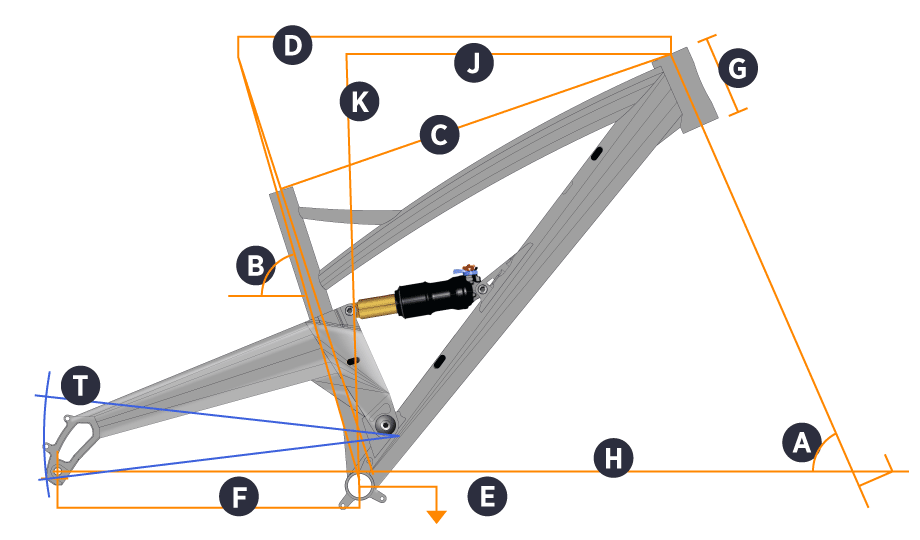

|Frame Size||Small||Medium||Large||X Large|
|Rider Height Guidance*||5'4" to 5'7"||5'6" to 5'10"||5'9" to 6'1"||6'0" to 6'5"|
|Seat Tube Length||16"||17"||18"||20"|
|A. Head Angle||66º||66º||66º||66º|
|B. Seat Angle Actual||72º||72º||72º||72º|
|B. Seat Angle Effective||74º||74º||74º||74º|
|C. Top Tube||568||587||608||627|
|D. Top Tube (effective)||595||615||635||655|
|E. BB Height (from ground)||333||333||333||333|
|BB height (from axles||-20||-20||-20||-20|
|G. Head Tube||110||110||130||140|
|H. Wheel base||1156||1176||1199||1220|
|T. Rear Travel||140||140||140||140|
|Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 706 mm Ø tyre.|
|*This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you.|
