Mondraker 2017 Vantage R+ 27.5+

Mondraker 2017 Vantage R+ 27.5+
Mondraker 2017 Vantage R+ 27.5+
Mondraker 2017 Vantage R+ 27.5+

Add this product to your basket or calculate finance costs...

Frame Size: Small MPN: MB.010.17150
Our Price £1,795.00
Frame Size: Medium MPN: MB.010.17151
Our Price £1,795.00
Frame Size: Large MPN: MB.010.17152
Our Price £1,795.00
Frame Size: X Large MPN: MB.010.17153
Our Price £1,795.00

Description: Mondraker Vantage R+ 27.5+ 2017 Hardtail MTB

Who says a fun bike must be fully sprung? The Mondraker Vantage is part of our core branding, the perfect blend of All Mountain skills with the heritage of a 90's DH hardtail bike.

Sunset offers the 2017 Mondraker Vantage R+ 27.5+ hardtail mountain bike with up to 24 months 0% finance and free delivery.

The 2017 Mondraker VANTAGE range: Vantage R | Vantage R+ | Vantage RR+

Full Specification: Mondraker Vantage R+ 27.5+ 2017 Hardtail MTB

Frame Vantage 27.5+ Stealth Forward Geometry
Colour Blue / White
Sizes S / M / L / XL
Rear Shock /
Fork RockShox Sektor Silver 27.5+ RL Solo Air Boost tapered 140mm
Headset FSA No.57 ACB Bearings integrated tapered 1-1/8″->1/5″
Stem Onoff Stoic FG 30mm
Handlebar Mondraker custom design 1.0 760mm
Grips Onoff Diamond 1lock-on
Seatpost Onoff Notion 0-R 31.6x400mm
Saddle Mondraker Vantage R+ custom design
Front Brake Sram Level 180mm
Rear Brake Sram Level 180mm
Levers Sram Level
Rims MDK EP1 40 27.5+ TLR
Spokes CN stainless
Front Hub MDK Disc Pro DC711 15x110mm
Rear Hub MDK Disc Pro DHL157 12x157mm
Tires Maxxis Chronicle TR Exo 27.5x3.0
Crankset SRAM NX1 24mm 32t Boost
Bottom Bracket SRAM GXP XR 73mm
Pedals /
Chain Sram PC-1031 10s
Front Derailleur /
Rear Derailleur SRAM GX Long cage 10s
Shifters SRAM X5 Trigger 10s
Cassette SUNRACE CSMCS3 11-42t 10s
Weight w/o Pedals 13.9 kg

Size Guide: Mondraker Vantage R+ 27.5+ 2017 Hardtail MTB

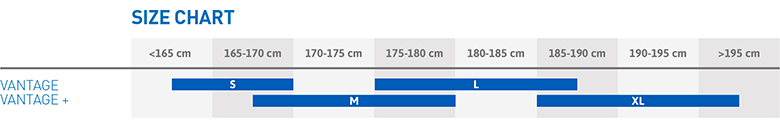

Mondraker 2017 Vantage R+ 27.5+ Size Chart

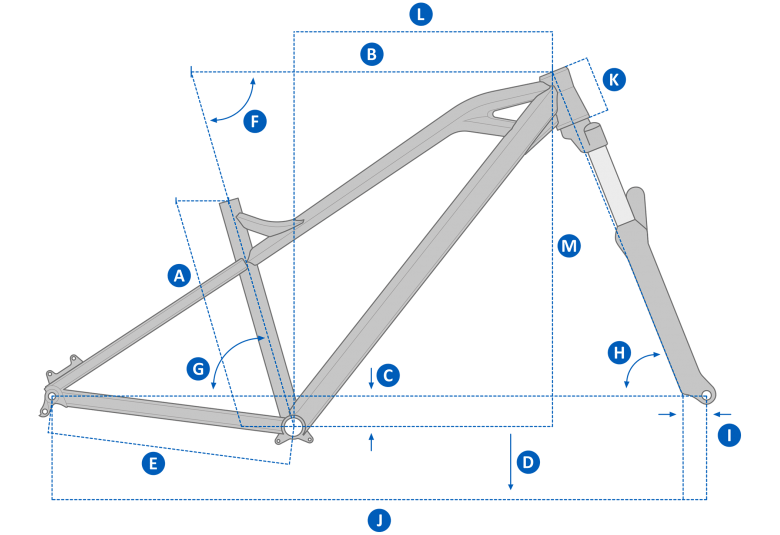

Mondraker 2017 Vantage R+ 27.5+ Frame Geometry
  FRAME SIZE S M L XL
A Seat Tube Length 370mm 420mm 470mm 520mm
B Top Tube Length 615mm 645mm 675mm 705mm
C Bottom Bracket Drop -55mm -55mm -55mm -55mm
D Bottom Bracket Height 305mm 305mm 305mm 305mm
E Chainstay Length 435mm 435mm 435mm 435mm
F Seat Tube Angle, Actual 74º 74º 74º 74º
G Seat Tube Angle, Effective 74º 74º 74º 74º
H Head Tube Angle 68º 68º 68º 68º
I Fork Offset 51mm 51mm 51mm 51mm
J Wheelbase 1157mm 1187mm 1218mm 1249mm
K Head Tube Length 100mm 100mm 110mm 120mm
L Reach 433mm 464mm 491mm 517mm
M Stack 632mm 632mm 641mm 651mm
