SAVE 10% off your order by using our Special Discount Code SAVE10

Mondraker 2017 e-Crafty XR+ 27.5+

Our Price £5,695.00

0% finance from £142.38 per month

To apply for finance, please add the product to your basket and then select the finance option

Mondraker 2017 e-Crafty XR+ 27.5+
Mondraker 2017 e-Crafty XR+ 27.5+
Mondraker 2017 e-Crafty XR+ 27.5+

Add this product to your basket or calculate finance costs...

Mondraker 2017 e-Crafty XR+ - Small MPN: MB.010.17233 Our Price £5,695.00 Add To Basket 0% Finance Calculator
Mondraker 2017 e-Crafty XR+ - Medium MPN: MB.010.17234 Our Price £5,695.00 Add To Basket 0% Finance Calculator
Mondraker 2017 e-Crafty XR+ - Large MPN: MB.010.17235 Our Price £5,695.00 Add To Basket 0% Finance Calculator
Mondraker 2017 e-Crafty XR+ - X Large MPN: MB.010.17236 Our Price £5,695.00 Add To Basket 0% Finance Calculator

For detailed information about frame sizes – please view the frame size guide at the bottom of this page.

Description: Mondraker e-Crafty XR+ 27.5+ 2017 Electric Full Suspension MTB

The future is today. Mondraker is fully committed to the electric bike movement and we are convinced e-MTB will be the new best selling category in the next few seasons.

Sunset Cycles offers the 2017 Mondraker e-Crafty XR+ 27.5+ electric full suspension mountain bike (e-MTB) with up to 36 months 0% finance and free delivery.

The 2017 Mondraker e-MTB range: e-Prime + | e-Prime R+ | e-Vantage R+ | e-Panzer R | e-Prime Carbon R+ | e-Vantage RR+ | e-Crafty R+ | e-Crafty XR+ | e-Prime Carbon RR+

Full Specification: Mondraker e-Crafty XR+ 27.5+ 2017 Electric Full Suspension MTB

Frame e-Crafty 27.5+ Stealth Zero Suspension System FG 140mm
Colour Yellow / Black / Orange
Sizes S / M / L / XL
Rear Shock Fox Float X LV 3Pos Lever Performance 200x57mm
Fork Fox 36 27.5+ Talas 3Pos Lever Grip Performance Boost tapered 160mm
Headset FSA No.57 ACB Bearings integrated tapered 1-1/8″->1/5″
Stem Onoff Stoic FG 30mm
Handlebar Mondraker custom design 1.0 760mm
Grips Onoff Diamond 1lock-on
Seatpost Fox Transfer Performance Internal 31.6mm
Saddle Mondraker E-mtb custom design
Front Brake Sram Guide R 200mm
Rear Brake Sram Guide R 200mm
Levers Sram Guide R
Rims DT XM551 40mm
Spokes CN stainless
Front Hub MDK Disc Pro 15X110mm
Rear Hub MDK Disc Pro 12x148mm
Tires Maxxis Chronicle TR Exo 27.5x3.0
Motor Bosch Performance Line CX system w/ PowerPack 500Wh Bosch battery, Purion On Board computer.
Crankset Miranda Delta cranksets 14T
Pedals /
Chain Sram PC 1051 10s
Front Derailleur /
Rear Derailleur SRAM EX1 X-Horizon Type3 8s
Shifters Sram GX Trigger right
Cassette SRAM PG899 11-48t 8s
Weight w/o Pedals 22 kg

Size Guide: Mondraker e-Crafty XR+ 27.5+ 2017 Electric Full Suspension MTB

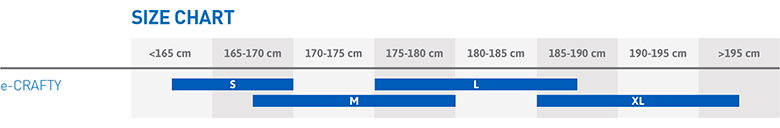

Mondraker 2017 e-Crafty XR+ 27.5+ Size Chart
Mondraker 2017 e-Crafty XR+ 27.5+ Frame Geometry
  FRAME SIZE S M L XL
A Seat Tube Length 380mm 420mm 470mm 510mm
B Top Tube Length 609mm 636mm 660mm 700mm
C Bottom Bracket Drop -20mm -20mm -20mm -20mm
D Bottom Bracket Height 340mm 340mm 340mm 340mm
E Chainstay Length 475mm 475mm 475mm 475mm
F Seat Tube Angle, Actual 74º 74º 74º 74º
G Seat Tube Angle, Effective 74º 74º 74º 74º
H Head Tube Angle 66.5º 66.5º 66.5º 66.5º
I Fork Offset 51mm 51mm 51mm 51mm
J Wheelbase 1215mm 1244mm 1269mm 1295mm
K Head Tube Length 90mm 100mm 115mm 130mm
L Reach 450mm 475mm 495mm 515mm
M Stack 597mm 605mm 621mm 635mm
