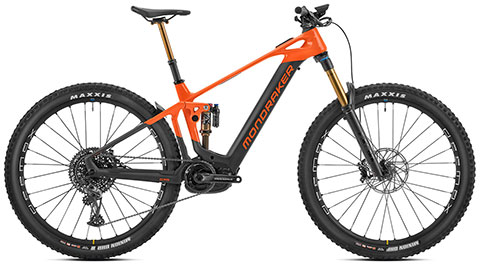

Mondraker 2023 Crafty Carbon RR

Mondraker 2023 Crafty Carbon RR

Sale Price £6,295.00 (Save 30%)

Regular Price £8,995.00

Save an extra 5% using the SAVE5 voucher code.
Valid for a limited time only and while stocks last!
(not available with other offers)

0% APR finance from £139.89 per month

To apply for finance, add the product to your basket and then select the finance option. Finance is subject to status. Minimum spend applies.

This product is not currently available

Description: Mondraker Crafty Carbon RR 2023 Full Suspension e-MTB

The CRAFTY CARBON RR is one of our bestsellers when it comes to ebikes. Offering a truly balanced setup it feels agile, reactive and efficient whether you’re riding uphill or down. The frame’s ZERO SUSPENSION SYSTEM is optimized for you to enjoy the trail whatever surprises it brings. You’ve got Bosch’s Smart System motor with its all-new wireless Mini Remote control and integrated System Controller to keep your cockpit clear. Then you’ve got a 750Wh battery to keep the trails flowing by without ever having to worry about range anxiety, and it comes fitted with our MIND telemetry system to let you set up your suspension like a pro mechanic without actually being one. It’s quite a package.

Sunset Cycles offers the 2023 Mondraker Crafty Carbon RR full suspension electric mountain bike in Matte Carbon / Gloss Orange finish with up to 36 months 0% finance and free delivery.

The 2023 Mondraker CRAFTY range: Crafty R (Blue) | Crafty R (Grey)

Full Specification: Mondraker Crafty Carbon RR 2023 Full Suspension e-MTB

FRAME Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers. Optional MIND System (EU only)
SIZES S: 380mm / M: 420mm / L: 450mm / XL: 490mm
REAR SHOCK Fox Float-X LV Factory Kashima, 205x65mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
SHOCK SETTINGS Medium compression, medium rebound, air volume spacer 0.2
FORK Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: high and low-speed compression, high and low-speed rebound, air preload
HEADSET Acros custom for 1-1/2” head tube, angular contact bearings 40x52x7, Internal cable routing
STEM Onoff Krypton FG 30mm, CNC, 31.8mm barbore
HANDLEBAR Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm barbore
GRIPS Onoff Desert, 1lock-on, 135mm
SEATPOST Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M/L size: 418.3x150mm, XL size: 475.1x175mm
SADDLE FIZIK Terra Aidon X5 145mm
FRONT BRAKE Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steelbacked metal sintered pads
REAR BRAKE Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steelbacked metal sintered pads
BRAKE LEVER Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
RIMS Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes
SPOKES Mavic straight-pull double butted, contactless lacing
FRONT HUB Mavic, Boost 15x110mm, IS 6 bolts
REAR HUB Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
FRONT TIRE Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
REAR TIRE Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
CRANKSET Race Face Aeffect ebike, 165mm
RINGS Sram X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD
PEDALS ---
CHAIN Sram NX Eagle, 12s, Powerlock
FRONT DERRAILLEUR ---
REAR DERRAILLEUR Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
SHIFT LEVERS Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click
CASSETTE Sram XG-1275, 10-52T, 12s
MOTOR Bosch Performance Line CX Cruise (25Km/h) GEN4 Smart System
BATTERY Bosch Powertube 750Wh
DISPLAY Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller
DERAILLEUR HANGER Mondraker M068
OTHERS ---
WEIGHT 23,5 kg

Size Guide: Mondraker Crafty Carbon RR 2023 Full Suspension e-MTB

Mondraker 2023 Crafty Size Guide
