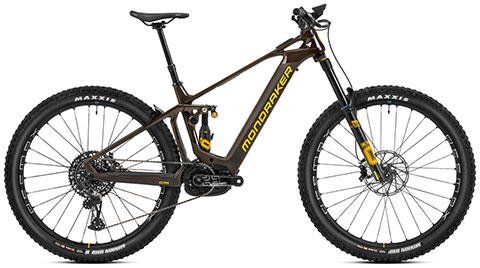

The new Mondraker CRAFTY CARBON XR LTD is a limited edition model, not only because of its limited production or its very special paint job, but also because it’s one of the few models on the market today that comes with Bosch’s new and exclusive Performance Line CX Race motor. A Premium combo of power and exclusivity that make the new Mondraker CRAFTY CARBON XR LTD stand out from the crowd. With very few available worldwide you're going to have to fight to get your hands on one.
Sunset Cycles offers the 2023 Mondraker Crafty Carbon XR LTD full suspension electric mountain bike in Transparent Amber finish with free delivery.
| FRAME | Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers. |
| SIZES | S: 380mm / M: 420mm / L: 450mm / XL: 490mm |
| REAR SHOCK | Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
| SHOCK SETTINGS | C20 compression, R35 rebound. Volume reducers 12.000 (2xF+1D) |
| FORK | Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
| HEADSET | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
| STEM | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
| HANDLEBAR | Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| GRIPS | Onoff Desert, 1lock-on, 135mm |
| SEATPOST | Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm |
| SADDLE | FIZIK Terra Aidon X5 145mm |
| FRONT BRAKE | Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| REAR BRAKE | Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| BRAKE LEVER | Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust |
| RIMS | Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes |
| SPOKES | Mavic straight-pull double butted, contactless lacing |
| FRONT HUB | Mavic, Boost 15x110mm, IS 6 bolts |
| REAR HUB | Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub |
| FRONT TIRE | Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| REAR TIRE | Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| CRANKSET | E.13 TRS Race carbon ebike, 165mm |
| RINGS | Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| CHAIN | Sram NX Eagle, 12s, Powerlock |
| REAR DERRAILLEUR | Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| SHIFT LEVERS | Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click |
| CASSETTE | Sram XG-1275, 10-52T, 12s |
| DERAILLEUR HANGER | SRAM UDH |
| WEIGHT | 23,2 kg |
| DISPLAY | Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller |
| MOTOR | Bosch Performance Line CX-Race (25Km/h) Smart System |
| BATTERY | Bosch Powertube 750Wh |
