Our Price £3,395.00
0% finance from £63.66 per month
To apply for finance, add the product to your basket and then select the finance option
COVID-19 UPDATE: Our online store is fully operational and delivering bikes as normal. Please feel free to contact us with any enquiries.

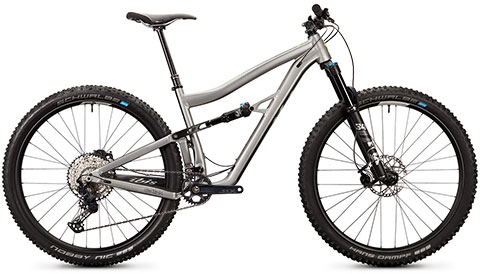

The Ibis Ripley AF is the category-defying, short-travel, singletrack-scorching Ripley - rendered in aluminum, with more aggressive geometry. All the sizzle and pop of the carbon Ripley, now available as a complete bike at a more wallet friendly price.
Sunset Cycles offers the 2021 Ibis Ripley AF Deore 29er trail mountain bike in Pond Scum Green with up to 48 months 0% finance and free delivery.
The 2021 Ibis RIPLEY AF range: Ripley AF Deore (Green) | Ripley AF Deore (Silver) | Ripley AF NX/GX (Green) | Ripley AF NX/GX (Silver)
FORK | Fox Performance Series Float 34, 130mm, 29”, Grip Damper w/ 3 position adjust, 110mm x15mm |
SHOCK | Fox Performance Series Float DPS with EVOL, 190mm x 45mm (light tune on Sm, Med, standard tune on Lg, XL) |
WHEELS | Ibis S35 Aluminum / 29" / Ibis Hubs |
TIRES | Maxxis Aggressor, 29” x 2.5” Dual Compound EXO, TR, WT |
BRAKES | Shimano Deore M6100 2 Piston |
ROTORS (F/R) | Shimano SM-RT66, 180mm |
CRANKSET | Shimano Deore M6100, 24mm Spindle, 30T S/M frame comes with 170mm, L/XL comes with 175mm length cranks. |
BOTTOM BRACKET | Shimano SM BB52 |
REAR DERAILLEUR | Shimano Deore M6100 Shadow Plus |
SHIFTER | Shimano Deore M6100 |
CASSETTE | Shimano Deore M6100 10-51 |
CHAIN | Shimano Deore M6100 |
HEADSET | Cane Creek 40 ZS44/ZS56 |
GRIPS | Lizard Skins Charger Evo |
HANDLEBARS | Ibis 780mm Aluminum Handlebar, 4 x 9 degree bend, 20mm rise, 250g |
STEM | Ibis 31.8mm S/M frame comes with 40mm, L/XL comes with 50mm length stem. |
SEATPOST | KS Rage-i Dropper S frame comes with 125mm, M with 150mm, L/XL 170mm seatpost. |
SADDLE | WTB Silverado, 142mm |
Frame Size | Small | Medium | Large | X Large |
Rider Height Guidance* | 5'0" to 5'5" | 5'4" to 5'9" | 5'8" to 6'1" | 6'0" to 6'6" |
A Seat Tube Length | 368 | 381 | 418 | 482 |
B Top Tube Length | 574 | 603 | 630 | 658 |
C Head Tube Length (4mm stack of lower cup not included) | 90 | 105 | 115 | 125 |
D Chainstay Length | 432 | 432 | 432 | 432 |
E Seat Tube Angle | 76° | 76° | 76° | 76° |
F Head Tube Angle | 65.5° | 65.5° | 65.5° | 65.5° |
G Wheelbase | 1157 | 1188 | 1217 | 1246 |
BB Height (with 2.5 Maxxis Minons) | 335 | 335 | 335 | 335 |
Stack | 599 | 613 | 622 | 631 |
Reach | 425 | 450 | 475 | 500 |
Standover | 676 | 703 | 722 | 759 |
Trail | 114 | 114 | 114 | 114 |
Saddle height for seat tube angle | 650 | 700 | 750 | 800 |
*This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you. |
Frame Material | Aluminium |
Frame Weight | 7.45 lbs with shock |
Wheel Size | 29” |
Front Travel | 130mm |
Rear Travel | 120mm |
Boost Axles | 148mm rear / 110mm front |
Seatpost Diameter | 31.6mm |
Rear Brake | 160mm post mount / 203mm max rotor |
Chainstay Length | 432mm (17 inches) |
Bottom Bracket | Threaded (73mm English threaded) |
Tapered Headtube | ZS44 upper / ZS56 lower |
Colors | Monolith Silver or Pond Scum Green |
Sizes | S / M / L / XL |
Warranty | 7 years |
