Mondraker 2022 Crafty R

Mondraker 2022 Crafty R

Our Price £5,795.00

Save an extra 10% using the SAVE10 voucher code.
Valid for a limited time only and while stocks last!

0% APR finance from £108.66 per month

To apply for finance, add the product to your basket and then select the finance option. Finance is subject to status. Minimum spend applies.

This product is not currently available

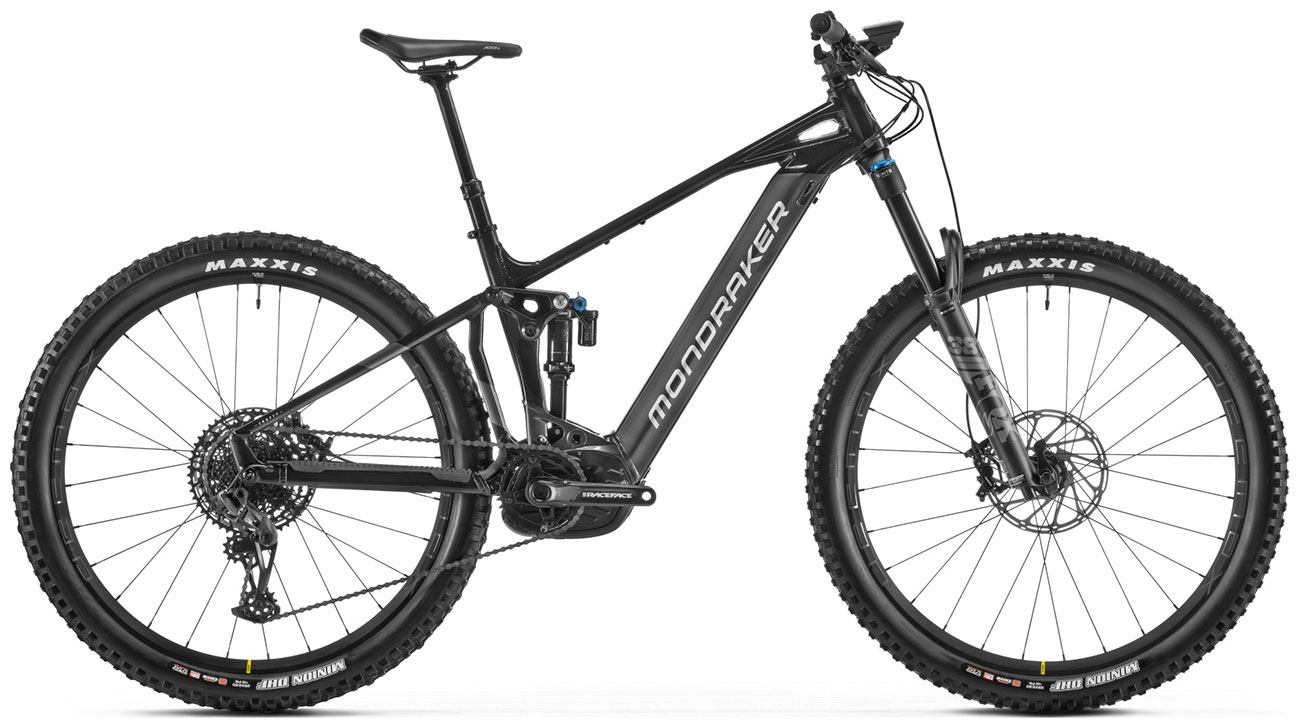

Description: Mondraker Crafty R 2022 Full Suspension e-MTB

Featuring a completely revised frame for 2022 the new Mondraker Crafty benefits from a significant weight reduction, refined suspension kinematics and Bosch CX GEN4 technology.

Featuring our World Cup proven FORWARD GEOMETRY, ZERO SUSPENSION SYSTEM and STEALTH ALLOY the Mondraker Crafty delivers performance and value whilst never compromising on ride quality. Like its Carbon brother, suspension sits at 160mm in the front and 150mm behind, except for the XR which enjoys 170mm of perfect, smooth travel courtesy of the phenomenal Ohlins RXF 38 fork.

Sunset Cycles offers the 2022 Mondraker Crafty R full suspension electric mountain bike in Black-Graphite finish with up to 48 months 0% finance and free delivery.

Full Specification: Mondraker Crafty R 2022 Full Suspension e-MTB

Frame Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Sizes S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings Medium compression, medium rebound, air volume spacer 0.2
Fork Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Headset ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips ONOFF Diamond, 1lock-on, 135mm
Seatpost ONOFF Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm
Saddle FIZIK Terra Aidon X5 145mm
Front brake SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever SRAM G2 R, tool-free reach adjust
Rims Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes Mavic J-bend duble butted, contactless lacing
Front hub Mavic, Boost 15x110mm, IS 6 bolts
Rear hub Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts
Front tire Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear tire Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset Race Face Aeffect ebike, 165mm
Rings SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain SRAM SX Eagle, 12s, Powerlock
Rear derrailleur SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers SRAM Trigger NX Eagle, 12s, X-Actuation 1:1, single click
Casette SRAM PG-1210, 11-50T, 12s
Derailleur hanger Mondraker M068
Weight 25.1 kg
Display Bosch Kiox 300
Motor Bosch Performance Line CX Cruise (25Km/h) GEN4 BS3
Battery Bosch Powertube 750Wh

Size Guide: Mondraker Crafty R 2022 Full Suspension e-MTB

Mondraker 2022 Crafty Size Guide
