Mondraker 2022 Crafty SE

Mondraker 2022 Crafty SE

Our Price £5,495.00

Save an extra 10% using the SAVE10 voucher code.
Valid for a limited time only and while stocks last!

0% APR finance from £103.03 per month

To apply for finance, add the product to your basket and then select the finance option. Finance is subject to status. Minimum spend applies.

Add this product to your basket or calculate finance costs...

Frame Size: Small MPN: 010.22220
Our Price £5,495.00
Frame Size: Medium MPN: 010.22221 In stock and delivered within 2-4 working days
Our Price £5,495.00
Frame Size: Large MPN: 010.22222 In stock and delivered within 2-4 working days
Our Price £5,495.00
Frame Size: X Large MPN: 010.22223 In stock and delivered within 2-4 working days
Our Price £5,495.00

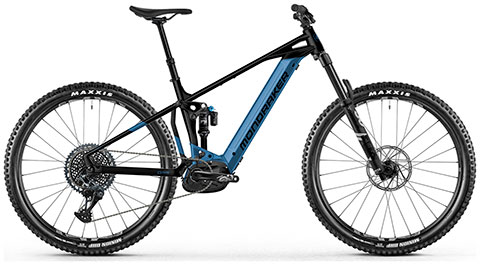

Description: Mondraker Crafty SE 2022 Full Suspension e-MTB

Featuring a completely revised frame for 2022 the new Mondraker Crafty benefits from a significant weight reduction, refined suspension kinematics and Bosch CX GEN4 technology.

Featuring our World Cup proven FORWARD GEOMETRY, ZERO SUSPENSION SYSTEM and STEALTH ALLOY the Mondraker Crafty delivers performance and value whilst never compromising on ride quality. Like its Carbon brother, suspension sits at 160mm in the front and 150mm behind, except for the XR which enjoys 170mm of perfect, smooth travel courtesy of the phenomenal Ohlins RXF 38 fork.

Sunset Cycles offers the 2022 Mondraker Crafty SE full suspension electric mountain bike in Gloss Black / Marlin Blue finish with up to 48 months 0% finance and free delivery.

Full Specification: Mondraker Crafty SE 2022 Full Suspension e-MTB

Frame Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery with integrated alloy cover, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers
Sizes S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings Medium compression, medium rebound, air volume spacer 0.2
Fork Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Headset Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°
Stem Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore
Handlebar Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm barbore
Grips Onoff Diamond, 1lock-on, 135mm
Seatpost Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm
Saddle Fizik Terra Aidon X5 145mm
Front brake Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever Sram G2 R, tool-free reach adjust
Rims Mavic E-Deemax 29, 30mm internal width, welded aluminum, PFP, tubeless ready, 28 spokes
Spokes Mavic, steel double butted, contactless lacing
Front hub Mavic, Boost 15x110mm, IS 6 bolts
Rear hub Mavic, Boost 12x148mm, ID360 ratchet system, IS 6 bolts
Front tire Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear tire Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset Race Face Aeffect ebike, 165mm
Rings Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain Sram SX Eagle, 12s, Powerlock
Rear derrailleur Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
Casette Sram PG-1210, 11-50T, 12s
Motor Bosch Performance Line CX Cruise (25Km/h) GEN4
Battery Bosch Powertube 625Wh
Display Bosch Kiox
Derailleur hanger Mondraker M068

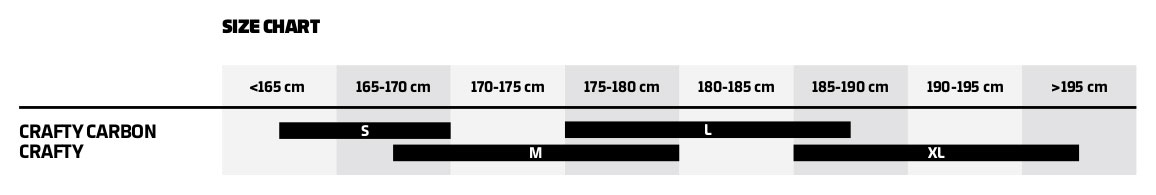

Size Guide: Mondraker Crafty SE 2022 Full Suspension e-MTB

Mondraker 2022 Crafty Size Guide
