Our Price £8,095.00
To apply for finance, add the product to your basket and then select the finance option. Finance is subject to status. Minimum spend applies.

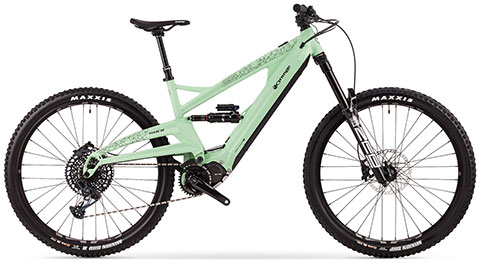

The 170mm travel Orange Phase will take on the biggest terrain, and is not shy when is comes to sending those gaps. Excelling where the uplift doesn't go. Some of the best trails lie beyond where your lift pass takes you – enter the Orange Phase. Big adventures and an e-bike with big ideas, way above the lift station. Fast and sure footed, the stability in the Orange Phase's geometry will give you confidence on any trail.
The new Orange Phase is a revelation and we urge you to try one. E-bikes can be a devisive topic, but once you are bitten by the bug they are hard to resist.
The Orange Phase 29 takes many of its traits from the new Stage 6, 64° head angle, 76° seat angle, reduced offset fork, increased reach and a metric shock but it also incorporates Shimano’s newest battery technology – 8035. The revised battery has meant that we are now able to considerably reduce the size of the down tube, add an On/Off switch to the top tube and the battery is now removable without a key.
The Orange Phase 29 is prepared to go wherever you are willing to take it.
Sunset Cycles offers the 2022 Orange Phase 29 RS full suspension electric-assist mountain bike in Jagger Green finish with up to 48 months 0% finance and free delivery.
|Frame & Fork|
|Tubeset||6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 29. Rear wheel travel: 155.|
|Fork||RockShox Zeb Ultimate 170mm 29|
|Rear Shock||RockShox Super Deluxe Ultimate 230x57.5|
|Headset||Acros 49mm Blocklock for Tapered Steerer|
|Rear Axle||Bolt Type Allen Key Head (Boost 148mm Hub)|
|Wheels & Tyres|
|Wheelset||E13 TRS 30mm (Grey) + Hope Pro 4 (Black) 29|
|Tyres||Maxxis Minion DHF 2.5 3c EXO+ / DHR II 2.4 3c EXO+ 29|
|Crankset||Shimano E8050 34t Ring|
|Chain Device||E13 E Spec Plus Guide|
|Rear Mech||SRAM GX Eagle 12spd|
|Cassette||SRAM XG 1275 10-52t Eagle|
|Shifters||SRAM GX Eagle|
|Bottom Bracket||Shimano EP8 DU Integrated|
|Chain||SRAM NX Eagle|
|Drive Displays||Shimano EM800|
|Drive Units||Shimano EP8|
|Control Switches||Shimano EM800|
|Batteries||Shimano E8036 630wh Integrated battery|
|Brakes||Shimano SLX Trail 203/203|
|Stem||Burgtec Enduro Black 42.5mm|
|Handlebar||Burgtec RideWide Enduro 800mm|
|Grips||Strange Grappler Lock-On|
|Seatpost||SDG Tellis 150mm|
|Saddle||SDG Strange Bel Air III|
|Seat Clamp||Strange Bolted|
|Frame Size||Medium||Large||X Large|
|Rider Height Guidance*||5'3" to 5'8"||5'7" to 6'2"||6'0" to 6'5"|
|Seat Tube Length||17"||18"||19"|
|A. Head Angle||64°||64°||64°|
|B. Seat Angle||76°||76°||76°|
|C. Top Tube||636||653||668|
|D. Top Tube (effective)||625||645||665|
|E. BB Height (from ground)||343||343||343|
|BB height (from axles||-27||-27||-27|
|G. Head Tube||120||120||130|
|H. Wheel base||1274||1294||1315|
|O. Fork Offset||42||42||42|
|T. Rear Travel||155||155||155|
|Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from ground with 740 mm Ø tyre.|
|*This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you.|
