Orange 2022 Phase 29 RS (Orange)

Orange 2022 Phase 29 RS (Orange)

Our Price £8,095.00

Save an extra 10% using the SAVE10 voucher code.
Valid for a limited time only and while stocks last!

0% APR finance from £151.78 per month

To apply for finance, add the product to your basket and then select the finance option. Finance is subject to status. Minimum spend applies.

This product is not currently available

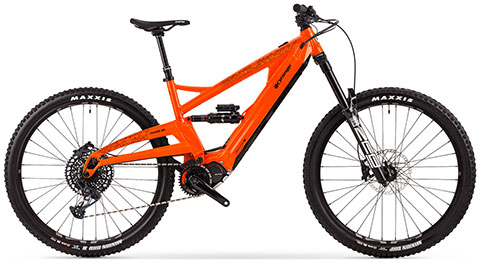

Description: Orange Phase 29 RS (Orange) 2022 Full Suspension E-Bike

The 170mm travel Orange Phase will take on the biggest terrain, and is not shy when is comes to sending those gaps. Excelling where the uplift doesn't go. Some of the best trails lie beyond where your lift pass takes you – enter the Orange Phase. Big adventures and an e-bike with big ideas, way above the lift station. Fast and sure footed, the stability in the Orange Phase's geometry will give you confidence on any trail.

The new Orange Phase is a revelation and we urge you to try one. E-bikes can be a devisive topic, but once you are bitten by the bug they are hard to resist.

The Orange Phase 29 takes many of its traits from the new Stage 6, 64° head angle, 76° seat angle, reduced offset fork, increased reach and a metric shock but it also incorporates Shimano’s newest battery technology – 8035. The revised battery has meant that we are now able to considerably reduce the size of the down tube, add an On/Off switch to the top tube and the battery is now removable without a key.

The Orange Phase 29 is prepared to go wherever you are willing to take it.

Sunset Cycles offers the 2022 Orange Phase 29 RS full suspension electric-assist mountain bike in Fizzy Orange finish with up to 48 months 0% finance and free delivery.

Full Specification: Orange Phase 29 RS (Orange) 2022 Full Suspension E-Bike

Frame & Fork
Tubeset 6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 29. Rear wheel travel: 155.
Colour Jagger Green
Fork RockShox Zeb Ultimate 170mm 29
Rear Shock RockShox Super Deluxe Ultimate 230x57.5
Headset Acros 49mm Blocklock for Tapered Steerer
Rear Axle Bolt Type Allen Key Head (Boost 148mm Hub)
Wheels & Tyres
Wheelset E13 TRS 30mm (Grey) + Hope Pro 4 (Black) 29
Tyres Maxxis Minion DHF 2.5 3c EXO+ / DHR II 2.4 3c EXO+ 29
Drivetrain
Crankset Shimano E8050 34t Ring
Chain Device E13 E Spec Plus Guide
Rear Mech SRAM GX Eagle 12spd
Cassette SRAM XG 1275 10-52t Eagle
Shifters SRAM GX Eagle
Bottom Bracket Shimano EP8 DU Integrated
Chain SRAM NX Eagle
Power Assist
Drive Displays Shimano EM800
Drive Units Shimano EP8
Control Switches Shimano EM800
Batteries Shimano E8036 630wh Integrated battery
Braking
Brakes Shimano SLX Trail 203/203
Finishing Kit
Stem Burgtec Enduro Black 42.5mm
Handlebar Burgtec RideWide Enduro 800mm
Grips Strange Grappler Lock-On
Seatpost SDG Tellis 150mm
Saddle SDG Strange Bel Air III
Seat Clamp Strange Bolted
Pedals Not Included

Size Guide: Orange Phase 29 RS (Orange) 2022 Full Suspension E-Bike

Orange 2022 Phase 29 Frame Geometry
Frame Size Medium Large X Large
Rider Height Guidance* 5'3" to 5'8" 5'7" to 6'2" 6'0" to 6'5"
Seat Tube Length 17" 18" 19"
A. Head Angle 64° 64° 64°
B. Seat Angle 76° 76° 76°
C. Top Tube 636 653 668
D. Top Tube (effective) 625 645 665
E. BB Height (from ground) 343 343 343
BB height (from axles -27 -27 -27
F. Chainstay 458 458 458
G. Head Tube 120 120 130
H. Wheel base 1274 1294 1315
J. Reach 463 483 500
K. Stack 650 650 659
O. Fork Offset 42 42 42
T. Rear Travel 155 155 155
Standover 731 756 780
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from ground with 740 mm Ø tyre.
*This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you.
