Our Price From £6,095.00*
*exact price is dependent on options selected
0% APR finance from £101.58 per month
To apply for finance, add the product to your basket and then select the finance option. Finance is subject to status. Minimum spend applies.
The image above shows the bike in Matt Charcoal Grey frame colour
For those who love their wheels bigger, there's the 29 inch wheeled Orange Stage Evo, it features equally radical geometry numbers, especially for a bike of its category. It majors on adaptability and as such shares the same Evo suspension progression to give our tuned shocks that wonderful bottomless feel. Which wheel size you opt for is a personal choice. If your local terrain brings you long climbs, big descents and teeth chattering root sections the 29er Orange Stage Evo is your perfect rig.
Sunset Cycles offers the 2022 Orange Stage Evo Factory 29 full suspension mountain bike with up to 48 months 0% finance and free delivery.
The 2022 Orange STAGE EVO range: Stage Evo Frame | Stage Evo Factory
| Frame & Fork | |
| Tubeset | 6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 29. Rear wheel travel: 120. |
| Colour | View frame colour options |
| Fork | Fox Factory 36 Float 130mm 29 (black) |
| Rear Shock | Fox Float X Factory 190x45 |
| Headset | Cane Creek 49mm for Tapered Steerer |
| Rear Axle | Bolt Type Allen Key Head (Boost 148mm Hub) |
| Wheels & Tyres | |
| Wheelset | Stans Flow Mk4 + Hope Pro 4 (Black) 29 |
| Tyres | Maxxis Minion DHF 2.5 3C Exo / DHR II 2.4 Exo 29 |
| Drivetrain | |
| Crankset | E13 Helix 32t 170mm |
| Chain Device | E13 Vario Compact Guide |
| Rear Mech | Shimano XT 12spd |
| Cassette | Shimano XT 10-51T 12spd |
| Shifters | Shimano XT 12spd |
| Bottom Bracket | E13 |
| Chain | KMC 12spd |
| Braking | |
| Brakes | Shimano XT Trail 203/180 |
| Finishing Kit | |
| Stem | Hope M35 x 35mm Black |
| Handlebar | Renthal FatBar M35 800mm |
| Grips | Strange Grappler Lock-On |
| Seatpost | Fox Factory Transfer 175mm Drop |
| Saddle | SDG Strange Bel Air III |
| Seat Clamp | Strange Bolted |
| Pedals | Not Included |

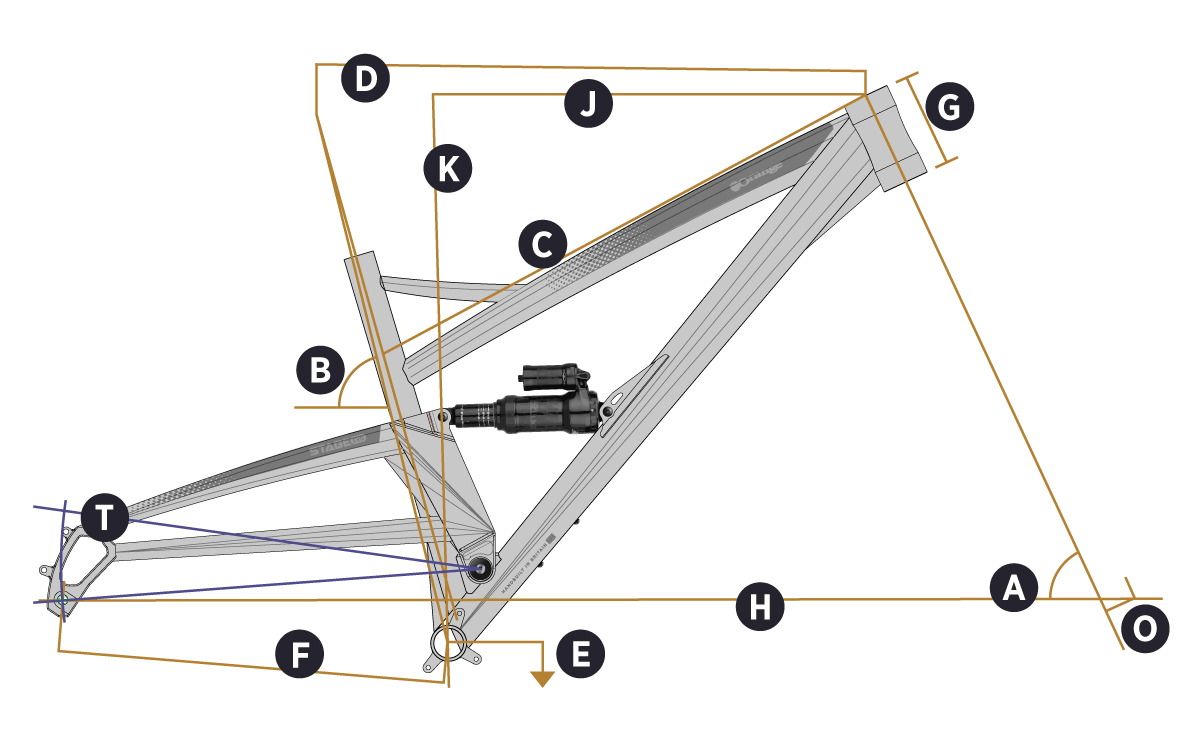

| Frame Size | Small | Medium | Large | X Large |
| Rider Height Guidance* | 5'0" to 5'6" | 5'5" to 5'9" | 5'8" to 6'1" | 5'11" to 6'3" |
| Seat Tube Length | 15" | 17" | 18" | 19" |
| A. Head Angle | 65° | 65° | 65° | 65° |
| B. Seat Angle (Actual) | 74º | 74º | 74º | 74º |
| B. Seat Angle (Effective) | 76º | 76º | 76° | 76º |
| C. Top Tube | 578 | 610 | 618 | 636 |
| D. Top Tube (Effective) | 595 | 615 | 635 | 655 |
| E. BB Height (from ground) | 320 | 320 | 320 | 320 |
| E. BB height (from axles) | -50 | -50 | -50 | -50 |
| F. Chainstay | 443 | 443 | 443 | 443 |
| G. Head Tube | 100 | 100 | 110 | 130 |
| H. Wheel base | 1198 | 1218 | 1240 | 1262 |
| J. Reach | 440 | 460 | 478 | 496 |
| K. Stack | 620 | 620 | 630 | 638 |
| O. Fork Offset | 42 | 42 | 42 | 42 |
| T. Rear Travel | 120 | 120 | 120 | 120 |
| Standover | 690 | 709 | 736 | 762 |
| Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 740 mm Ø tyre. | ||||
| *This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you. | ||||
