Trek 2023 Fuel EX 5 Gen 5 (Black)

Trek 2023 Fuel EX 5 Gen 5 (Black)

Add this product to your basket or calculate finance costs...

Frame Size: Medium/Large (29 wheel) MPN: 5260695 UPC: 601842586938 Available and delivered within 5-7 working days
Our Price £2,325.00
Frame Size: XX Large (29 wheel) MPN: 5260698 UPC: 601842586907 Available and delivered within 5-7 working days
Our Price £2,325.00

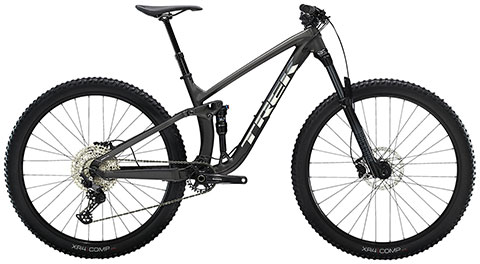

Description: Trek Fuel EX 5 Gen 5 (Black) 2023 Full Suspension Bike

The Trek Fuel EX 5 is a full-suspension trail bike that's ready to handle it all. With trail-taming 140 mm front and 130 mm rear suspension, a Shimano 1x12 drivetrain, a dropper post for getting low on descents and hydraulic disc brakes, the Fuel EX 5 hits the mark as a high-value, high-performance mountain bike with exceptional versatility.

  • You get a high-end ride at an exceptional value with frame features like Boost148 and ABP that give you confident handling and room to upgrade parts as your skills grow
  • It has the capability of far more expensive trail bikes: it shreds singletrack and can even handle the occasional XC or enduro race
  • The dropper post lets you lower your saddle on the fly so it's out of the way on descents
  • The RockShox fork's DebonAir spring can easily be adjusted for a specific rider weight, and it's lighter than a coil spring
  • We expanded our size range to ensure a better fit for all riders. And, you get the fastest wheel that fits your frame: XS frames get 27.5˝ wheels, S frames get to choose between 27.5˝ or 29˝ and sizes M to XL get 29˝ wheels

Sunset Cycles offers the 2023 Trek Fuel EX 5 full suspension bike in Matte Dnister Black finish with up to 36 months 0% finance and free delivery.

Full Specification: Trek Fuel EX 5 Gen 5 (Black) 2023 Full Suspension Bike

Frameset
Frame Alpha Platinum Aluminium, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel
Fork (XS,S) RockShox Recon Silver, DebonAir spring, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, Maxle Stealth, 140 mm travel
Fork (S,M,ML,L,XL,XXL) RockShox Recon Silver, DebonAir spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 140 mm travel
Shock (XS,S) X-Fusion Pro 2, 2-position damper, 210x52.5 mm
Shock (S,M,ML,L,XL,XXL) X-Fusion Pro 2, 2-position damper, 210x55 mm
Wheels
Front Hub Bontrager alloy, 6-bolt, Boost110, 15 mm thru-axle
Rear Hub Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Rims Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
Tyre (XS,S) Bontrager XR4 Comp, wire bead, 30 tpi, 27.5x2.60"
Tyre (S,M,ML,L,XL,XXL) Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60"
Drivetrain
Shifters Shimano Deore M6100, 12-speed
Rear derailleur Shimano Deore M6100, long cage
Crank Shimano MT511, 30T steel ring, 52 mm chainline
Bottom bracket Shimano MT500, 92 mm, PressFit
Cassette Shimano Deore M6100, 10-51, 12-speed
Chain Shimano Deore M6100, 12-speed
Components
Saddle Bontrager Arvada, steel rails, 138 mm width
Seatpost (XS,S) TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Seatpost (S,M,ML,L,XL,XXL) TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
Handlebar Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips Bontrager XR Trail Comp, nylon lock-on
Stem Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
Headset Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom
Brake Shimano hydraulic disc, MT201 lever, MT200 calliper
Brake rotor Shimano RT56, 6-bolt, 180 mm
Weight
Weight M - 15.70 kg/34.62 lb
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

Size Guide: Trek Fuel EX 5 Gen 5 (Black) 2023 Full Suspension Bike

Frame Size Rider Height* (metric) Rider Height* (imperial)
X Small 145 - 155 cm 4'9" - 5'1"
Small 155 - 165 cm 5'1" - 5'5"
Medium 165 - 176 cm 5'5" - 5'9"
Medium/Large 173 - 180 cm 5'8" - 5'11"
Large 177 - 188 cm 5'10" - 6'2"
X Large 188 - 195 cm 6'2" - 6'5"
XX Large 195 - 203 cm 6'5" - 6'8"
*This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you.
