Orange 2023 Phase 29 Pro-Line

Orange 2023 Phase 29 Pro-Line

Add this product to your basket or calculate finance costs...

Frame Size: Medium (17in) MPN: B23PH29PROL-MD
Our Price £7,995.00
Frame Size: Large (18in) MPN: B23PH29PROL-LG
Our Price £7,995.00
Frame Size: X Large (19in) MPN: B23PH29PROL-XL
Our Price £7,995.00

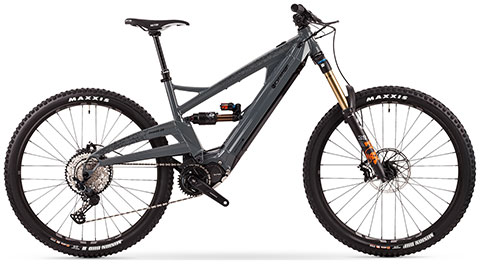

Description: Orange Phase 29 Pro-Line 2023 Full Suspension E-Bike

The new Orange Phase is a revelation and we urge you to try one. E-bikes can be a devisive topic, but once you are bitten by the bug they are hard to resist.

The Orange Phase 29 takes many of its traits from the new Stage 6, 64° head angle, 76° seat angle, reduced offset fork, increased reach and a metric shock but it also incorporates Shimano’s newest battery technology – 8035. The revised battery has meant that we are now able to considerably reduce the size of the down tube, add an On/Off switch to the top tube and the battery is now removable without a key.

With 29” wheels, 170mm travel at the front and 155mm at the rear this bike is prepared to go wherever you are willing to take it.

Sunset Cycles offers the 2023 Orange Phase 29 Pro-Line full suspension electric-assist mountain bike in Norlando Grey finish with up to 48 months 0% finance and free delivery.

The 2023 Orange PHASE 29 range: Phase 29 Pro | Phase 29 Pro-Line | Phase 29 Factory | Phase 29 AXS

Full Specification: Orange Phase 29 Pro-Line 2023 Full Suspension E-Bike

Frame & Fork
Tubeset 6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 29. Rear wheel travel: 155.
Colour Norlando Grey with Black Decals
Fork Fox Factory 38 Float 170mm 29
Rear Shock Fox Float X2 Factory 230x57.5
Headset Acros 49mm Blocklock for Tapered Steerer
Rear Axle Bolt Type Allen Key Head (Boost 12 x 148mm Hub)
Wheels & Tyres
Wheelset Strange Front + Hope Pro 4 Rear, E13 LG1 EN 29
Tyres Maxxis Minion DHF 2.5 3c EXO+ / DHR II 2.4 3c EXO+ 29
Drivetrain
Crankset Shimano M600 165 E 34t
Chain Device E13 E Spec Plus Guide
Rear Mech Shimano SLX 12spd
Cassette Shimano SLX 10-51T 12spd
Shifters Shimano SLX 12spd
Bottom Bracket Shimano EP8 DU Integrated
Chain KMC 12spd
Power Assist
Drive Display Shimano EM800
Drive Unit Shimano EP801
Control Switch Shimano EM800
Battery Shimano E806 630wh Integrated battery Gen 2
Braking
Brakes SRAM Guide RE 200/200
Finishing Kit
Stem Burgtec Enduro Black 42.5mm
Handlebar Burgtec RideWide Enduro 800mm
Grips Strange Grappler Lock-On
Seatpost SDG Tellis 150/170mm
Saddle WTB Silverado SL
Seat Clamp Strange Bolted

Size Guide: Orange Phase 29 Pro-Line 2023 Full Suspension E-Bike

Orange 2022 Phase 29 Frame Geometry
Frame Size Medium Large X Large
Rider Height Guidance* 5'3" to 5'8" 5'7" to 6'2" 6'0" to 6'5"
Seat Tube Length 17" 18" 19"
A. Head Angle 64° 64° 64°
B. Seat Angle 76° 76° 76°
C. Top Tube 636 653 668
D. Top Tube (effective) 625 645 665
E. BB Height (from ground) 343 343 343
BB height (from axles -27 -27 -27
F. Chainstay 458 458 458
G. Head Tube 120 120 130
H. Wheel base 1274 1294 1315
J. Reach 463 483 500
K. Stack 650 650 659
O. Fork Offset 42 42 42
T. Rear Travel 155 155 155
Standover 731 756 780
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from ground with 740 mm Ø tyre.
*This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you.
