Orange 2023 Stage Evo Pro 29

Orange 2023 Stage Evo Pro 29

Add this product to your basket...

Frame Size: Small (15in) MPN: B23STEPRO-SM
Sale Price £3,675.00 (Save 20%) Regular Price £4,595.00
Frame Size: Medium (17in) MPN: B23STEPRO-MD
Sale Price £3,675.00 (Save 20%) Regular Price £4,595.00
Frame Size: Large (18in) MPN: B23STEPRO-LG
Sale Price £3,675.00 (Save 20%) Regular Price £4,595.00
Frame Size: X Large (19in) MPN: B23STEPRO-XL
Sale Price £3,675.00 (Save 20%) Regular Price £4,595.00

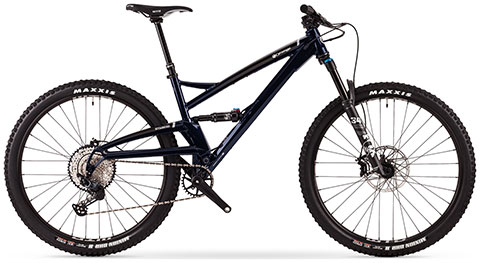

Description: Orange Stage Evo Pro 29 2023 Full Suspension Bike

For those who love their wheels bigger, there's the 29 inch wheeled Orange Stage Evo, it features equally radical geometry numbers, especially for a bike of its category. It majors on adaptability and as such shares the same Evo suspension progression to give our tuned shocks that wonderful bottomless feel. Which wheel size you opt for is a personal choice. If your local terrain brings you long climbs, big descents and teeth chattering root sections the 29er Orange Stage Evo is your perfect rig.

Sunset Cycles offers the 2023 Orange Stage Evo Pro 29 full suspension mountain bike with free delivery.

The 2023 Orange STAGE EVO range: Stage Evo Pro | Stage Evo AXS

Full Specification: Orange Stage Evo Pro 29 2023 Full Suspension Bike

Frame & Fork
Tubeset 6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 29. Rear wheel travel: 120.
Colour Gloss Laser Blue with Silver Decals
Fork Fox Performance 34 Float 130mm 29
Rear Shock Fox Float DPS Performance 190x45
Headset Cane Creek 49mm for Tapered Steerer
Rear Axle Bolt Type Allen Key Head (Boost 12 x 148mm Hub)
Wheels & Tyres
Wheelset WTB ST Light i30 on Strange Pro 29
Tyres Maxxis Minion DHR II 2.4 EXO TR 29
Crankset SRAM SX Eagle 32t
Rear Mech Shimano SLX 12spd
Cassette Shimano SLX 10-51T 12spd
Shifters Shimano SLX 12spd
Bottom Bracket SRAM DUB
Chain KMC 12spd
Brakes SRAM Guide RE 200/180
Finishing Kit
Stem Burgtec Enduro Black 42.5mm
Handlebar Burgtec RideWide Enduro 800mm
Grips Strange Grappler Lock-On
Seatpost SDG Tellis 150/170mm
Saddle WTB Silverado SL
Seat Clamp Strange Bolted

Size Guide: Orange Stage Evo Pro 29 2023 Full Suspension Bike

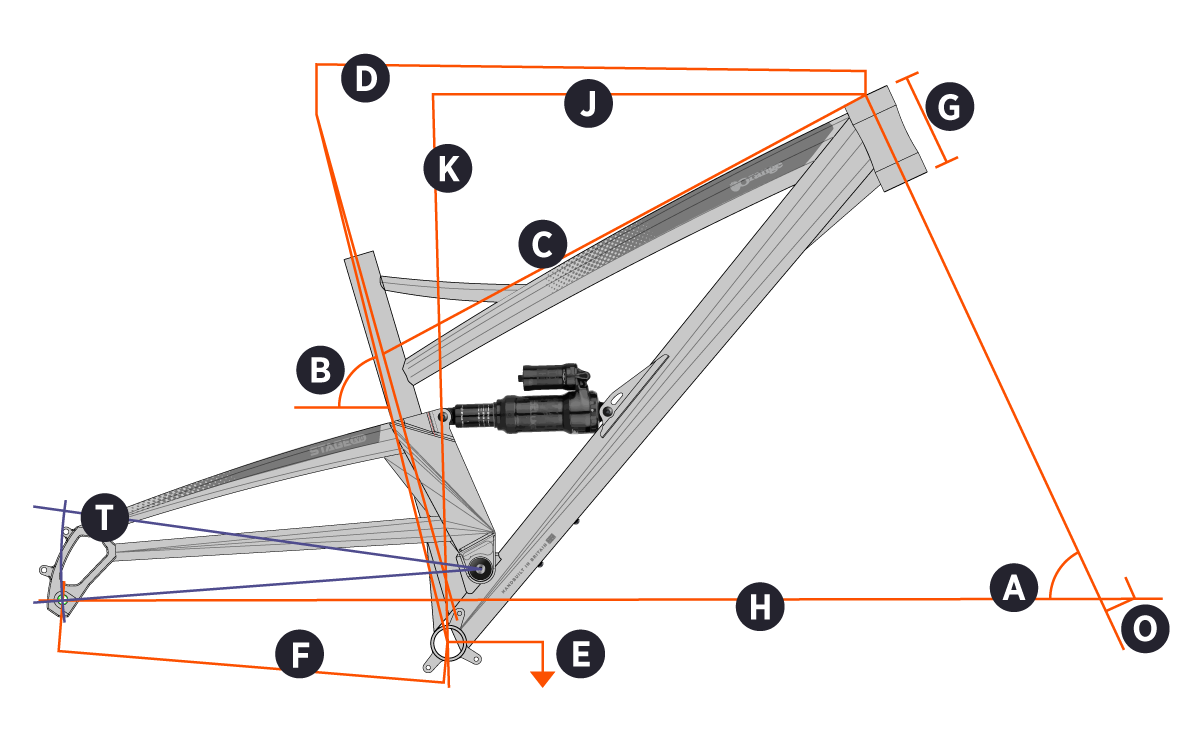

Orange 2023 Stage Evo Frame Geometry
Frame Size Small Medium Large X Large
Rider Height Guidance* 5'0" to 5'6" 5'5" to 5'9" 5'8" to 6'1" 5'11" to 6'3"
Seat Tube Length 15" 17" 18" 19"
A. Head Angle 65° 65° 65° 65°
B. Seat Angle (Actual) 74º 74º 74º 74º
B. Seat Angle (Effective) 76º 76º 76° 76º
C. Top Tube 578 610 618 636
D. Top Tube (Effective) 595 615 635 655
E. BB Height (from ground) 320 320 320 320
E. BB height (from axles) -50 -50 -50 -50
F. Chainstay 443 443 443 443
G. Head Tube 100 100 110 130
H. Wheel base 1198 1218 1240 1262
J. Reach 440 460 478 496
K. Stack 620 620 630 638
O. Fork Offset 42 42 42 42
T. Rear Travel 120 120 120 120
Standover 690 709 736 762
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 740 mm Ø tyre.
*This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you.
