Orange 2023 Charger Factory 27.5

Orange 2023 Charger Factory 27.5

Sale Price £7,195.00 (Save 20%)

Regular Price £8,995.00

Save an extra 10% using the SAVE10 voucher code.
Valid for a limited time only and while stocks last!
(not available with other offers)

0% APR finance from £119.92 per month

To apply for finance, add the product to your basket and then select the finance option. Finance is subject to status. Minimum spend applies.

Add this product to your basket or calculate finance costs...

Total: £7,195.00

Description: Orange Charger Factory 27.5 2023 Full Suspension E-Bike

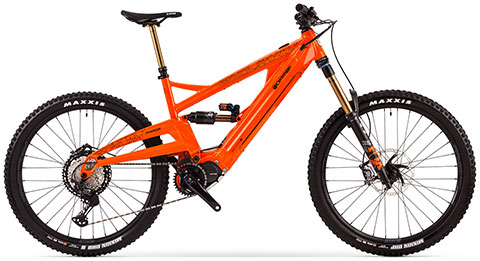

The image above shows the bike in Fizzy Orange frame colour

The new Orange Charger is the E.P.O. bike we all need. If you lust after a hardcore e-bike but think the ambition of the Phase is a little over-the-top then the Orange Charger is the one for you.

Updated for 2023, the new generation Orange Charger incorporates the new Shimano 8036 battery technology which has allowed us to revise of the ergonics of power assist controls.

Think of a it as a re-inforced Five with extra horsepower at the touch of a button. Think of a Five with a charging port and you'll see where the name comes from. We love the Orange Charger - keep the battery topped up and it's the e-bike that's always ready to go. Confident handling and the kind of trail 'pop' that you expect from an Orange - but with added oomph. Sessioning the local woods or lapping your favourite trail centres, the Orange Charger will power you to the top of your favorite tracks time after time. With its 630Wh power cell there's plenty of juice in the tank to go boost and play hard and fast, or just enjoy the extra spinning up those longer climbs in 'eco' mode for longer rides out.

Sunset Cycles offers the 2023 Orange Charger Factory 27.5 full suspension electric-assist mountain bike with up to 48 months 0% finance and free delivery.

The 2023 Orange CHARGER range: Charger S 27.5 | Charger Pro 27.5 | Charger RS 27.5 | Charger Factory 27.5

Full Specification: Orange Charger Factory 27.5 2023 Full Suspension E-Bike

Frame & Fork
Tubeset 6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 27.5. Rear wheel travel: 145.
Fork Fox Factory 36 Float 160mm 27.5 (black)
Rear Shock Fox Float X2 Factory 230x57.5
Headset Acros 49mm Blocklock for Tapered Steerer
Rear Axle Bolt Type Allen Key Head (Boost 12 x 148mm Hub)
Wheels & Tyres
Wheelset Stans Flow Mk4 + Hope Pro 4 (Black)
Tyres Maxxis Minion DHF 2.5 3c EXO+ / DHR II 2.4 3c EXO+ 27.5
Drivetrain
Crankset Shimano XT 165 E 34t
Chain Device E13 E Spec Plus Guide
Rear Mech Shimano XT 12spd
Cassette Shimano XT 10-51T 12spd
Shifters Shimano XT 12spd
Bottom Bracket Shimano EP8 DU Integrated
Chain KMC 12spd
Power Assist
Drive Display Shimano EM800
Drive Unit Shimano EP801
Control Switch Shimano EM800
Battery Shimano E806 630wh Integrated battery Gen 2
Braking
Brakes Shimano XT Trail 203/203
Finishing Kit
Stem Burgtec Enduro Black 42.5mm
Handlebar Renthal FatBar M35 800mm
Grips Strange Grappler Lock-On
Seatpost Fox Factory Transfer 175mm Drop
Saddle SDG Strange Bel Air III
Seat Clamp Strange Bolted

Size Guide: Orange Charger Factory 27.5 2023 Full Suspension E-Bike

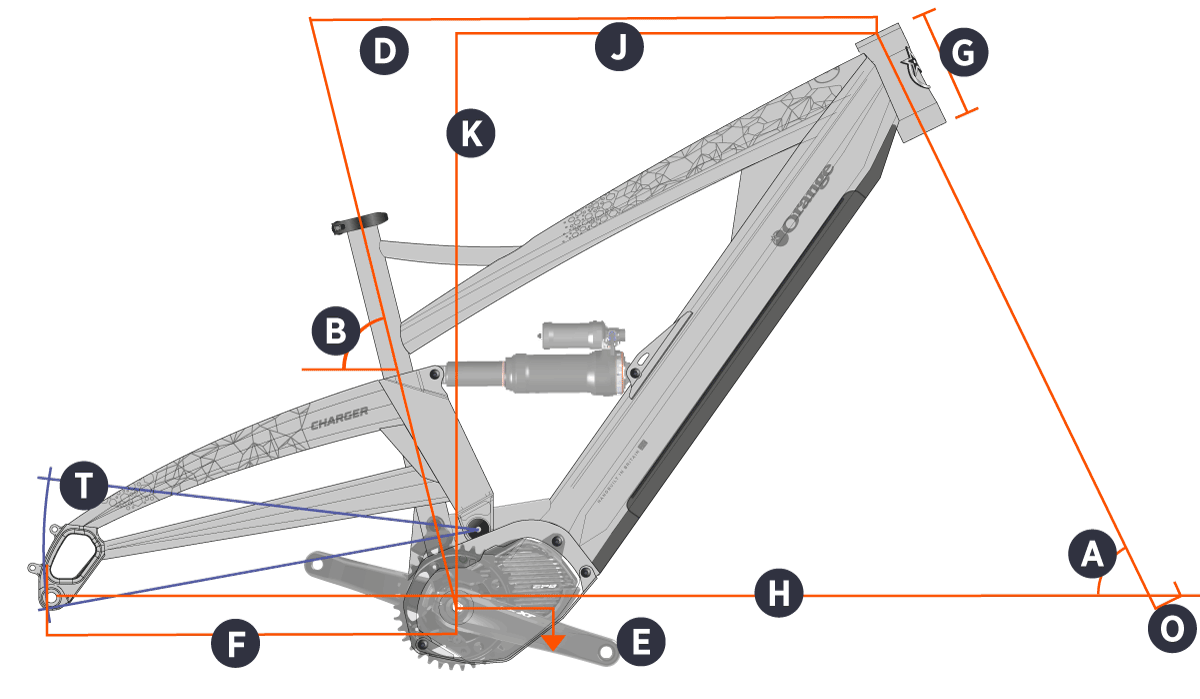

Orange 2023 Charger Frame Geometry
Frame Size Small Medium Large X Large
Rider Height Guidance* 5'0" to 5'6" 5'3" to 5'8" 5'7" to 6'2" 6'0" to 6'5"
Seat Tube Length 16" 17" 18" 19"
A. Head Angle 64° 64° 64° 64°
B. Seat Angle 77° 77° 77° 77°
D. Top Tube (effective) 620 640 660 680
E. BB Height (from ground) 334 334 334 334
BB height (from axles -20 -20 -20 -20
F. Chainstay 441 441 441 441
G. Head Tube 120 120 130 140
H. Wheel base 1248 1268 1290 1313
J. Reach 477 496 514 532
K. Stack 614 614 623 632
T. Rear Travel 150 150 150 150
Standover 720 734 748 774

Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from ground with 710 mm Ø tyre.

*This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you.
