Mondraker 2024 Raze R

Mondraker 2024 Raze R
Mondraker 2024 Raze R

Add this product to your basket...

Frame Size: Small MPN: 010.24093 UPC: 8435392877077
Sale Price £3,199.00 (Save 25%) Regular Price £4,299.00
Frame Size: Medium MPN: 010.24094 UPC: 8435392877084
Sale Price £3,199.00 (Save 25%) Regular Price £4,299.00
Frame Size: Large MPN: 010.24095 UPC: 8435392877091 In stock and delivered within 2-4 working days
Sale Price £3,199.00 (Save 25%) Regular Price £4,299.00
Frame Size: X Large MPN: 010.24096 UPC: 8435392877107
Sale Price £3,199.00 (Save 25%) Regular Price £4,299.00

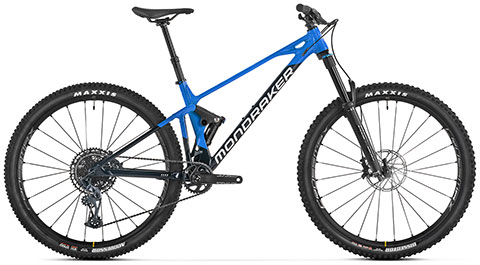

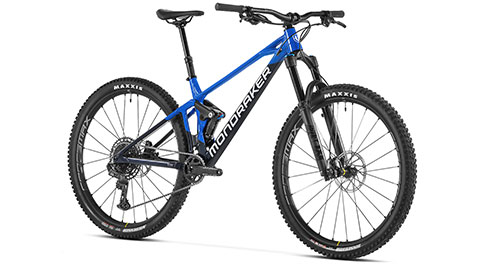

Description: Mondraker Raze R 2024 Trail Bike

Perfect for riders who want a bike that offers the whole package at a reasonable price. The RAZE is the trail bike to offer you the most amazing performance in its category thanks to Mondraker’s exclusive technologies: ALLOY STEALTH EVO, FORWARD GEOMETRY and ZERO SUSPENSION SYSTEM, and all without breaking the bank. Along with the other models in the range, whether carbon or aluminium, the RAZE builds on that same philosophy of enjoying both the ups and the downs thanks to its abundant capabilities at both activities. With 150mm of travel up front and 130mm at the rear, you'll be amazed at how versatile and fun it is. It is truly a bike for everything. The definitive quiver killer.

Sunset Cycles offers the 2024 Mondraker Raze R full suspension trail bike in Midnight Blue finish with free delivery.

Full Specification: Mondraker Raze R 2024 Trail Bike

FRAME Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
SIZES S: 380mm / M: 420mm / L: 470mm / XL: 510mm
REAR SHOCK Fox Float EVOL Performance, 205x57.5mm. Settings: 2-position compression adjustment (Open/Firm), rebound, air preload. Trunnion top mount, 25x8mm bottom bushings
SHOCK SETTINGS Light compression, light rebound, air volume spacer 0.6
FORK Fox 36 29 Float GRIP EVOL Rhythm, 150mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
HEADSET Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
STEM Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
HANDLEBAR Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
GRIPS Onoff Twin, 1lock-on, 135mm
SEATPOST Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
SADDLE Mondraker MDK Series, SRX, steel rail
FRONT BRAKE Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
REAR BRAKE Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
BRAKE LEVER Sram G2 R, tool-free reach adjust, lever pivot bushings
RIMS Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
SPOKES Mavic 24 straight-pull double butted spokes
FRONT HUB Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
REAR HUB Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, HG freehub
FRONT TIRE Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
REAR TIRE Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
CRANKSET Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL 52
RINGS 32T, CNC-machined alloy, X-SYNC 2
BOTTOM BRACKET Sram DUB BSA, sealed bearings, 73mm
CHAIN Sram NX Eagle, 12s, Powerlock
REAR DERRAILLEUR Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
SHIFT LEVERS Sram Trigger NX Eagle, 12s, X-Actuation 1:1
CASSETTE Sram PG-1230, 11-50T, 12s
DERAILLEUR HANGER Sram UDH
WEIGHT 15,4 kg

Size Guide: Mondraker Raze R 2024 Trail Bike

Mondraker 2024 Raze Size Guide
