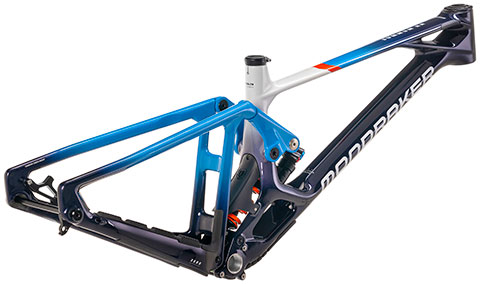

Mondraker 2024 Summum Carbon RR 29 Frameset

Mondraker 2024 Summum Carbon RR 29 Frameset

This product is not currently available

Description: Mondraker Summum Carbon RR 29 Frameset

The Summum downhill mountain bike showcases Mondraker's benchmark Forward Geometry and Zero Suspension System technologies.

Sunset Cycles offers the 2024 Mondraker Summum Carbon RR Frameset in Midnight Blue / White finish with free delivery.

Full Specification: Mondraker Summum Carbon RR 29 Frameset

FRAME Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internal cable routing, MAX. capacity dual row Enduro bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included.
SIZES S / M / L / XL 29" and MX
REAR SHOCK Fox DHX2 Factory Kashima, 225x70mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings
SHOCK SETTINGS ECC010 compression, ECR012 rebound. Spring rate: S size 400 lbs, M size 450 lbs, L/XL size 500 lbs
HEADSET Onoff Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm
STEM Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
DERAILLEUR HANGER Mondraker M075
OTHERS *Geometry kit included: +-1º / +-2º headset cups

Size Guide: Mondraker Summum Carbon RR 29 Frameset

Frame Size Rider Height Guidance*
Small 1.58 - 1.68m
Medium 1.67 - 1.76m
Large 1.75 - 1.86m
X Large 1.85 - 1.95m
*This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you.
