Sale Price £3,099.00 (Save 36%)
Regular Price £4,899.00
0% APR finance from £68.87 per month
To apply for finance, add the product to your basket and then select the finance option. Finance is subject to status. Minimum spend applies.
The Orange Five Evo is exceptional. It out-performs longer travel bikes in a manner you wouldn't believe. Right at the start, we said these bikes are about geometry, and the Orange Five Evo demonstrates how the new Evo geometry works to perfection. This is the 140/130 27.5 wheeled version. Bang on the money for rocky, twisty singletrack trails where surefooted manoeuvrability is your main priority. Its reactive response and composure are inspiring.

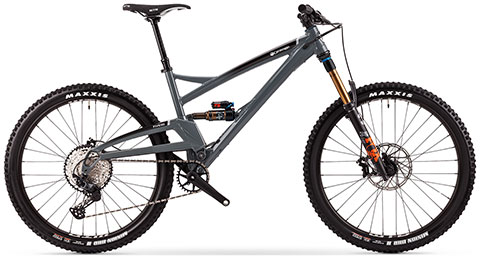

Sunset Cycles offers the 2024 Orange Five Evo Pro-Line 27.5 full suspension mountain bike in Norlando Grey frame colour with up to 36 months 0% finance and free delivery.
Frame & Fork | |
Tubeset | 6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 27.5. Rear wheel travel: 130. |
Colour | Norlando Grey with Black/Silver Decals |
Fork | Fox Factory 36 Float 140mm 27.5 (Black) |
Rear Shock | Fox Float X Factory 190x45 |
Headset | Cane Creek 49mm for Tapered Steerer |
Rear Axle | Bolt Type Allen Key Head (Boost 148mm Hub) |
Wheels & Tyres | |
Wheelset | WTB ST Light i30 on Strange Pro 27 |
Tyres | Maxxis Minion DHR II 2.4 EXO TR 27.5 |
Drivetrain | |
Crankset | Sram GX |
Chain Device | Not Included |
Rear Mech | Shimano SLX 12spd |
Cassette | Shimano SLX 10-51T 12spd |
Shifters | Shimano SLX 12spd |
Bottom Bracket | E13 |
Chain | KMC 12spd |
Braking | |
Brakes | SRAM Guide RE 200/180 |
Finishing Kit | |
Stem | Burgtec Enduro Black 42.5mm |
Handlebar | Burgtec RideWide Enduro 800mm |
Grips | Strange Grappler Lock-On |
Seatpost | KS Ragei 150/170mm Drop |
Saddle | WTB Silverado Steel |
Pedals | Not Included |

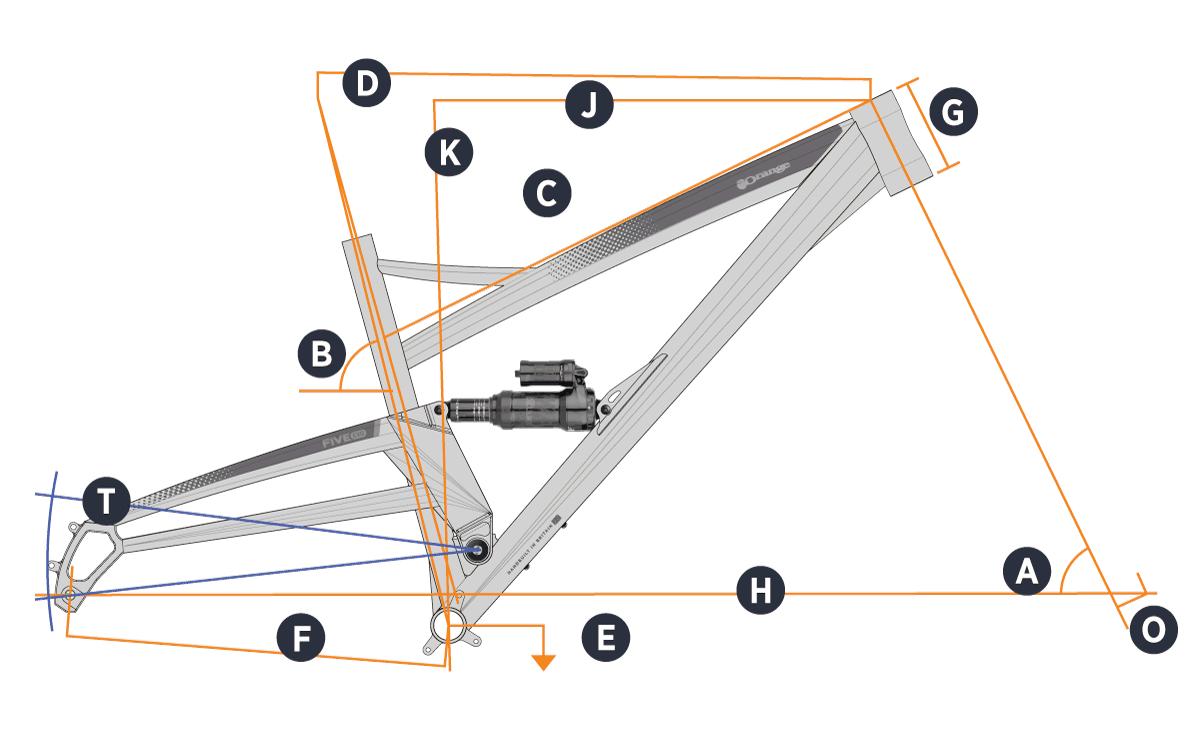

Frame Size | Small | Medium | Large | X Large |
Rider Height Guidance* | 5'0" to 5'6" | 5'5" to 5'9" | 5'8" to 6'1" | 5'11" to 6'3" |
Seat Tube Length | 16" | 17" | 18" | 19" |
A. Head Angle | 64° | 64° | 64° | 64° |
B. Seat Angle (Actual) | 74.5º | 74.5º | 74.5º | 74.5º |
B. Seat Angle (Effective) | 76º | 76º | 76° | 76º |
C. Top Tube | 588 | 607 | 622 | 638 |
D. Top Tube (Effective) | 595 | 615 | 635 | 655 |
E. BB Height (from ground) | 320 | 320 | 320 | 320 |
E. BB height (from axles) | -35 | -35 | -35 | -35 |
F. Chainstay | 435 | 435 | 435 | 435 |
G. Head Tube | 100 | 110 | 110 | 130 |
H. Wheel base | 1196 | 1218 | 1238 | 1262 |
J. Reach | 447 | 464 | 485 | 500 |
K. Stack | 594 | 603 | 603 | 621 |
O. Fork Offset | 37 | 37 | 37 | 37 |
T. Rear Travel | 130 | 130 | 130 | 130 |
Standover | 692 | 712 | 730 | 757 |
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 710 mm Ø tyre. | ||||
*This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you. |
