With instantly recognisable Mondraker aesthetics, the KAOZ is a frame for creative riding and has some unique features. Whether that’s carving concrete bowls; pumping hard packed rollers or boosting off sculpted lips - the Mondraker KAOZ is the bike for expressing yourself.
With a design language that follows the Mondraker DNA, KAOZ is a dirt jump frame with precision engineering and special features. From the headset back - every part of the frame has been considered. The window behind the head tube is more than a design aesthetic - it’s a stiffness link that eliminates unwanted flexing. Steering is accurate and responsive, all the time.
On frames designed around loading into compressions, stiffness at the bottom bracket area is everything. KAOZ has a ‘split-forged’ bottom bracket shell. The most extreme forces converge here, so a unique two-piece forged bottom bracket shell allows for continuity of form towards the chainstays. By eliminating abrupt welds and stress concentrators, KAOZ has exceptional lateral stiffness and superior fatigue resistance. Crucial for withstanding the hardest landings.
Rear brake hose with added length, ready for barspins and tailwhips.
Completing the KAOZ frame are sliding dropouts with integrated brake mount for perfect simultaneous chain tension and brake calliper alignment, maintaining perfect braking geometry without the need for readjustment.
With a focus on durability and simplicity, KAOZ is single speed focussed.

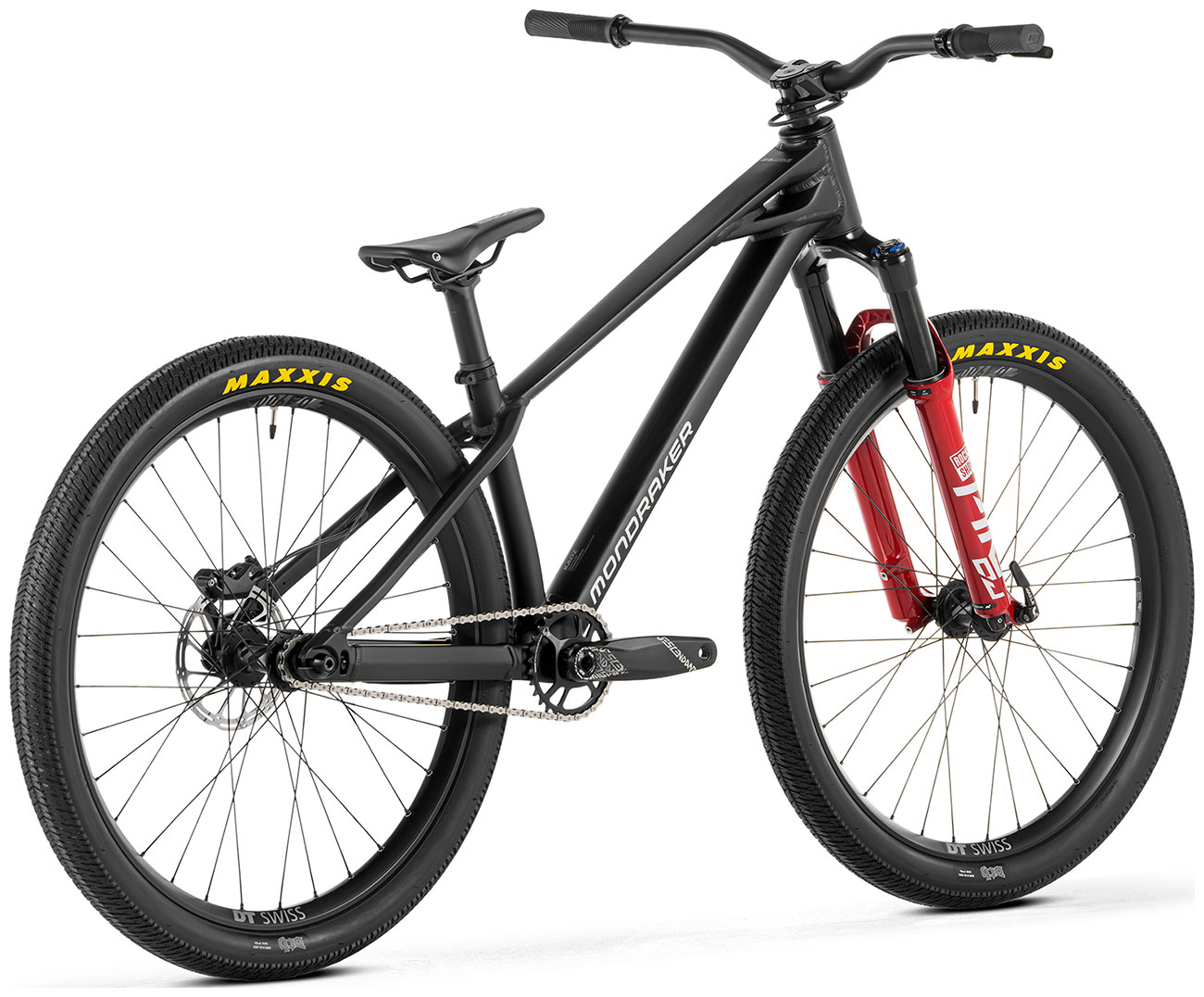

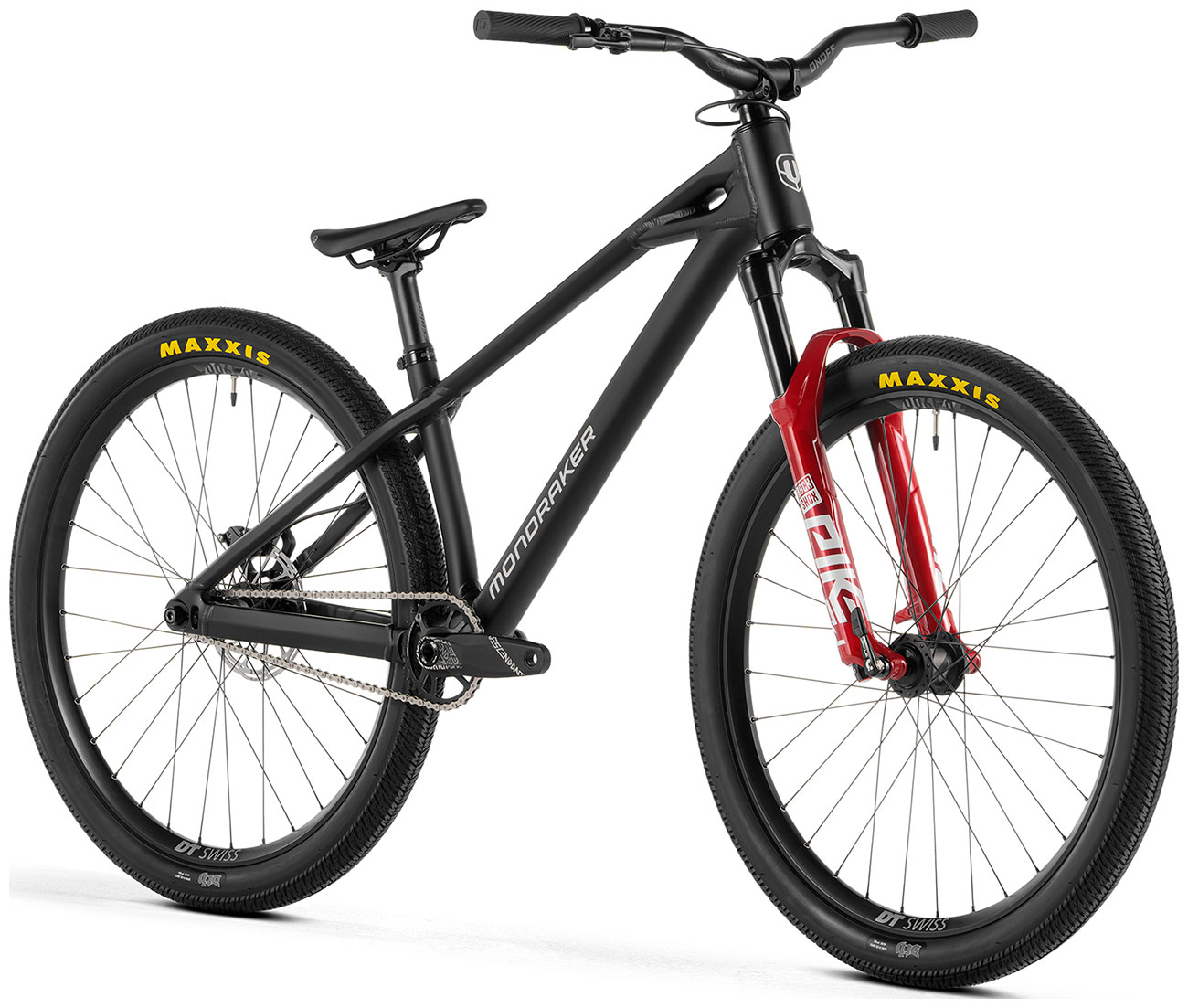

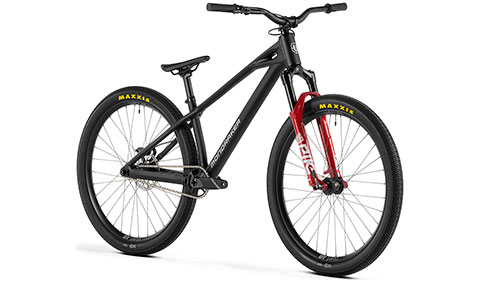

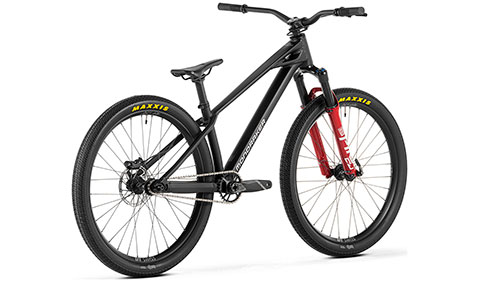

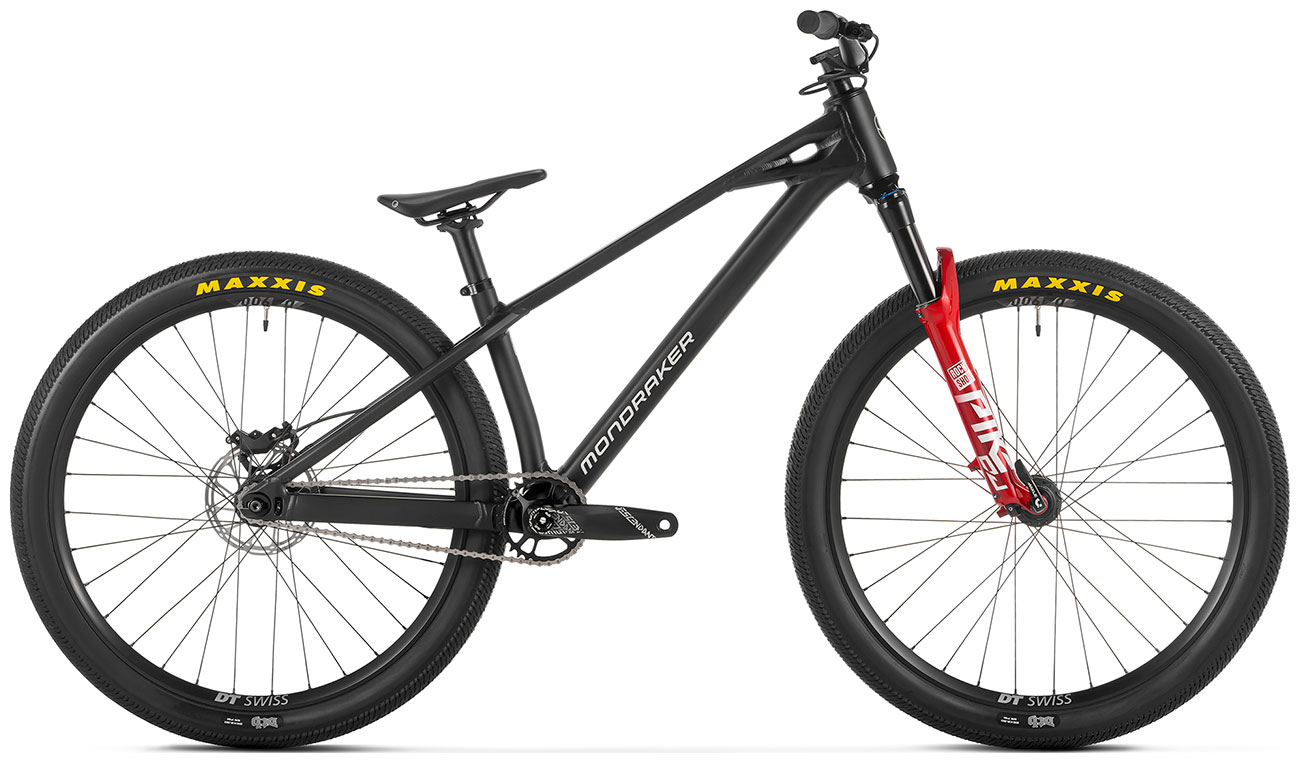

Sunset Cycles offers the 2027 Mondraker Kaoz dirt jump bike in Superblack finish with up to 36 months 0% finance and free delivery.
| FRAME | Kaoz 6061-T6 Stealth Alloy Evo, hydroformed tubing, 26” Forward Geometry, BSA73, 10x135mm rear axle, Sliding Dropouts, Single Speed |
| SIZES | M: 415mm / L: 440mm |
| FORK | RockShox PIKE DJ, 26”, 100mm, Charger damper, tapered steerer tube, 15x100mm axle, 40mm offset |
| HEADSET | Onoff custom ZS56/ZS56, 1-1/8”, 1.2” head tube |
| STEM | Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| HANDLEBAR | Onoff S6 1.5 7050 alloy, rise: 38mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore |
| GRIPS | Onoff Desert Pro, CNC lock-on, 135mm, thin |
| SEATPOST | Onoff S3 DH alloy, diameter 31.6mm, length 300mm |
| SADDLE | Ergon SM10 DH Black |
| REAR BRAKE | Sram DB8, 4-piston caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| BRAKE LEVER | Sram DB8, tool reach adjust, lever pivot bushings |
| RIMS | DT Swiss D 1900 Classic, 30mm internal width, aluminum pinned rim joint, tubeless ready, 32 spokes |
| SPOKES | DT J-bend spokes, DT competition®, black |
| FRONT HUB | DT Swiss 370, 15x100mm, IS 6 bolts |
| REAR HUB | DT Swiss 370 Classichub with 36T Ratchet LN, Singlespeed with sprocket 12T, 10x135mm bolts-on, IS 6 bolts |
| FRONT TIRE | Maxxis DTH 26x2.3, single compound, 60TPI, Tubeless ready, Foldable |
| REAR TIRE | Maxxis DTH 26x2.3, single compound, 60TPI, Tubeless ready, Foldable |
| CRANKSET | Sram Truvativ Descendant 6K, DUB axle, Direct mount chain ring, 165mm CL 49mm |
| RINGS | Sram Eagle 30T, steel, X-Sync 2 |
| BOTTOM BRACKET | Sram DUB BSA, sealed bearings, 73mm |
| CHAIN | Sram PC-1, Singlespeed, PowerLock 1s |
| WEIGHT | 11,2 kg (Size M) |
| Frame Size | Rider Height* (cm) | Rider Height* (inch) |
| Medium | 165-180 cm | 5'5-5'11" |
| Large | 180-195 cm | 5'11-6'5" |
| *This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you. | ||
