Our Price £11,399.00
0% APR finance from £189.98 per month
To apply for finance, add the product to your basket and then select the finance option. Finance is subject to status. Minimum spend applies.
Full carbon. Full power. Crafty. What more do you need to define the ultimate e-bike? Bosch’s new CX-Race motor with its 100Nm of torque, perhaps? That would give you not only the most powerful Crafty ever, but also the most capable. Full carbon and full power speak for themselves… and so does Crafty!
The new Bosch CX-Race motor is 200 grams lighter than the CX version and comes equipped with ceramic bearings, titanium axles, and magnesium casings. Plus, to ensure ultra-precise power delivery whenever you need it, a sensor system measures the force you put into the pedals up to a thousand times per second.

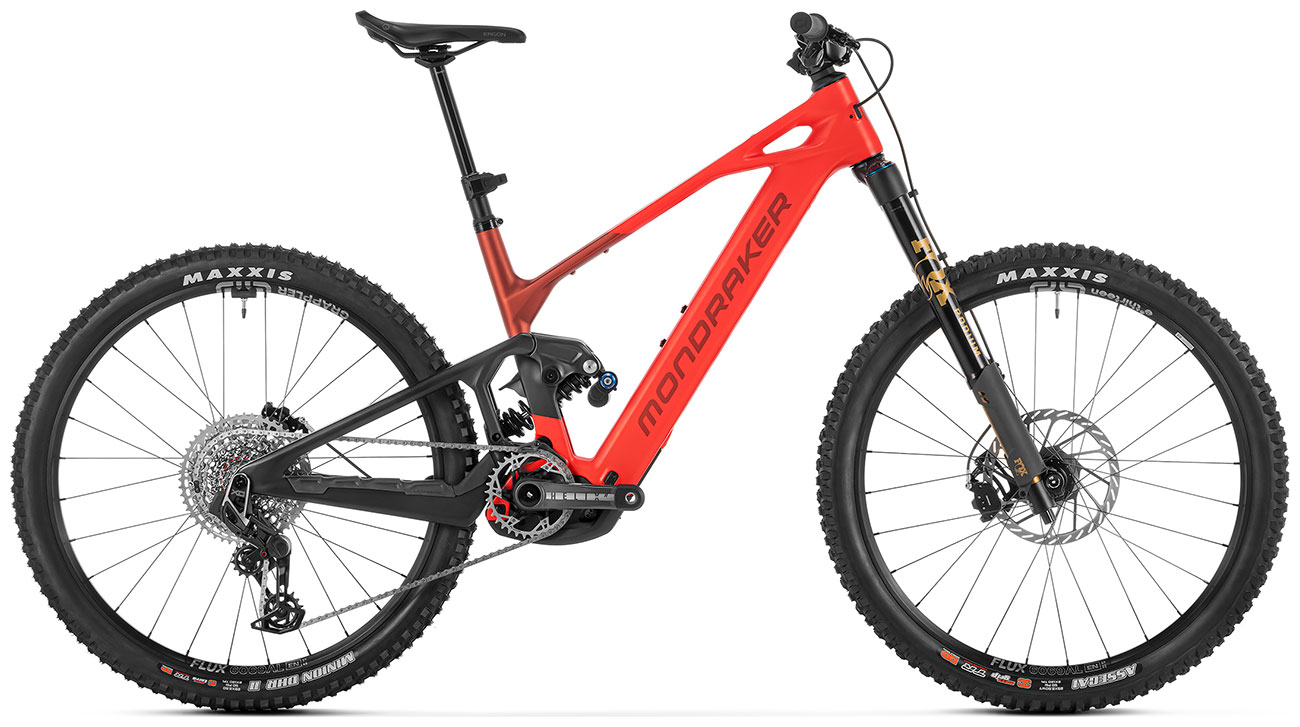

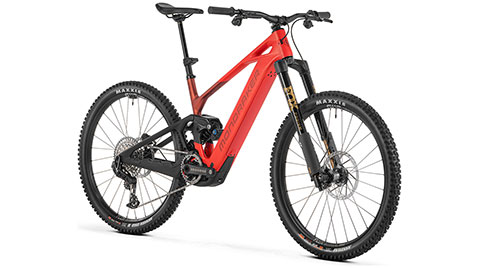

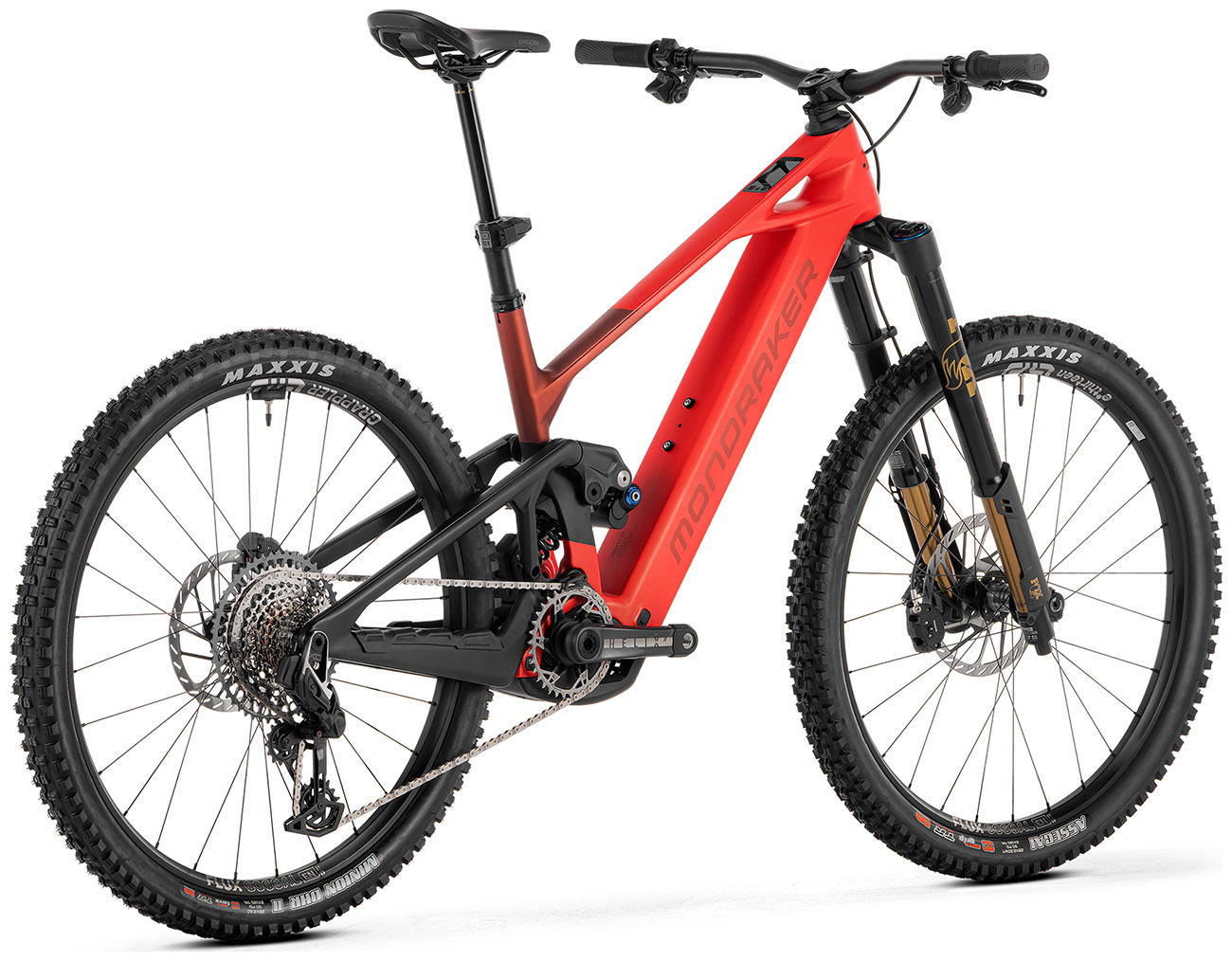

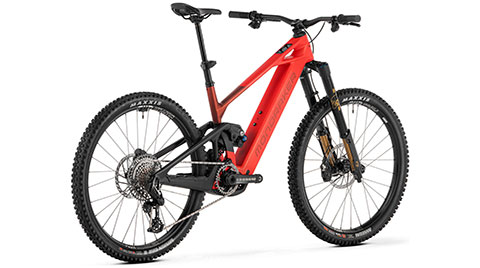

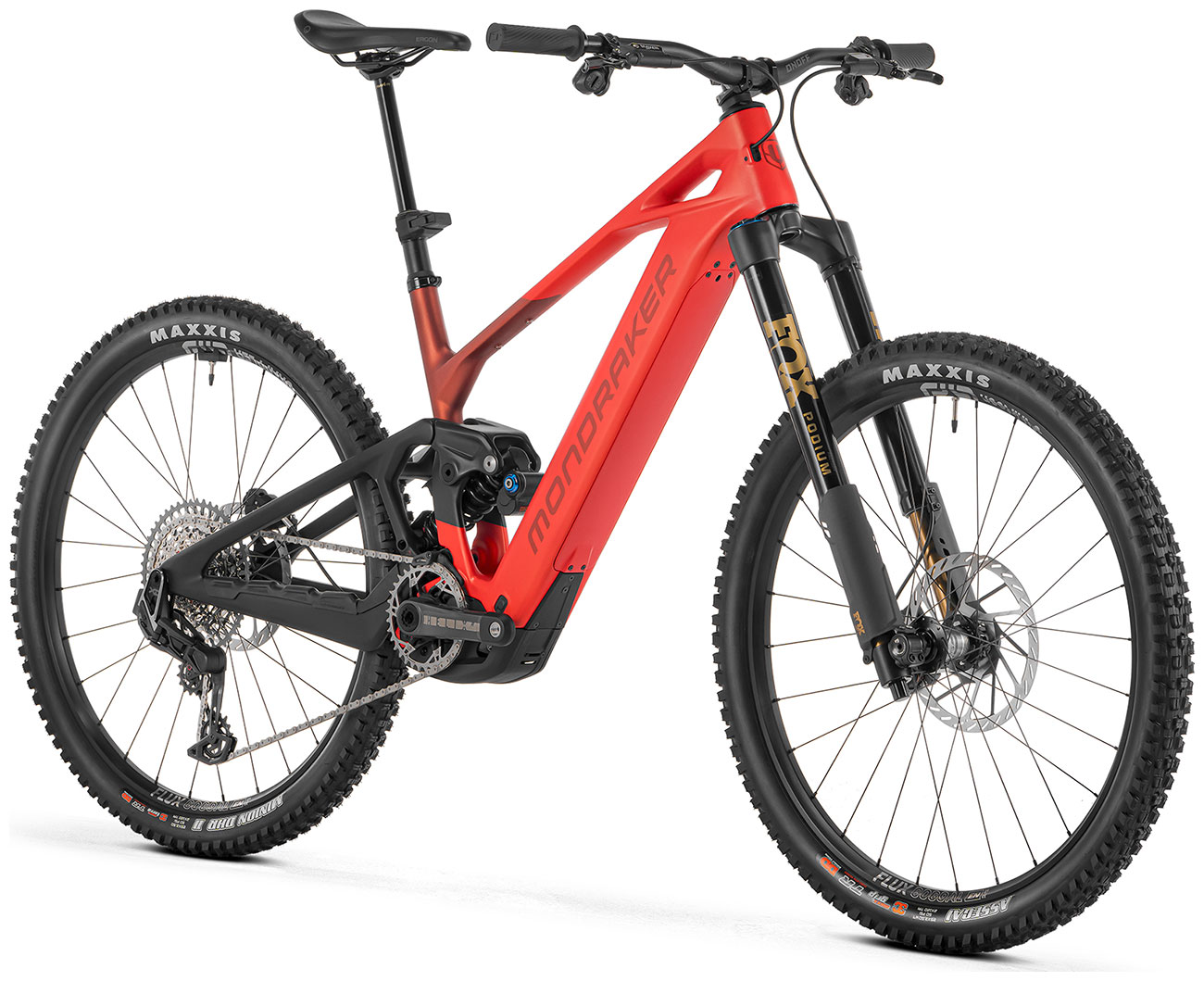

Sunset Cycles offers the 2026 Mondraker Crafty Carbon XR enduro e-bike in Flame Red finish with up to 48 months 0% finance and free delivery.
The 2026 Mondraker CRAFTY CARBON range: Crafty Carbon S (Atomic Orange) | Crafty Carbon S (Vortex Grey) | Crafty Carbon R (Chili Red) | Crafty Carbon R (Golden Silver) | Crafty Carbon RR (Admiral Blue) | Crafty Carbon RR S (Dense Yellow) | Crafty Carbon RR XR (Flame Red) | Crafty Carbon RR SL (Superblack)
| Frame | Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers. |
| Sizes | S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm |
| Rear Shock | Fox DHX2 Factory Kashima, 185x55mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings |
| Shock Settings | CL60 compression, Bleed 0,9, RS60 rebound, Rezi B60, LML, VVCM Spring rate:S size 400 lbs, M size 450 lbs, ML size 500 lbs, L size 550 lbs, XL size 600 lbs |
| Fork | Fox Podium 29 Float GRIPX2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload |
| Headset | Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock |
| Stem | Onoff S9 30mm 0º, Full CNC, 31.8mm barbore |
| Handlebar | Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise. |
| Grips | Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size |
| Seatpost | RockShox Reverb Stealth AXS, diameter 31.6mm S size: 398.2x125mm, M size: 448.2x150mm,ML size: 498.2x175mm, L size: 548.2x200mm, XL size:548.2x200mm |
| Saddle | Ergon SM-10 |
| Front Brake | Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Brake | Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Brake Lever | Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust |
| Rims | e*thirteen Grappler Flux, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
| Spokes | e*thirteen Sapim D-light / Brass |
| Front Hub | e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Boost 12x148mm, Sidekick,12°/15°/18° Adjustable Deadband, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub |
| Front Tire | Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead |
| Rear Tire | Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead |
| Crankset | E.13 Helix Race Carbon E*Spec Plus, All sizes: 160mm |
| Rings | Sram XX Eagle 34T T-Type, direct mount, steel, CL55 |
| Chain | Sram GX Eagle T-Type, 12s, Powerlock |
| Rear Derrailleur | Sram X0 Eagle AXS, T-Type, 12s |
| Shift Levers | Sram Eagle AXS Pod MMX, 12s |
| Cassette | Sram XS-1275, 10-52T, T-Type, 12s |
| Motor | Bosch Performance Line CX R (25Km/h) SMART SYSTEM (BDU386Y) |
| Battery | Bosch Powertube 800Wh |
| Display | Kiox 400C / Bosch Mini Remote |
| Weight | 24,4 kg |
