The new Mondraker Level is here. Peak enduro is here. Our most popular, most advanced, full-power enduro eMTB is back, and it’s been seriously levelled up! With 180mm/170mm travel, the latest Bosch Performance Line CX Gen 5 motor (now with 100Nm of torque), a high-capacity 800Wh removable battery and the option to add a 250Wh range extender… the new Level is built to push boundaries like never before!
Rolling on a mullet setup for sharper, more playful handling, our most capable, aggressive enduro ebike to date brings even more performance and control to your rides. After all, it’s not about the level you’re at, but the level you’re about to unlock.
The flagship of the lineup, the Mondraker Level XR partners with Swedish suspension gurus Öhlins to give you unprecedented tuning and performance. This flagship model boasts the same updated Bosch CX motor (100Nm torque) + 800Wh removable battery as the other builds but with:

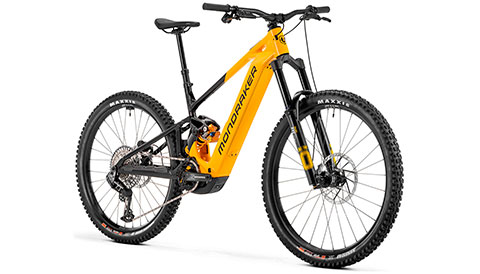

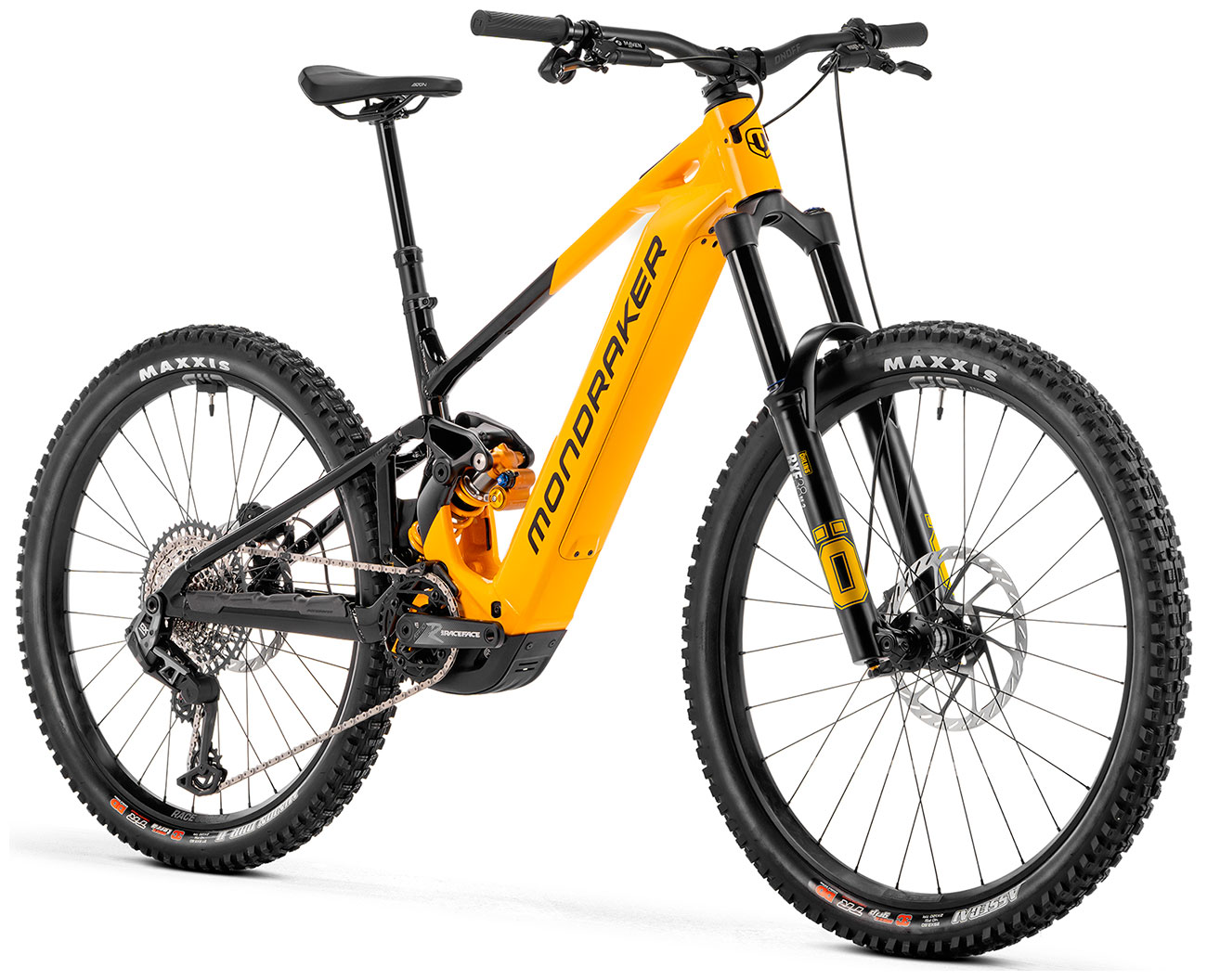

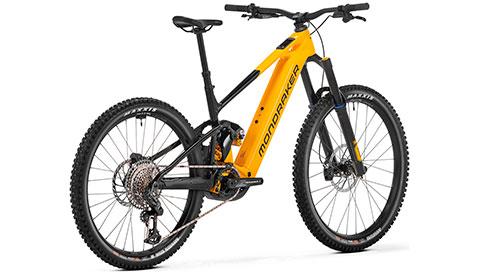

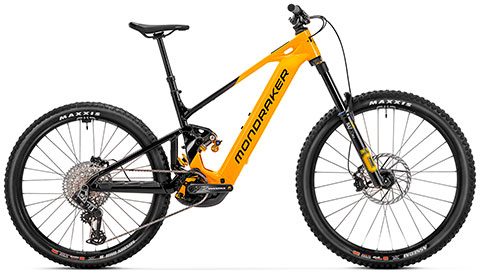

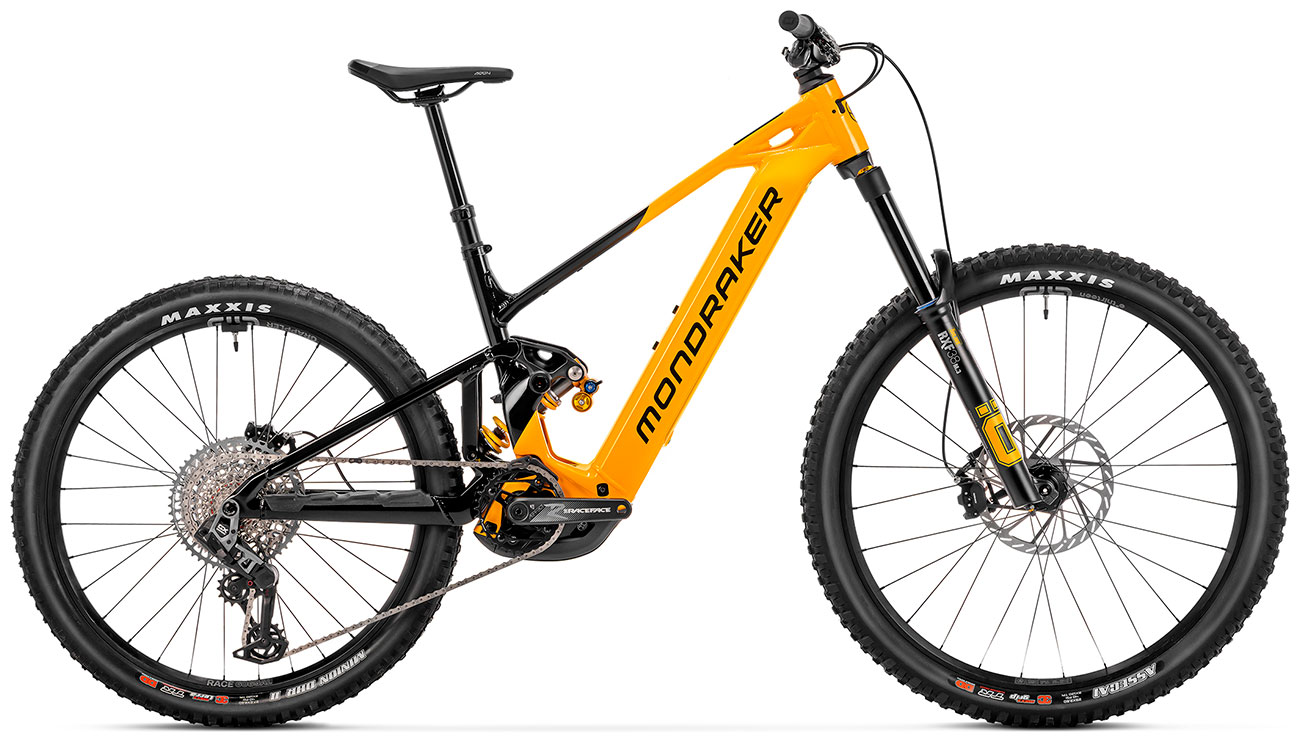

Sunset Cycles offers the 2026 Mondraker Level XR enduro e-bike in Dense Yellow / Superblack finish with up to 48 months 0% finance and free delivery.
| FRAME | Level 6061 Alloy Stealth Evo, Updated Zero Suspension System, Mullet, 170mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, exclusive plastic motor covers |

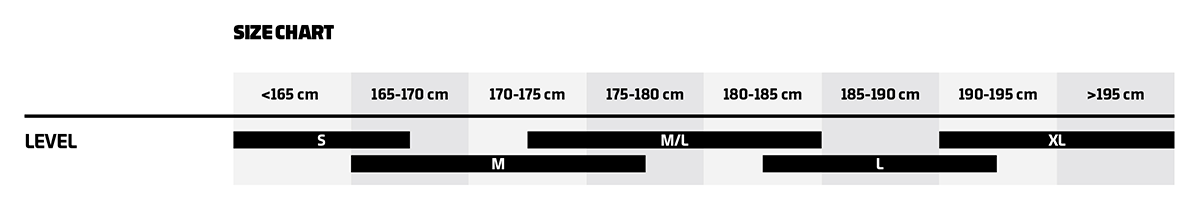

| SIZES | S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm |
| REAR SHOCK | Öhlins TTX22M.2 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings |
| SHOCK SETTINGS | C10 compression, R20 rebound. Spring rate: S size 343 lbs, M size 411 lbs, size ML 457 lbs, L size 502 lbs, XL size 502 lbs |
| FORK | Öhlins RXF 38 M.3 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
| HEADSET | Onoff ZS44/ZS56, 1-1/8”, 1.5” head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º |
| STEM | Onoff S9 30mm 0º, Full CNC, 31.8mm barbore |
| HANDLEBAR | Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise. |
| GRIPS | Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size |
| SEATPOST | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm) |
| SADDLE | FIZIK Terra Aidon X5 145mm |
| FRONT BRAKE | Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| REAR BRAKE | Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| BRAKE LEVER | Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust |
| RIMS | e*thirteen Grappler Race, Hookless 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27’5 rear |
| SPOKES | e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers |
| FRONT HUB | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| REAR HUB | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub |
| FRONT TIRE | Maxxis Assegai 29x2.6WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead |
| REAR TIRE | Maxxis Minion DHR II 27’5x2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead |
| CRANKSET | Race Face Aeffect ebike, All sizes: 160mm |
| RINGS | Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55 |
| CHAIN | Sram GX Eagle T-Type, 12s, Powerlock |
| REAR DERAILLEUR | Sram GX Eagle AXS T-Type,12s |
| SHIFT LEVERS | Sram Eagle AXS Pod MMX, 12s |
| CASSETTE | Sram XS-1275, 10-52T, T-Type, 12s |
| MOTOR | Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y) |
| BATTERY | Bosch Powertube 800Wh |
| DISPLAY | Kiox 400 / Bosch Mini Remote |
| WEIGHT | 25,9 kg |
