Introducing the next generation of Crafty Carbon. The latest iteration of our most successful e-Bike bar none. Totally redesigned with nothing left untouched, yet clearly, unmistakably a Crafty and still with all the character that’s defined the model since the day it was launched.
The ultimate enduro bike in our full power mountain bike category, it comes with 29” wheels and 160/150mm of travel. The Crafty Carbon range is available in 5 different builds, all with a carbon fibre frame guaranteeing versatility and endurance on the harshest of terrains. With its totally redesigned frame and aesthetics, the new Crafty Carbon range also incorporates the very latest edition of the Zero Suspension System to give you more grip and control than ever before.

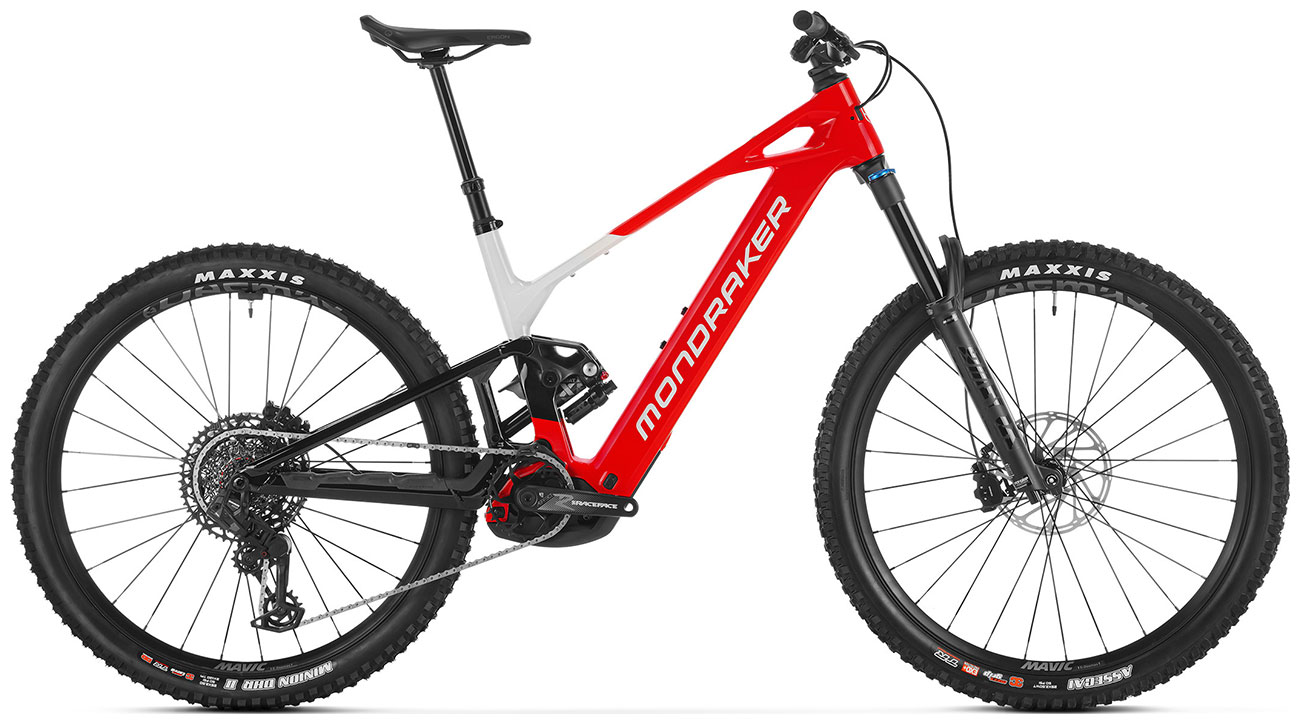

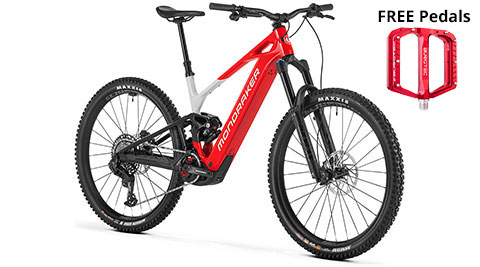

Sunset Cycles offers the 2026 Mondraker Crafty Carbon R enduro e-bike in Chili Red finish with up to 48 months 0% finance and free delivery.
The 2026 Mondraker CRAFTY CARBON range: Crafty Carbon S (Atomic Orange) | Crafty Carbon S (Vortex Grey) | Crafty Carbon R (Chili Red) | Crafty Carbon R (Golden Silver) | Crafty Carbon RR (Admiral Blue)
| FRAME | Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers. |
| SIZES | S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm |
| REAR SHOCK | Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| SHOCK SETTINGS | CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer |
| FORK | Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
| HEADSET | Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock |
| STEM | Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore |
| HANDLEBAR | Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise. |
| GRIPS | Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size |
| SEATPOST | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm) |
| SADDLE | Ergon SM-10 |
| FRONT BRAKE | Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| REAR BRAKE | Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| BRAKE LEVER | Sram Maven Base , SwingLink and lever pivot bushings, tools-free reach adjust |
| RIMS | Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
| SPOKES | Mavic J-bend double butted, contactless lacing |
| FRONT HUB | Mavic, Boost 15x110mm, IS 6 bolts |
| REAR HUB | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub |
| FRONT TIRE | Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead |
| REAR TIRE | Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead |
| CRANKSET | Race Face Aeffect-R ebike, 160mm |
| RINGS | Sram Eagle 34T T-Type, direct mount, steel, CL55 |
| CHAIN | Sram GX Eagle T-Type, 12s, Powerlock |
| REAR DERAILLEUR | Sram S1000 Eagle AXS T-Type, 12s |
| SHIFT LEVERS | Sram Eagle AXS Pod MMX, 12s |
| CASSETTE | Sram XS-1270, 10-52T, T-Type, 12s |
| DISPLAY | Kiox 400 / Bosch Mini Remote |
| MOTOR | Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y) |
| BATTERY | Bosch Powertube 800Wh |
| WEIGHT | 23,9 kg |
