Fully loaded bikepacking, fast and light off-road adventures, gravel and CX racing… or simply exploring your favorite tracks and trails. The Marin Headlands is a high tech, high-spec carbon fiber gravel and adventure bike that’s made to be lightning-fast, confidence-inspiring and super comfortable on all surfaces.
We’ve taken our own unidirectional carbon fiber frame, added mountain bike-inspired geometry, loads of tire clearance and a whole heap of mounting points for gear and fenders to create a super versatile, super capable all-terrain dart of a bike. Go 700c with room for up to 45mm tires or 650b up to 47mm.

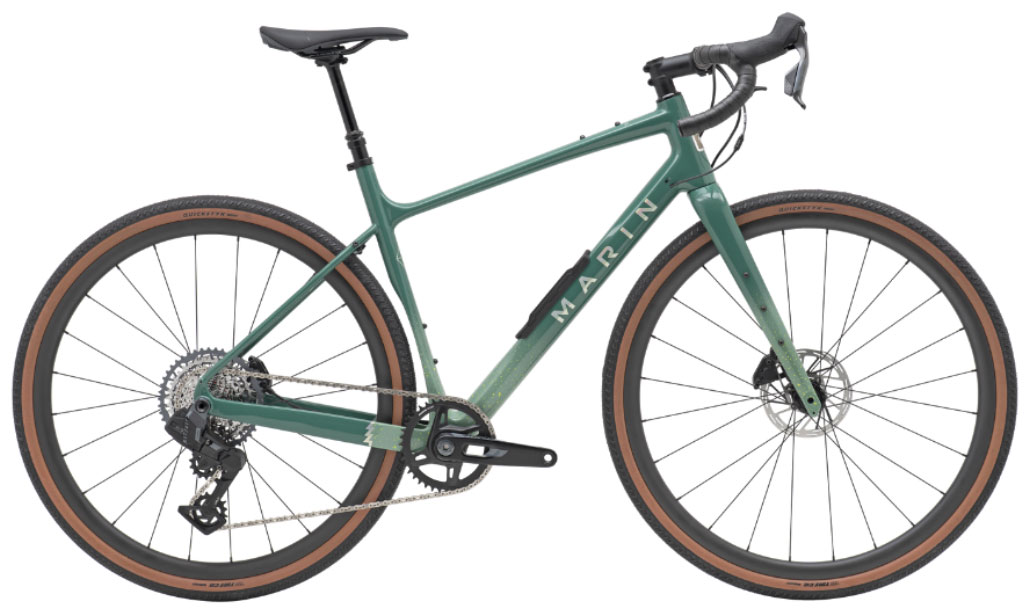

The Marin Headlands 3, the creme de la creme, the king of the crop - our top tier build for gravel nirvana. The same carbon frame and fork with our in frame Bear Box storage is now adorns with a full 1 x 13 Sram Rival wireless transmission, Sram Rival hydraulic disc brakes, a TransX dropper post and a stiff, light and efficient Novatec G24 carbon wheelset. A Marin finishing kit tops off the boutique build list - we're very excited for this one!
Sunset Cycles offers the 2026 Marin Headlands 3 gravel bike in Dark/Light Green and Holographic Green finish with up to 36 months 0% finance and free delivery.
| Frame | Unidirectional Carbon Beyond Road Platform, 1x Drivetrain Specific, 700c x 50mm Compatible, Flat Mount Disc, 142x12mm Thru-Axle, UDH Dropout, Internal Housing Routing, Mudguard and Rear Carrier Mounting, Bear Box Downtube Storage |
| Fork | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Rims | Novatec, G24 Carbon, 24mm Internal, 24 Hole, Tubeless Compatible |
| Hub Rear | Forged Aluminum Alloy, Disc, 24H |
| Hub Front | Forged Aluminum Alloy, Disc, 24H, XD Driver |
| Spokes | Double Butted Stainless |
| Tires | Vee Tire Co., Quikstyk, 700x45,Folding Bead, Tubeless Compatible |
| Derailleur Rear | SRAM Rival XPLR, 13-Speed |
| Shift Lever | SRAM Rival XPLR, Wireless |
| Crankset | SRAM Rival XPLR, 40T |
| Bottom Bracket | SRAM DUB BSA |
| Chain | SRAM Rival 13-Speed |
| Cassette | SRAM CS-XG-1351, 10-46T |
| Brakes Front | SRAM Rival XPLR Flat-Mount Hydraulic Disc, 160mm Rotor |
| Brakes Rear | SRAM Rival XPLR Flat-Mount Hydraulic Disc, 160mm Rotor |
| Brake Levers | SRAM Rival XPLR w/ Inegrated Shifter |
| Handlebar | Marin Butted Alloy, Compact 16º Flared Drop |
| Stem | Marin 3D Forged Alloy |
| Grips | Marin Shock Absorbing Tape |
| Headset | FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
| Seatpost | TranzX YSP38J, Size 49-54 70mm, Size 56-60 110mm Travel, 27.2mm |
| Saddle | Marin Beyond Road Concept Elite |
| Extras | Bolt-On Thru-Axles F and R |
| Frame Size | Rider Height Guidance* |
| 49cm | 4'11" to 5'3" |
| 52cm | 5'3" to 5'6" |
| 54cm | 5'6" to 5'9" |
| 56cm | 5'9" to 6'0" |
| 58cm | 6'0" to 6'2" |
| 60cm | 6'2" to 6'4" |
| *This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you. | |
