Our Price £2,000.00
0% APR finance from £50.00 per month
To apply for finance, add the product to your basket and then select the finance option. Subject to affordability, age and status. Minimum spend applies.

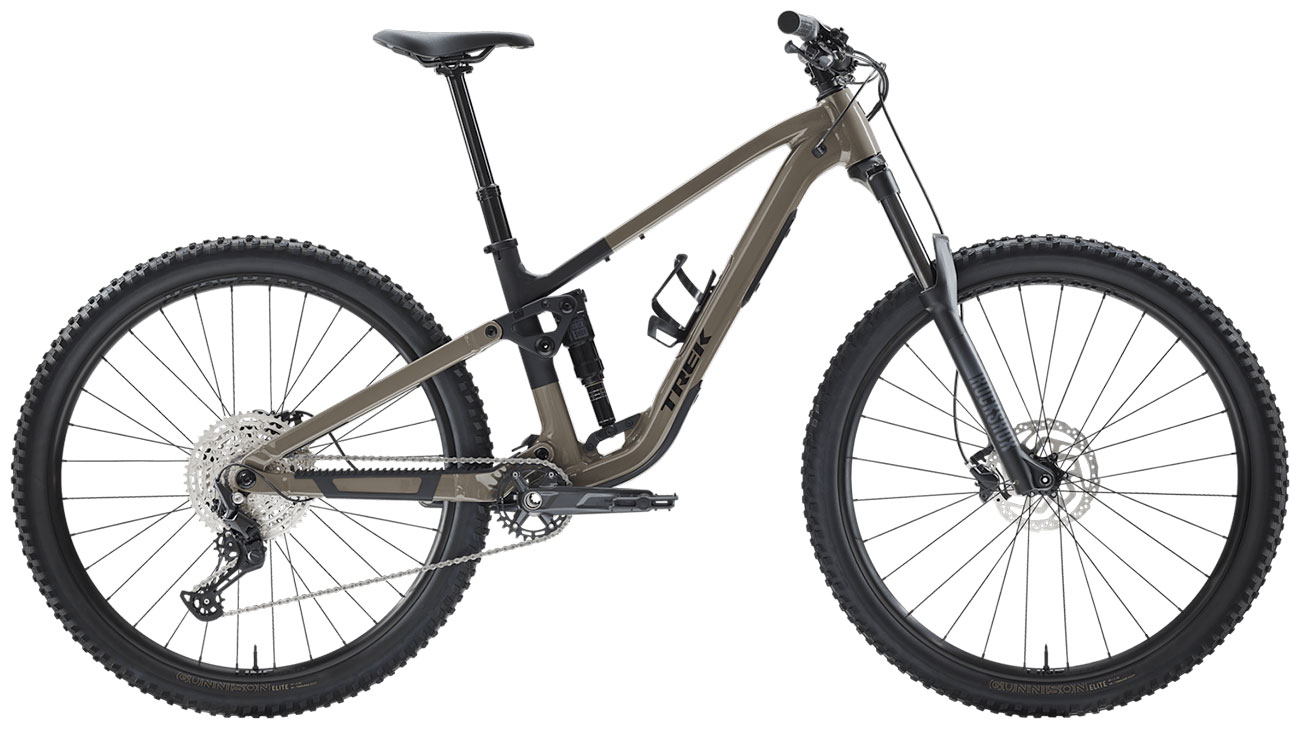

The Trek Fuel EX 5 is an aluminium trail bike built for total versatility wherever you ride. It comes with a RockShox Recon Silver fork and RockShox Deluxe Select suspension, tubeless-ready wheels, a 12-speed Shimano Deore drivetrain, and a TranzX dropper post, so you're ready for anything.
Sunset Cycles offers the 2027 Trek Fuel EX 5 Gen 7 trail bike in Wild Mushroom/Trek Black finish with up to 36 months 0% APR finance and free delivery.
| Frame & Fork | |
| Frame | Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm |
| Fork | RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel |
| Shock | RockShox Deluxe Select, 205mm x 60mm |
| Wheels & Tyres | |
| Hub front | Shimano TC500 alloy, CentreLock, 110x15 mm thru axle |
| Hub rear | Shimano TC500 alloy, CentreLock, 148x12 mm thru axle |
| Rim | Size: S, M, L, XL Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve Size: S, M, L, XL Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve |
| Tyre | Size: S, M, L, XL Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40" Size: S Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40" |
| Drivetrain | |
| Shifter | Shimano Deore M6200 |
| Rear derailleur | Shimano Deore M6200, long cage |
| Crank | Shimano MT520 Deore, 30T ring, 55mm chainline, 165mm length |
| Bottom bracket | Shimano BB-MT501 BSA |
| Cassette | Shimano M6200, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12-speed |
| Components | |
| Saddle | Bontrager Verse Short, stainless steel rails |
| Seatpost | Size: S TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mm Size: M, L, XL TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm |
| Handlebar | Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width |
| Grips | Trek Line Comp, nylon lock-on |
| Stem | Bontrager Comp, 31.8 mm, 7-degree, 35 mm length |
| Head set | FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown |
| Brake | Shimano hydraulic disc, MT201 lever, MT200 calliper |
| Brake rotor | Shimano RT10, CenterLock, 180 mm |
| Weight | |
| Weight | M - 16.88 kg / 37.22 lbs (with TLR sealant, no tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lbs). |
| Frame Size | Rider Height* (metric) | Rider Height* (imperial) |
| Small | 155 - 165 cm | 5'1" - 5'5" |
| Medium | 165 - 176 cm | 5'5" - 5'9" |
| Large | 177 - 188 cm | 5'10" - 6'2" |
| X Large | 188 - 195 cm | 6'2" - 6'5" |
| *This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you. | ||
