Our Price £8,250.00
0% APR finance from £154.69 per month
To apply for finance, add the product to your basket and then select the finance option. Finance is subject to status. Minimum spend applies.
Step 1: Add the bike to your basket by clicking a Pre-order button alongside the required frame size.
Step 2: On the basket page, click the Secure Checkout button and follow instructions to register/log-in and specify your delivery address.
Step 3: During the checkout process, select the £200 deposit option and proceed to the payment page where you can pay by debit/credit card or PayPal.

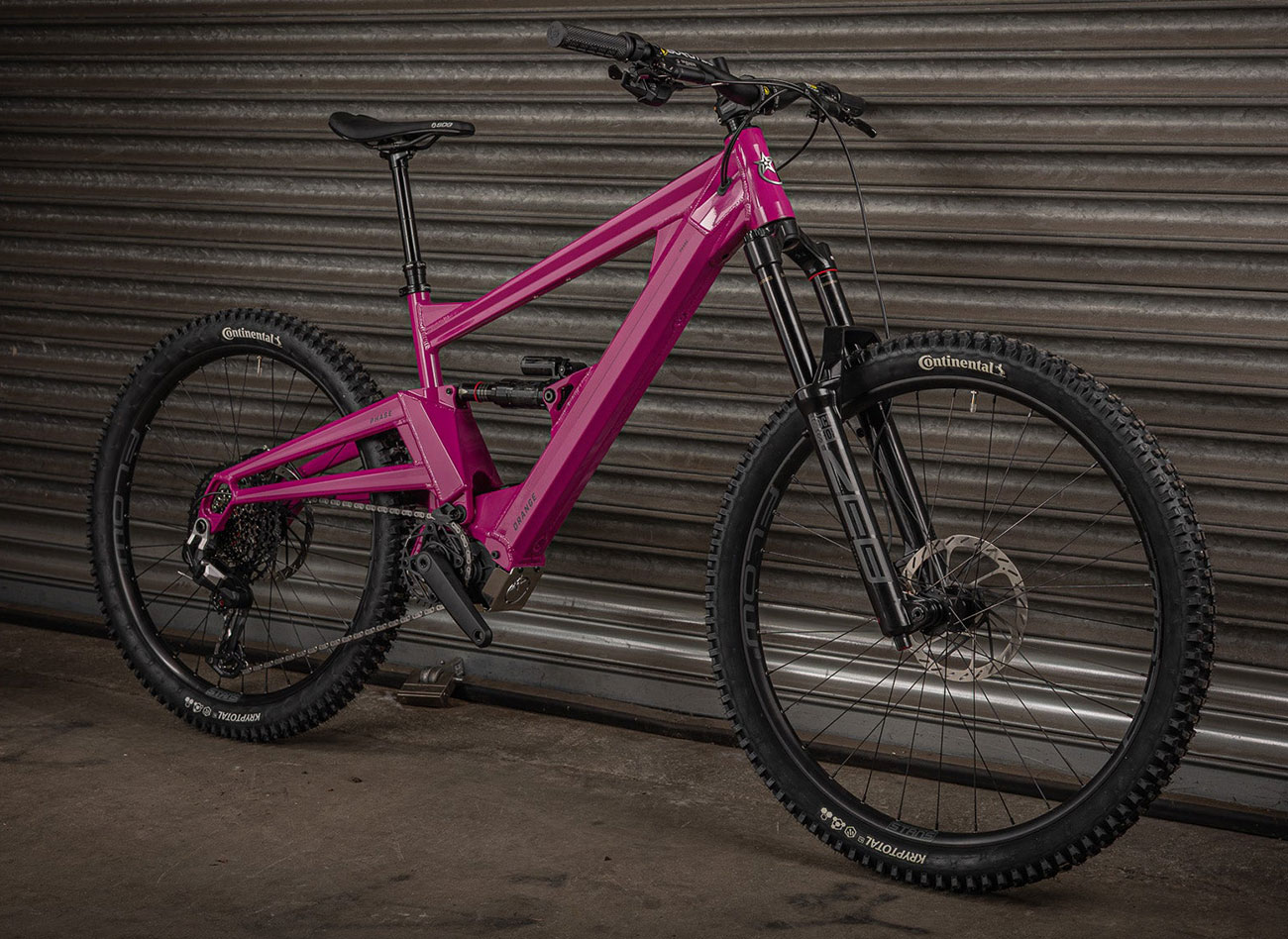

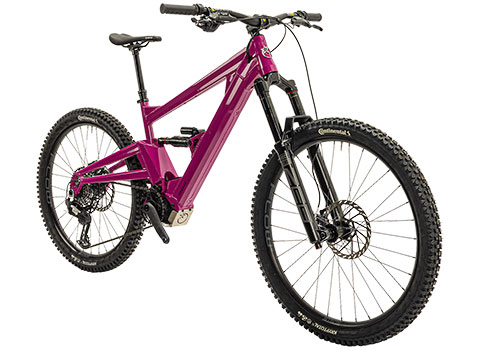

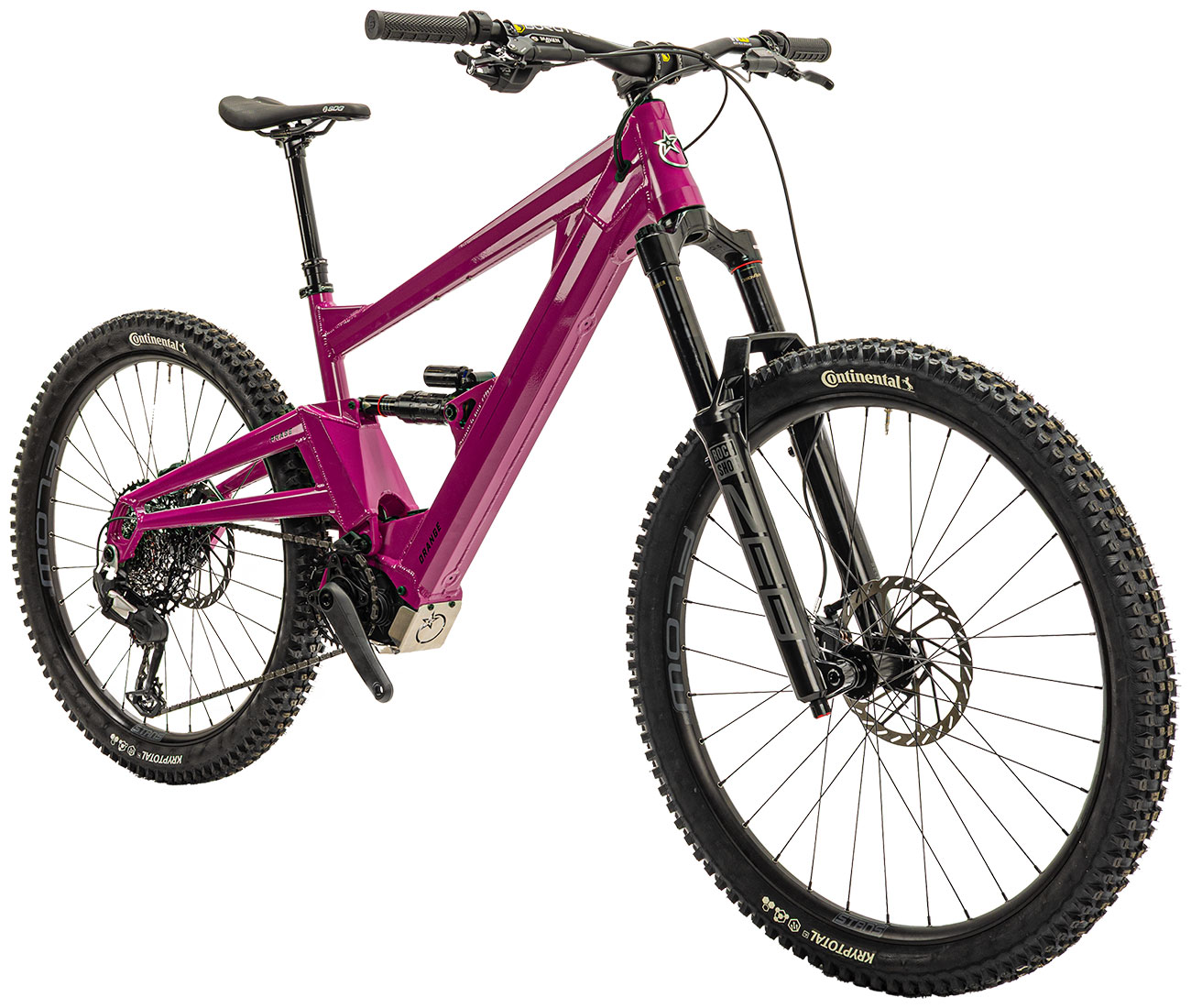

The image above shows the bike in Back to the Fuchsia frame colour
The new Orange Phase features a brand new and improved frame with an Avinox drive system and 800Wh integrated battery, offering more range than ever before.
The Orange Phase is the result of 10 years riding and developing E-bikes. Culminating in what is our finest work to date!
The Orange Phase wields a 64° head angle, 76° seat angle, reduced offset fork, refined reach measurements and a trunnion mounted shock, but it also incorporates Avinox's (DJI) 800Wh battery technology. This all culminates in geometry you can depend on, composure on the most challenging of terrain, better small bump compliance and a bike that will keep going lap after lap.

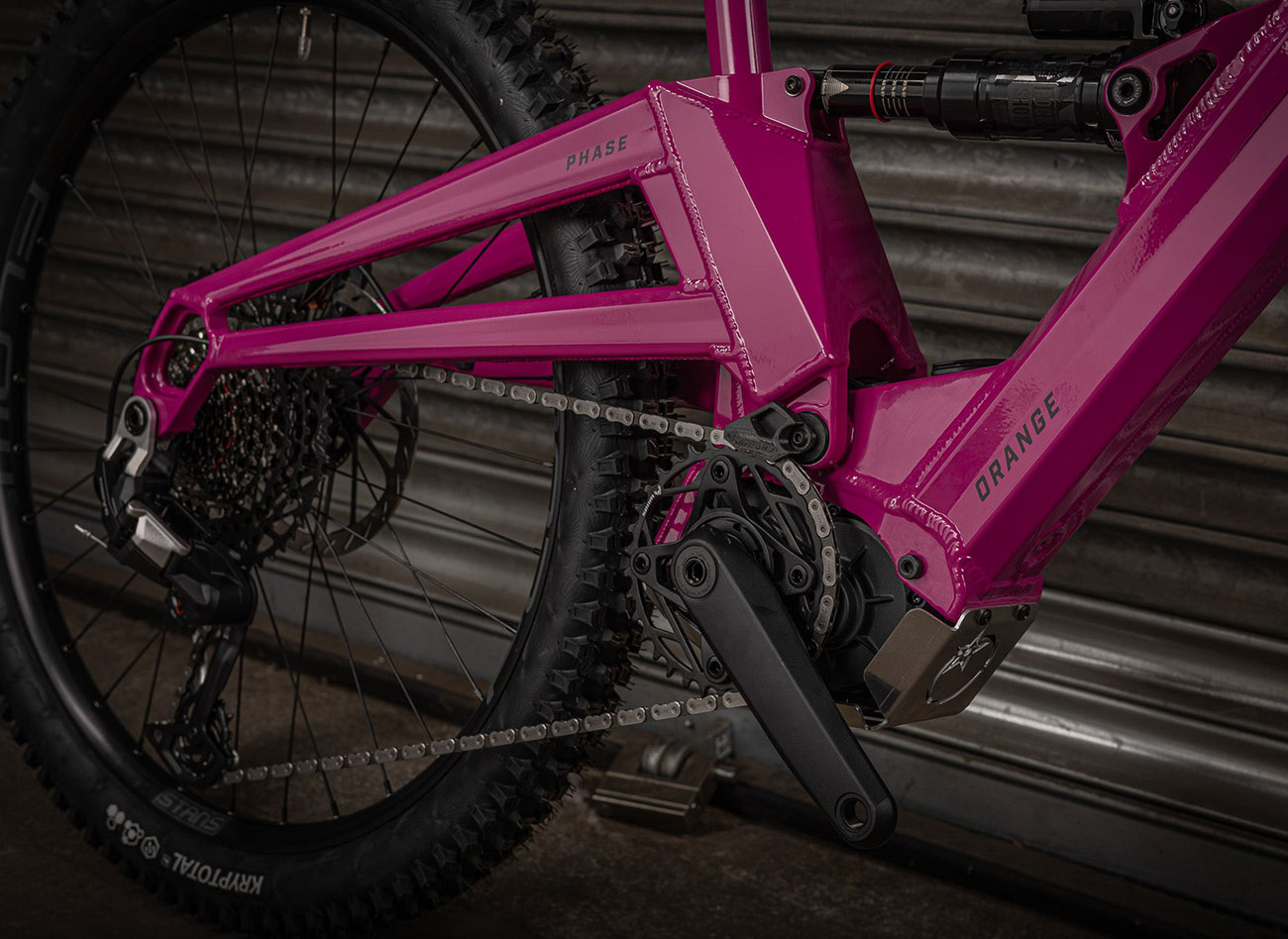

We even sweat the small details so you don't have to, a replaceable aluminium bash guard protects your investment, UDH dropouts make your drivetrain future proof and a 5 year frame warranty with limited lifetime crash replacement policy means you never have to worry.
With MX wheels, 160mm travel front and rear this bike is prepared to go wherever you are willing to take it.
Sunset Cycles offers the 2026 Orange Phase Avinox RS full suspension e-bike with up to 48 months 0% finance and free delivery.
The 2026 Orange PHASE AVINOX range: Phase Avinox RS | Phase Avinox Factory
| Frame and Fork | |
| Frame | 6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: MX - 29/27.5. |
| Fork | Rockshox Zeb Select + 29x160 |
| Swingarm | Bolt Type Allen Key Head (Boost 12 x 148mm Hub) |
| Rear Shock | Rockshox Super Deluxe Select + 205x65 |
| Headset | Cane Creek ZS49/ZS56 |
| Drivetrain | |
| Rear Mech | Sram Eagle 90 Transmission |
| Chain | Sram Eagle 70 Transmission |
| Shifters | Sram Eagle 90 Transmission |
| Cassette | Sram 1270 Eagle Transmission 10-52t |
| Bottom Bracket | DJI Avinox |
| Crankset | Sram Eagle 90 Transmission 165mm 34t |
| Wheel and Tyres | |
| Wheelset | Hope Pro 5 Hubs & Stans Flow S2 |
| Tyres | Continental Kryptotal Soft 2.4 |
| Braking | |
| Brakes | Sram Maven Silver 200/200 |
| Finishing Kit | |
| Stem | Burgtec Enduro 40mm |
| Saddle | SDG Strange Bel Air III |
| Handlebars | Burgtec Ridewide 800 x 30mm |
| Grips | Strange Grappler Lock-On |
| Seatpost | KS Ragei 170mm |
| Seat Clamp | Strange Bolted |
| Power Assist | |
| Battery | AVINOX - DETAILS COMING SOON |
| Drive Unit | AVINOX - DETAILS COMING SOON |
| Control Switch | AVINOX - DETAILS COMING SOON |
| Drive Display | AVINOX - DETAILS COMING SOON |
| Frame Size | Medium | Large | X Large |
| Seat Tube Length | 16" | 17" | 18" |
| A. Head Angle | 64° | 64° | 64° |
| B. Seat Angle (Effective) | 76° | 76° | 76° |
| D. Top Tube (effective) | 625 | 645 | 665 |
| E. BB Height (from ground) | 343 | 343 | 343 |
| BB height (from axles) | -11 | -11 | -11 |
| F. Chainstay | 443 | 443 | 443 |
| G. Head Tube | 130 | 140 | 150 |
| H. Wheel base | 1259 | 1281 | 1303 |
| J. Reach | 464 | 478.6 | 500 |
| K. Stack | 641 | 655 | 659 |
| T. Rear Travel | 160 | 160 | 160 |
| Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. | |||
