Orange 2022 Phase MX Team 29/27.5

Orange 2022 Phase MX Team 29/27.5

Our Price £7,295.00

Save an extra 10% using the SAVE10 voucher code.
Valid for a limited time only and while stocks last!

0% APR finance from £136.78 per month

To apply for finance, add the product to your basket and then select the finance option. Finance is subject to status. Minimum spend applies.

This product is not currently available

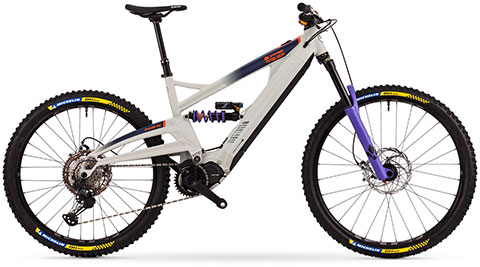

Description: Orange MX Phase Team 29/27.5 2022 Full Suspension E-Bike

The Orange Phase MX is our mixed size wheelset E.P.O model. With a 29” front wheel paired with a 27.5 rear wheel and 170 mm front and 165mm rear suspension travel, we think this makes the Orange Phase MX a strong contender to be our most versatile E.P.O. model to date. The mixed 29/27.5 wheel set has settled in well with its combination of fast rolling, bump absorbing big front wheel combined with the agility of the 27.5 rear makes it a winning combination. It's not just on World Cup DH or EWS bikes, it works well for riders of all disciplines and we now have popular MX models from hardtail through to the Phase MX: Our brand new, big travel eMTB.

The Orange Phase MX features a brand new improved frame and the Shimano EP8 drive system with the 630Wh integrated battery, offering 25% more capacity for even longer rides.

Sunset Cycles offers the 2022 Orange Phase MX Team 29/27.5 full suspension electric-assist mountain bike with up to 48 months 0% finance and free delivery.

Full Specification: Orange MX Phase Team 29/27.5 2022 Full Suspension E-Bike

Frame & Fork
Tubeset 6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: MX - 29/27.5. Rear wheel travel: 165.
Colour Matt Smoke White
Fork Formula Selva S 170mm 29
Rear Shock Formula MOD Coil Shock 230x65
Headset Cane Creek 49mm for Tapered Steerer
Rear Axle Bolt Type Allen Key Head (Boost 148mm Hub)
Wheels & Tyres
Wheelset E13 LG1 EN Plus E-spec 29/27.5
Tyres Michelin DH 22 2.4 29/ DH 34 2.4 27.5
Crankset E13 Helix E-spec 32t 165mm
Chain Device E13 Vario Compact Guide
Rear Mech Shimano XT 12spd
Cassette E13 Helix R 9-50t
Shifters Shimano XT 12spd
Bottom Bracket Shimano EP8 DU Integrated
Chain KMC 12spd
Power Assist
Drive Displays Shimano EM800
Drive Units Shimano EP8
Control Switches Shimano EM800
Brakes Formula Cura 4 203/203
Finishing Kit
Stem Burgtec MK3 Enduro CNC Orange 35mm
Handlebar Burgtec RideWide Enduro 800mm
Grips Burgtec Bartender Pro
Seatpost SDG Tellis 150mm
Saddle SDG Strange Bel Air III
Seat Clamp Strange Bolted
Pedals Not Included

Size Guide: Orange MX Phase Team 29/27.5 2022 Full Suspension E-Bike

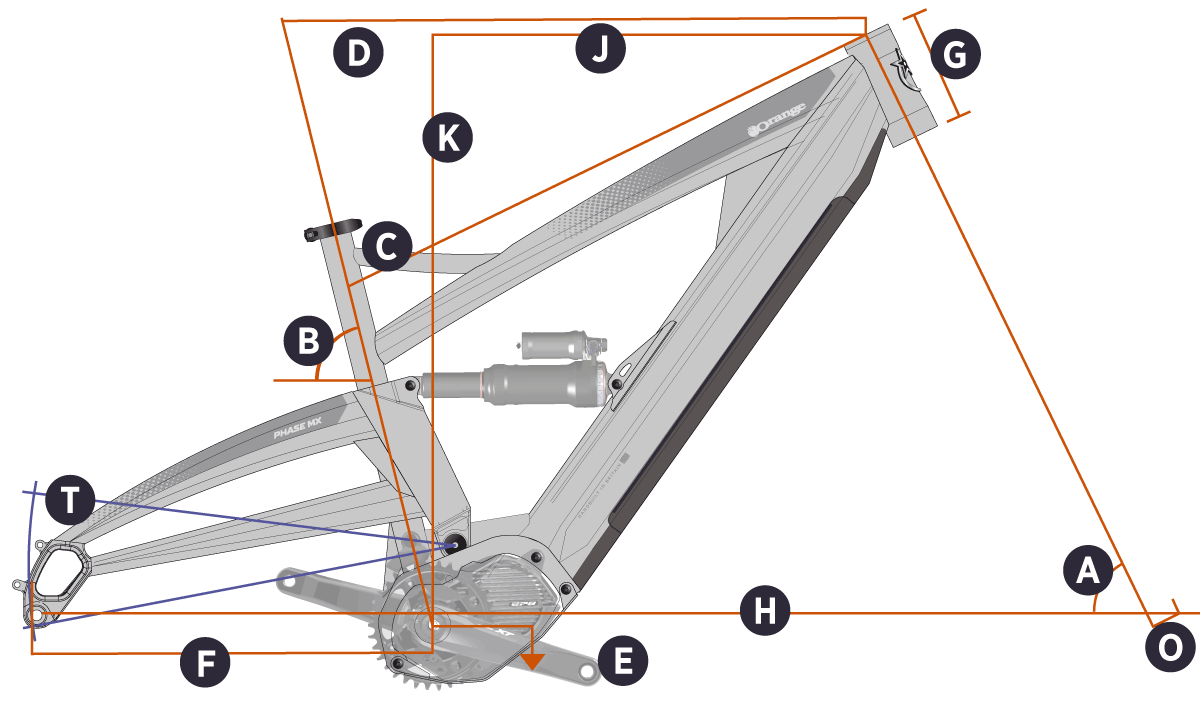

Orange 2022 Phase MX Frame Geometry
Frame Size Medium Large X Large
Rider Height Guidance* 5'3" to 5'8" 5'7" to 6'2" 6'0" to 6'5"
Seat Tube Length 17" 18" 19"
A. Head Angle 64° 64° 64°
B. Seat Angle 76° 76° 76°
C. Top Tube 616 635 655
D. Top Tube (effective) 639 647 662
E. BB Height (from ground) 343 343 343
BB height (from axles -27 -27 -27
F. Chainstay 439 439 439
G. Head Tube 120 120 130
H. Wheel base 1255 1275 1297
J. Reach 463 483 500
K. Stack 649 649 658
O. Fork Offset 44 44 44
T. Rear Travel 165 165 165
Standover 738 760 783
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from ground with 740 mm Ø tyre.
*This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you.
