Sale Price £1,675.00 (Save 20%)
Regular Price £2,095.00

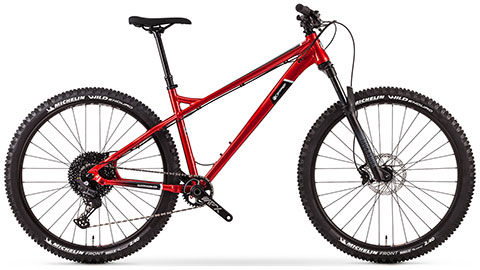

The new Orange Clockwork EVO 29 pushes the 29er model into the hard and fast trail arena. Running a 130mm travel fork, this one's for the fast and loose big wheel hardtail fans out there.
The Orange Clockwork EVO 29 shares the same tidy frame features as its 27.5 inch wheel sibling: neat external routing that tucks the cables cleanly under the top tube and internal stealth cable routing for a dropper post are both nice touches. The sturdy 12x148mm Boost bolt-though rear axle adds strength and rigidity for the 29er wheelset.
Trail centre hardtail, or out and out explorer, it’s up to you. But however you choose to ride the Orange Clockwork EVO 29, it will be a more than worthy trail buddy.
Sunset Cycles offers the 2023 Orange Clockwork EVO 29 S hardtail mountain bike in Candy Red finish with free delivery.
| Frame & Fork | |
| Colour | Candy Red |
| Tubeset | 6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 29. |
| Fork | RockShox 35 Silver TK 130mm 29 |
| Headset | FPD 44mm / 56mm zerostack |
| Rear Axle | Bolt Type Allen Key Head (Boost 12 x 148mm Hub) |
| Wheels & Tyres | |
| Wheelset | WTB ST Light i30 on Strange 29 |
| Tyres | Michelin Wild Enduro Front 2.4 29 |
| Drivetrain | |
| Crankset | Strange Prowheel MPX 170mm Narrow Wide 32t |
| Rear Mech | Shimano Deore 12spd |
| Cassette | Sunrace CSMZ600 11-51t 12spd |
| Shifters | Shimano Deore 12spd |
| Bottom Bracket | Prowheel |
| Chain | KMC 12spd |
| Braking | |
| Brakes | Shimano MT400 |
| Finishing Kit | |
| Stem | Strange Stalk 40mm |
| Handlebar | Strange 1" Rise 780mm |
| Grips | Strange Grappler Lock-On |
| Seatpost | KS Ragei 150/170mm Drop |
| Saddle | WTB Volt SL |
| Seat Clamp | Strange Bolted |
| Frame Size | Medium | Large | X Large |
| Rider Height Guidance* | 5'6" to 5'10" | 5'9" to 6'1" | 6'0" to 6'5" |
| Seat Tube Length | 17" | 18" | 19" |
| A. Head Angle | 65.5° | 65.5° | 65.5° |
| B. Seat Angle | 75.5° | 75.5° | 75.5° |
| C. Top Tube | 625 | 638 | 654 |
| D. Effective TT | 624 | 642 | 667 |
| E. BB Height (axle diff) | -68 | -68 | -68 |
| E. BB Height (from ground) | 296 | 296 | 296 |
| F. Chainstay | 450 | 450 | 450 |
| G. Head Tube | 120 | 130 | 135 |
| H. Wheelbase | 1215 | 1239 | 1261 |
| J. Reach | 455 | 475 | 495 |
| K. Stack | 654 | 663 | 668 |
| O. Fork Offset | 44 | 44 | 44 |
| Stem Length | 50 | 50 | 50 |
| Standover | 676 | 694 | 730 |
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 750 mm Ø tyre. |
|||
| *This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you. | |||
