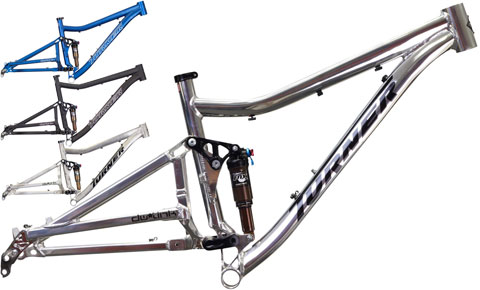

Turner Flux 27.5 (650B) Mountain Bike Frame & Shock
The new Turner Bikes Flux 27.5 frame has been completely redesigned from the ground up to take your pursuit for exceptional trail riding further & faster than ever before. It now features 27.5 inch wheels to get that perfect balance of trail dominating control and the playful agility for technical twisty singletrack. The slacker head angle and lower bb contribute to a package that will eat up every foot of trail without sacrificing the nimble traits of its xc lineage. The updated dw-link kinematics tuned specifically for the 27.5 inch wheels of the Flux ensure that it eats up terrain while maintaining pedalling efficiency. Travel has been bumped up to 120 millimetres with an all new shaped tube set to save weight and be torsionally stiffer. The new Flux 27.5 is not simply a rehash of old ideas; this machine is a perfect example of xc trail bike evolution!
As a cross country bike the new Flux 27.5 carries the same great handling and uncompromised quality that all Turner Bikes are known for. All of the pivot locations have been optimized resulting in snappy acceleration with uninhibited suspension travel. Thanks to the dw-link efficiency, updated geometry, and 27.5 wheels the new Flux can take on another personality of an all-out trail bike without losing the workhorse attitude of a xc rocket. The new Flux 27.5 is unquestionably fun whether poised against a cross country race course or your favourite backyard trail.
FLUX 27.5 SPECS:
•XC tral
•27.5 inch wheels
•120mm of travel
•DW-Link tuned for 27.5" wheels
•New shaped and lighter tubeset
•Journal bearings
•Zerk lubrication fittings
•44mm head tube
•Post mount disc mounts
•142x12 thru-axle
•American made
DW-link - Simultaneously engineered anti-squat and wheel rate curves are the mathematical formulas that make dw-link the world's most efficient and traction-aiding suspension system.
Journal Bearing System - The use of journal bearings, or 'bushings' as some in the bike industry call them, is a perfect solution for the high shock load and abusive limited range of motion that bicycle suspensions put on the pivot system.
Our Journal Bearing system utilizes hard anodized aluminium pivot shafts and Kevlar composite bearings. Since it is not made of steel this system is not capable of rusting and has substantial weight savings over its cartridge style counterparts.
The design of our Journal Bearing System is built into the frame to work seamlessly with the suspension. By not using an off-the shelf bearing we are able make use of the entire width of the pivot area. This eliminates any torsional flex in the back end and is why our bikes have legendary handling & stability.
44 Headtube - This head tube is perfectly sized to work with a tapered steerer fork and the new 44XX lower head set bearing from Cane Creek. Stiffness gains of up to 20% can be had with a tapered steerer fork. With the upper bearing bore now at 44mm, the rider has the ability to run a ZeroStack headset on top. This setup will lower the hand position up to 10mm for more control on steep climbs and fast descents, where front end traction is enhanced through transferring the riders weight over the handle bar. Our 'just right' head tube design allows for the biggest bearing size on the bottom for a long head set life.
Post-Mount Disc Brakes - The biggest reason why Turner Bikes chose to pioneer the use of post-mount rear brake mounting was to eliminate the adapter. All disc brake manufacturers and all new fork designs had already gone to the post-mount calipers due to the ease of set up and the increased rigidity provided. Plus, with the decision to create the post-mount rear dropout we removed two bolts that were doing nothing but adding weight and potential flex. An exceptional design begins with simplicity and common sense.
Threaded Zerk Grease Fittings - Zerks are stainless steel, ultra compact, custom made proprietary fittings to aide in the lubrication and maintenance of all the pivots on a Turner frame. This is one of the key features that makes the ownership of a Turner cost effective over the long haul.
